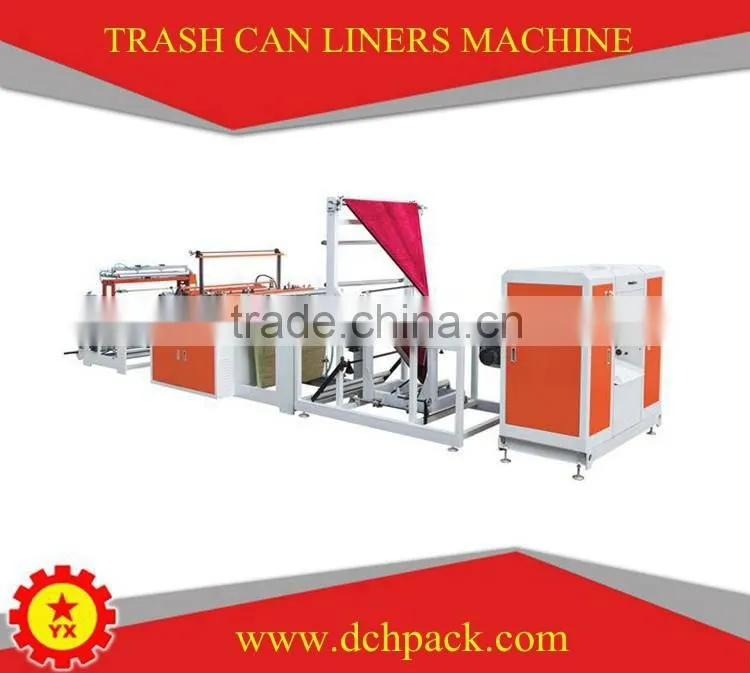

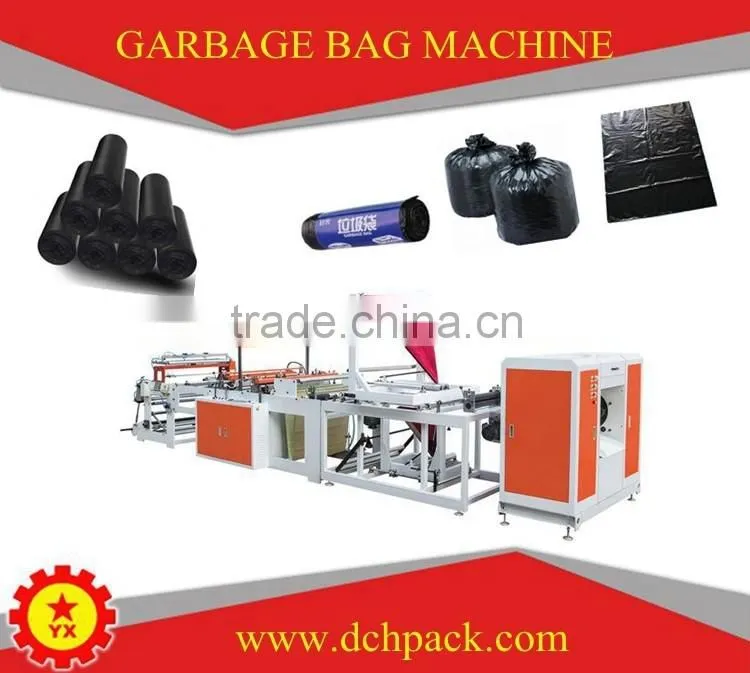

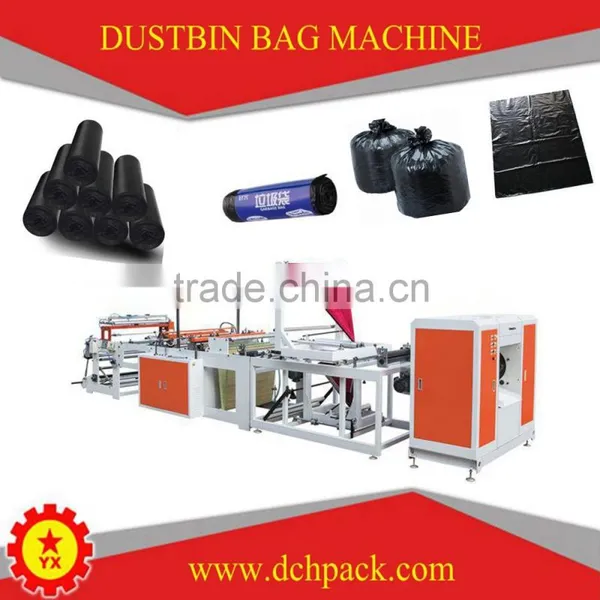

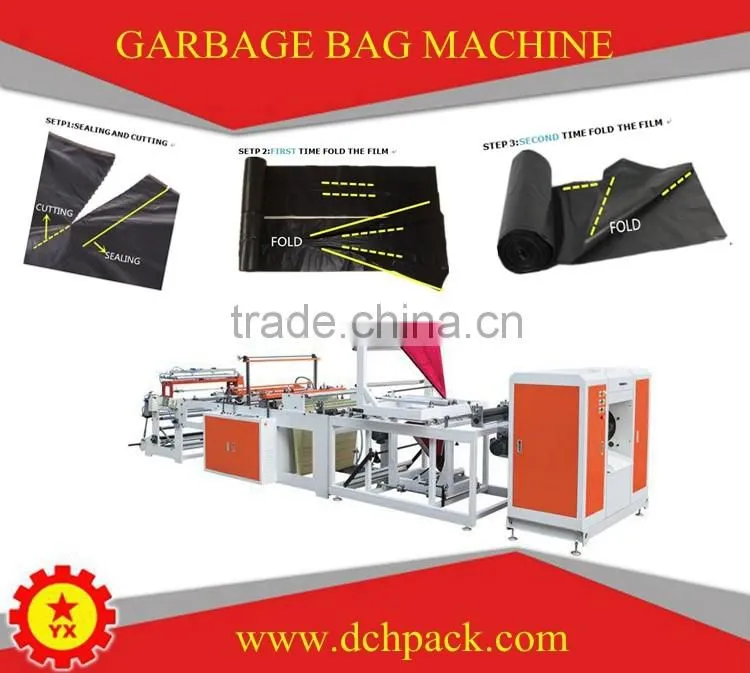

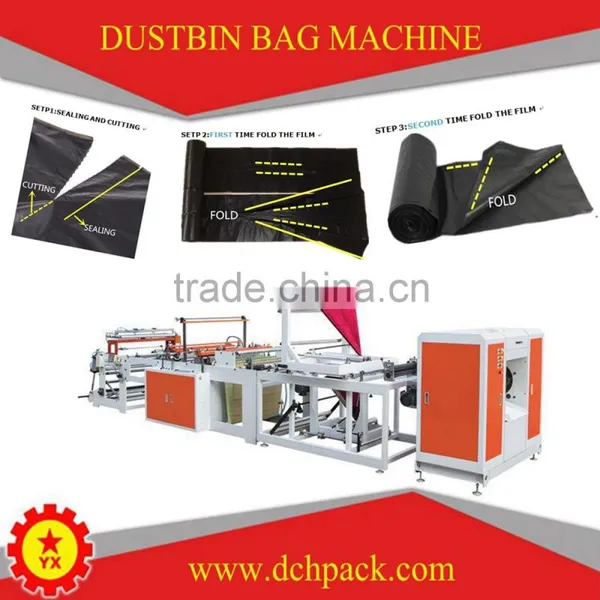

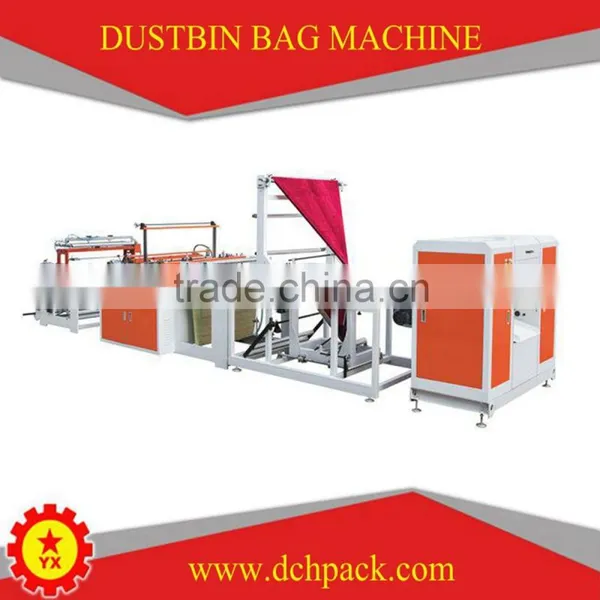

Costomized Sturdy Plastic Roll Dustbin Bag Machine

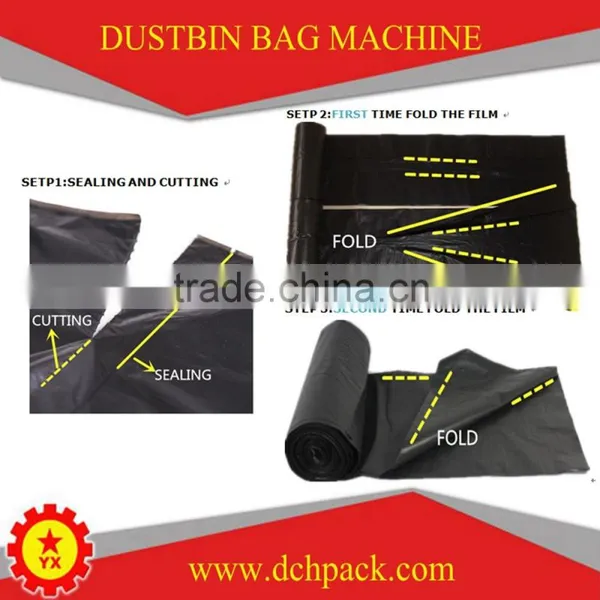

1.Properties and Uses
This bag making machine is applied to making big linkage bags,and fold the film as 3 layer or 4 layer,this machine rewinding bags automatic,without paper-core, we also can increase rope-bag function in this anwhile,the heater of sealing can be off to making table cloth.also can increase rope-bag function in this machine.
Mainly applied to making the bags of PE, PP, PVC, and other hot-melt material film.
2.Machine Advantages
- Servo motor system.
- High speed up to 150 strokes/min.
- Double layer can improve the capacity
- Micro processor based controller with digital display
- Key pad settings for speed, size & count on key board
- Photocell for printed roll
- Tension free web for Strong sealing
- Also available with Double Decker option. (400 bags/min)
- Also available with Stepper System.
3.Technical Parameters
MACHINERY DESCRIPTION:
Bag making width |
320mm |
Bag making length |
400-1500mm |
Bag-making Speed |
120pcs/min |
film of thickness |
0.01-0.04mm |
Width of raw material |
1000mm |
Sealing type |
C folding |
Total power |
9kw |
Power supply |
220V/60Hz |
Weight |
1700kg |
Overall size |
5800X2000X2100mm |
Detail Component of Machine
No. |
Specification |
Brand name |
1 |
Main motor |
China |
2 |
Main machine inverter |
Panasonic Japan |
3 |
Servo Motor |
Panasonic Japan |
4 |
Inverter for feeding roll |
Delta Taiwan |
5 |
Inverter for discharge roller |
Delta Taiwan |
6 |
Inverter for folding device |
Delta Taiwan |
7 |
Motor for folding |
China |
8 |
Inverter for rewinding |
Delta Taiwan |
9 |
Motor for rewinding |
China |
10 |
Temperature Controller |
Taiwan |
11 |
Electric parts |
China |
12 |
Contractor |
China |

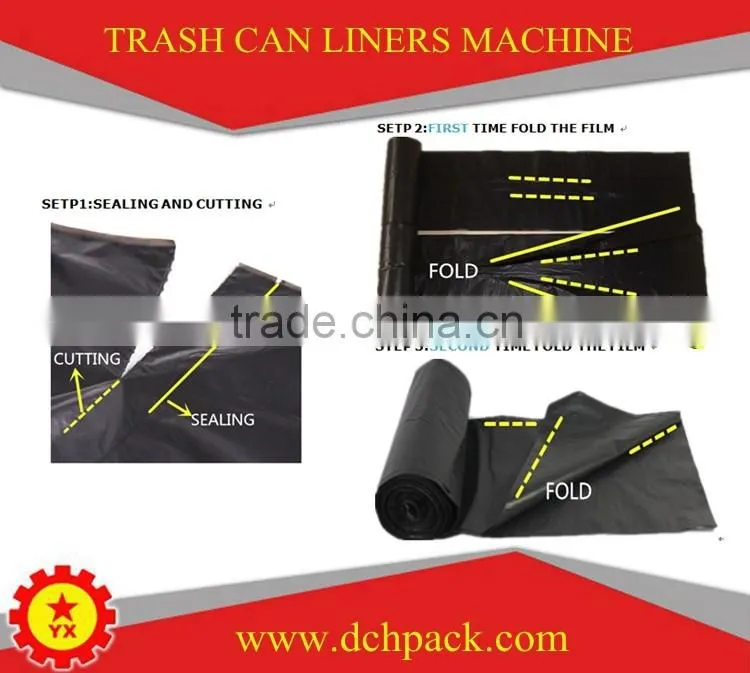

4.Manufacturing Process

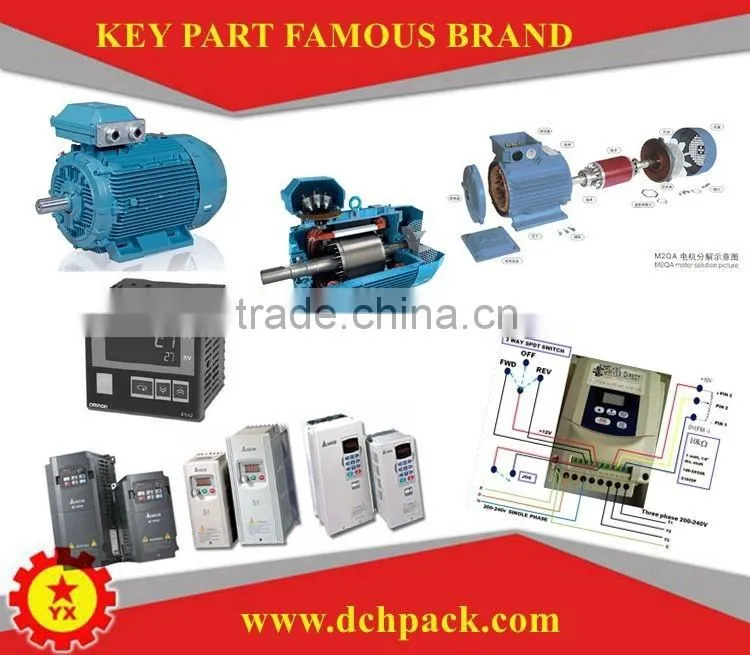

5.Key Part Famous Brand
6. Certificate
7.Container & Loading

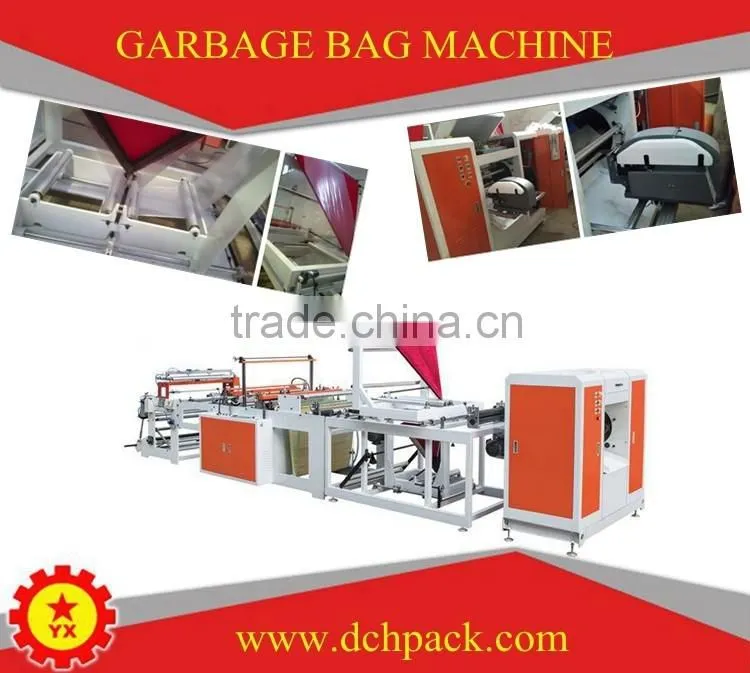

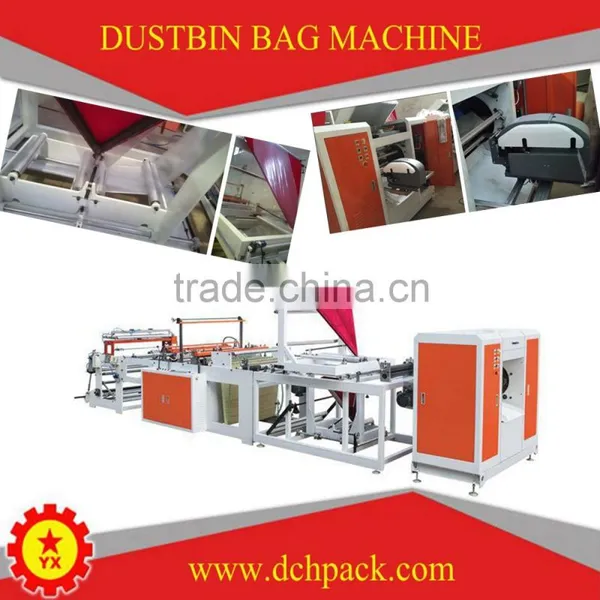

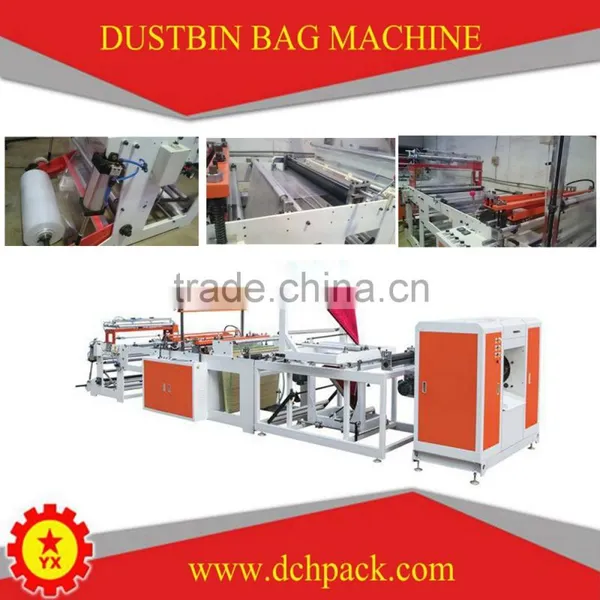

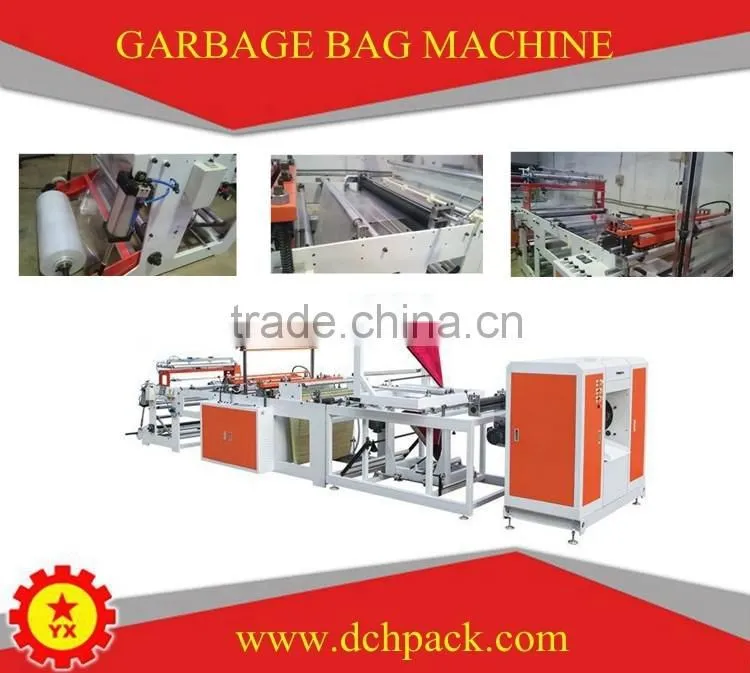

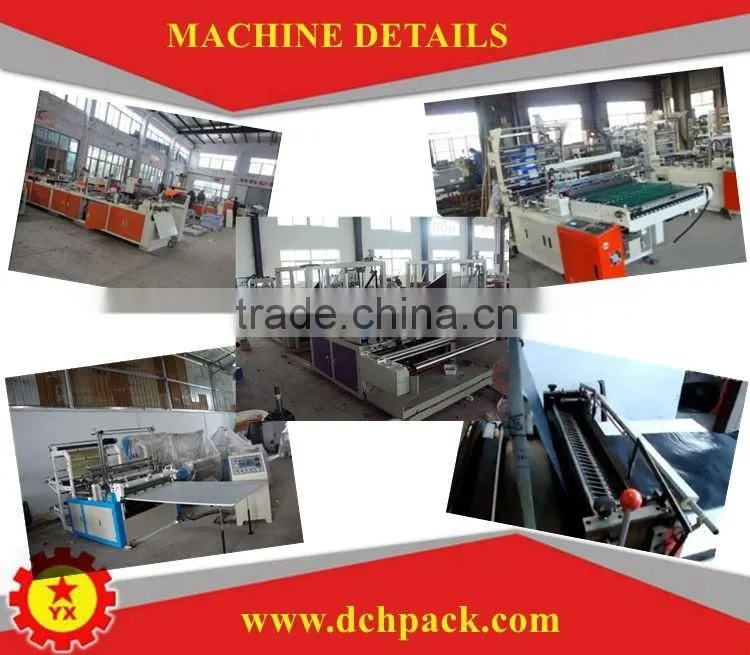

8.Machine Details
9.Business Card
10.FAQ
