Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > Shaping Machine

Shaping Machine

Name: Shaping Machine
Brand: Hising
SKU: 122088087
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Hising

Model Number:

SM-630/SM-660/SM-700/SM-850/SM-1000H

Contact Supplier Request Quote Chat Now

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Hising

Model Number SM-630/SM-660/SM-700/SM-850/SM-1000H

Condition New

Specifications

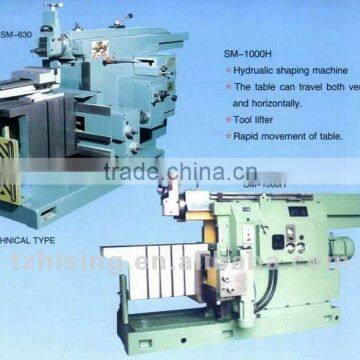

SM-1000H:hydraulic shaping machine;
the table can travel both vertically and horizontally
tool lifter
rapid movement of table

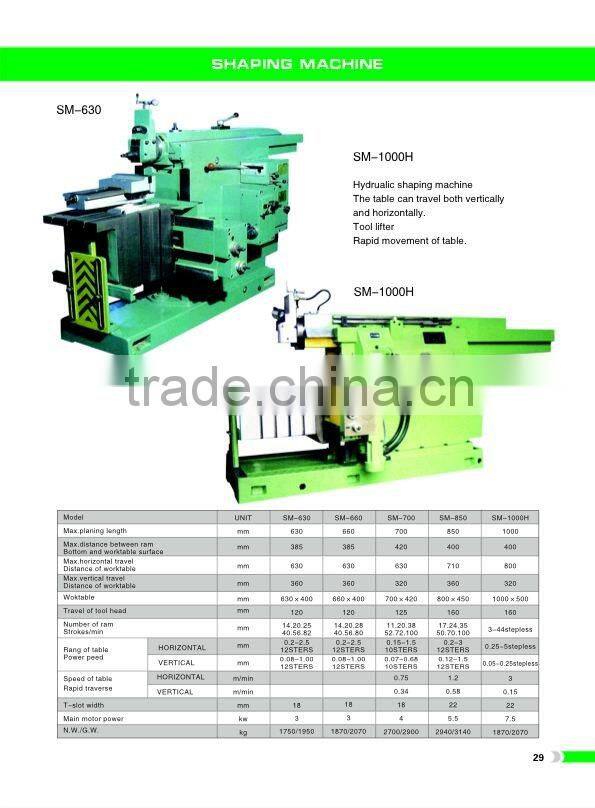

The Specification of Shaping machine, PLEASE SEE THE PHOTO :

suitable for shaping plane and formed surfaces. High productivity can be obtained for shaping plane surface, T-slots and dovetail slots, etc. On narrow and long workpieces.
The ram mechanism adopts the guide unit with torsion-spring internally fixed. During the ram movement the cutting tool can adjusted to an arbirary position.
The total closed cam-ratchet unit is employed in the feed mechanism and rapid travel mechanism of the table featuring change of feed amounts without stopping the machine during cutting. A disk-type overload safety unit is used.
Owing to the adoption of swivel device with cam-curve groove different speeds can be selected arbitrarily.

Model		Unit	SM-630	SM-660	SM-700	SM-850	SM-1000H
Max.planing length		mm	630	660	700	850	1000
Max.distance between ram bottom and worktable surface		mm	385	385	420	400	400
Max.horizontal travel distance of Worktable		mm	630	630	630	710	800
Max.vertical travel distance of worktable		mm	360	360	320	360	320
Worktable		mm	630×400	660×400	700×420	800×450	1000×500
Travel of tool head		mm	120	120	125	160	160
Number of ram strokes/min		mm	14.20.25 40.56.82	14.20.28 40.56.80	11.20.38 52.72.100	17.24.35 50.70.100	3-44stepless
Range of table power feed	Horizontal	mm	0.2-2.5 12STERS	0.2-2.5 12STERS	0.15-1.5 10STERS	0.2-3 12STERS	0.25-5stepless
Range of table power feed	Vertical	mm	0.08-1.00 12STERS	0.08-1.00 12STERS	0.07-0.68 10STERS	0.12-1.5 12STERS	0.05-0.25stepless
Speed of table rapid traverse	Horizontal	m/min			0.75	1.2	3
Speed of table rapid traverse	Vertical	m/min			0.34	0.58	0.15
T-slot width		mm	18	18	18	22	22
Main motor power		kw	3	3	4	5.5	7.5
N.W./G.W.		kg	1750/1950	1870/2070	2700/2900	2940/3140	1870/2070
