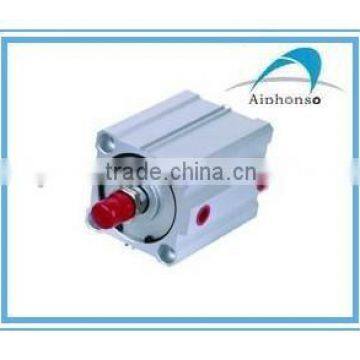

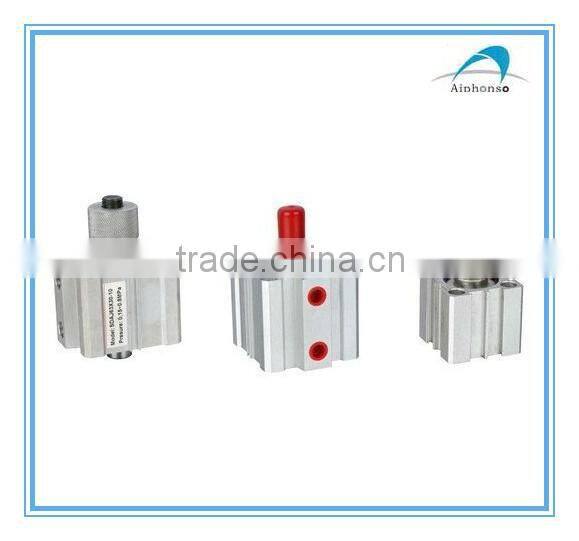

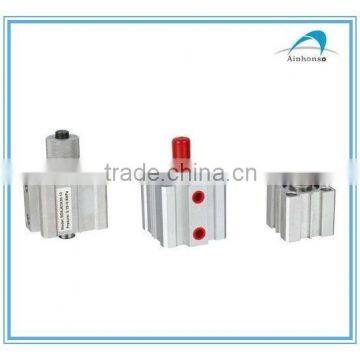

SDA Series Thin Type Compact Pneumatic Cylinder

FOB Price

US$ 3 - 10 / Piece

10 Pieces(Min. Order)

Port ningbo
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Cylinder		Place of Origin	China
Model Number	SDA		Brand Name	AIPHONOSO

Product Description

Specifications

1.good craft
2.use De and Jp technic to design
3.well ratio of quality and price
4.full sets repair parts

Ordering Code

SDA	-	20	×	30	-	S
Model		Bore		Stroke		Magnet Code
SDA:Double action						S:With magnet
SSA:Single action(drawu-out)						Blank:Without magnet
STA:Single action(drawu-in)
SDAD:Double-shaft

Specification

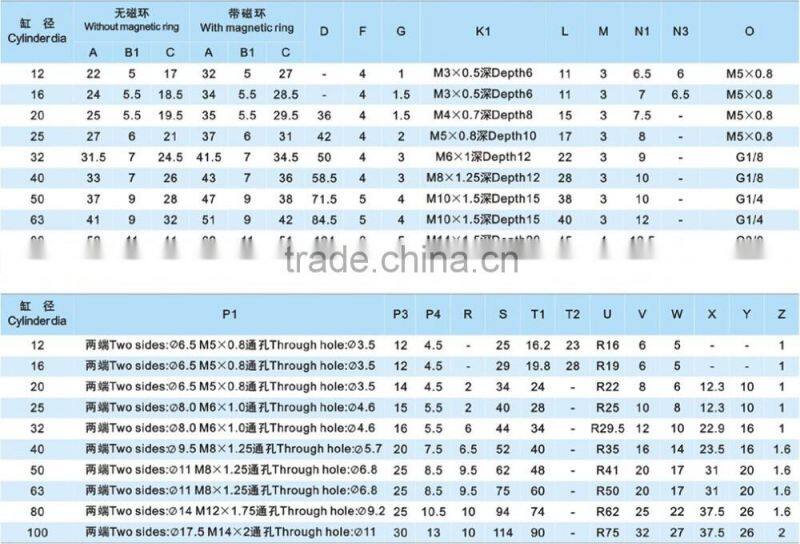

Bore(mm)	12	16	20	25	32	40	50	63	80	100
Action type	Double Action
	Single action(drawu-out/in) type
Working Medium	Air
Pressure Range	1.0~9.0Kgf/cm²
	2.0~9.0Kgf/cm²
Ensured Pressure Resistance	10.5Kgf/cm²
Temperature Range	0~70℃
Speed Range	30~500mm/s						30~350mm/s		30~250mm/s
	100~500mm/s
Buffer Type	Adjustable Buffer
Buffer Stroke	24					32
Joint Pipe Bore	M5×0.8				G1/8"		G1/4"		G3/8"

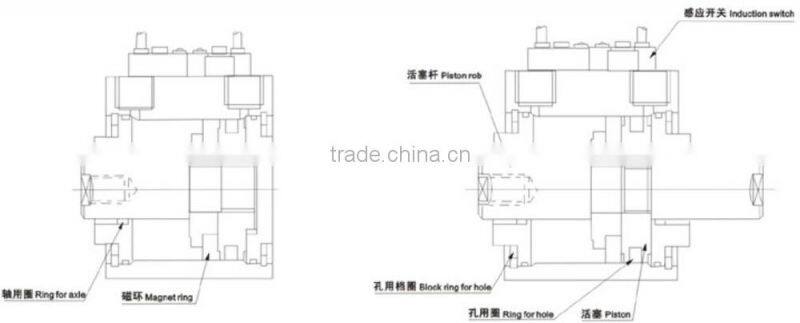

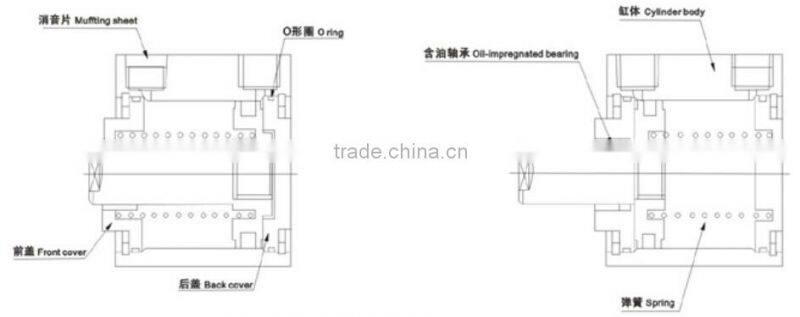

Single action of rod retract / extend:

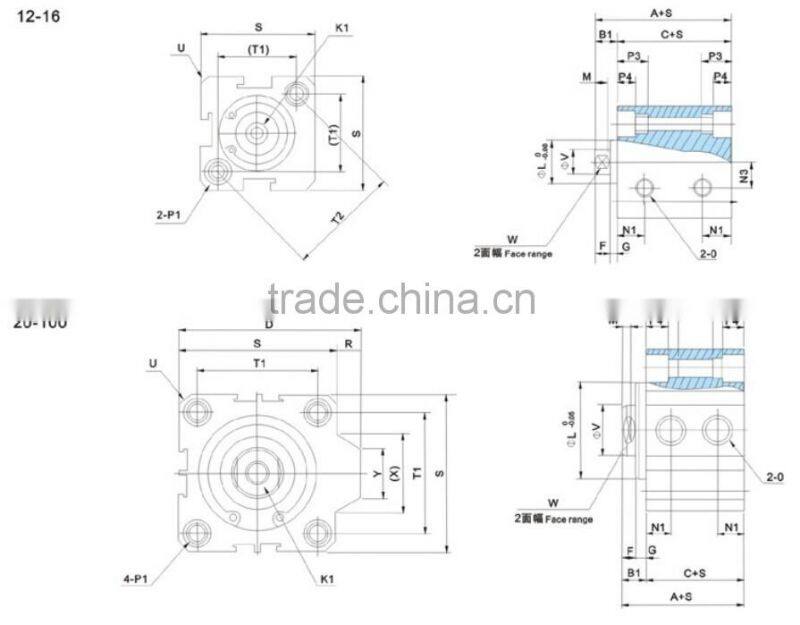

Double action with magetic ring:

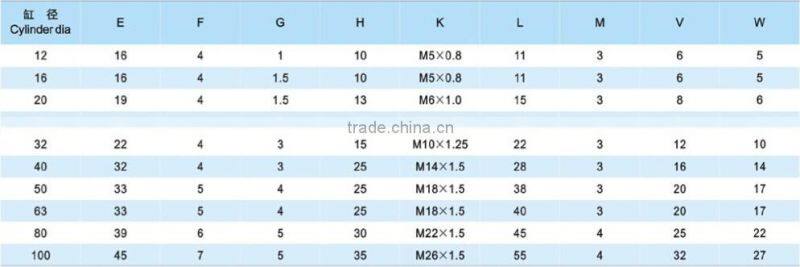

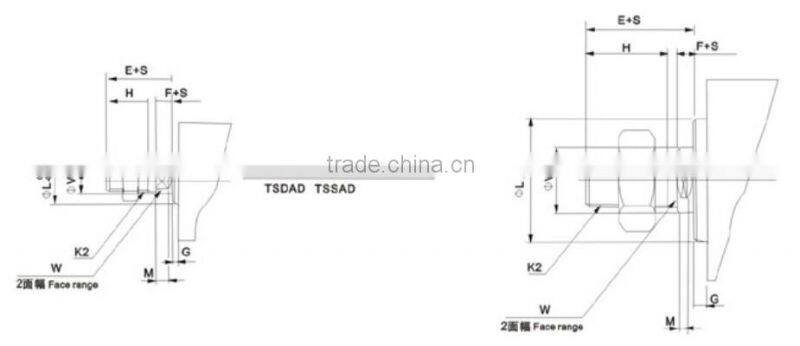

Specification of outside screw thread:

Packaging:

Our Company:

Fenghua Aiphonso Industrial Autaomation CO., LTD

is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.

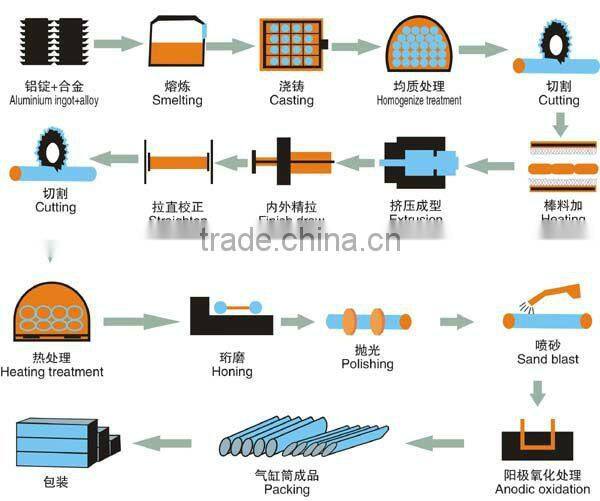

Production Process:

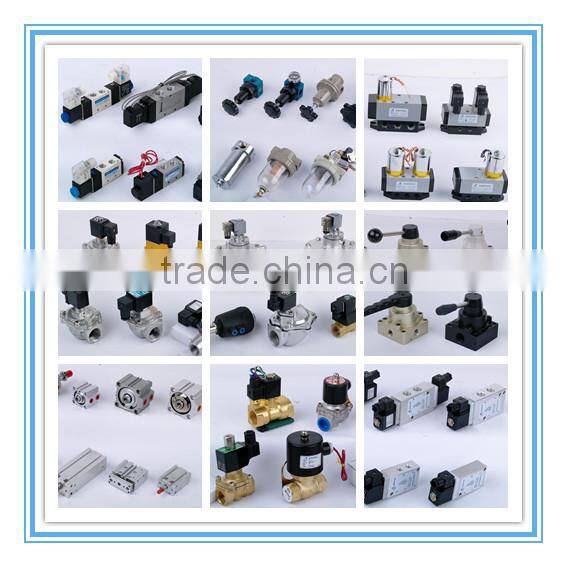

Other Products:
