MAL Series Aluminum Allloy Mini Cylinder
US$ 1 - 50
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Valves
Place of Origin:
Zhejiang, China
Model Number:
MAL series
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SDA/CQ2 Series Compact Pneumatic Cylinder (SMC Type)US$ 5 - 10MOQ: 10 Pieces -
SDA CQ2 Series Compact CylinderUS$ 5 - 10MOQ: 10 Pieces
-
TN Series Double-shaft CylinderUS$ 1 - 50MOQ: 10 Pieces
-
MA ISO6432 Mini CylinderUS$ 5 - 10MOQ: 10 Pieces
-
ISO Standard 6432 Stainless Steel Mini Cylinder MA SeriesUS$ 5 - 10MOQ: 10 Pieces
Type
Valves
Place of Origin
Zhejiang, China
Model Number
MAL series
Brand Name
AIPHONSO or OEM
Specifications
MAL series Aluminum Mini Cylinder1, Double Acting or Single Acting
2. micro pneumatic cylinder

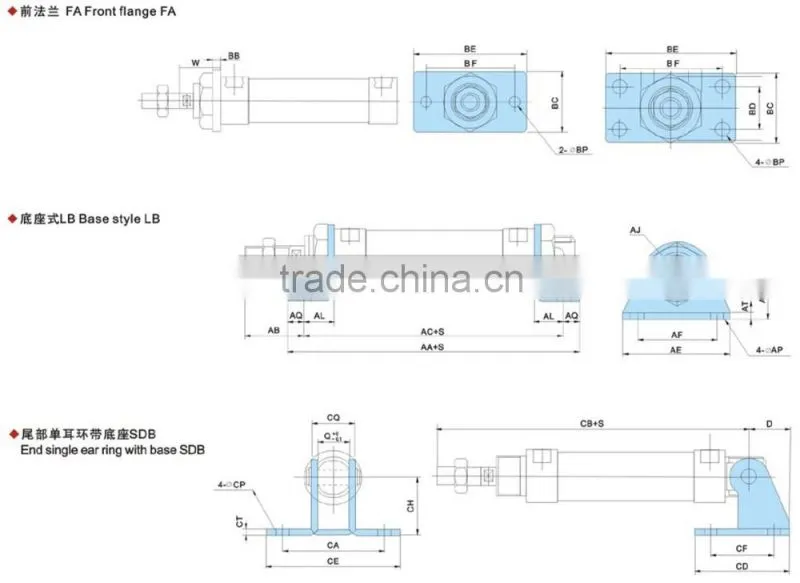

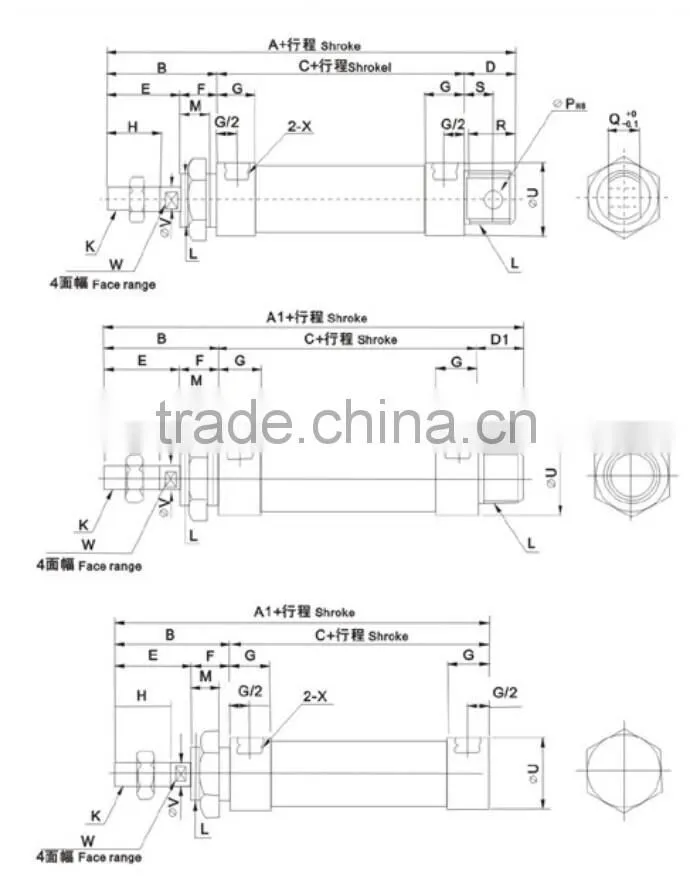

Ordering Code
| MAL | - | U | - | 50 | × | 50 | - | S | - | LB |
| Model | Back Cover Type | Bore | Stroke | Magnet Code | Blank:basic type | |||||
| MAL:Double acting | CA:Fishtail type | S:With magnet | LB:front and back fixed type | |||||||
| MSAL:Single acting | CM:Rounded type | Blank:Without magnet | FA:front flange type | |||||||
| U:Flat-end type | SDB:back single swinging type | |||||||||

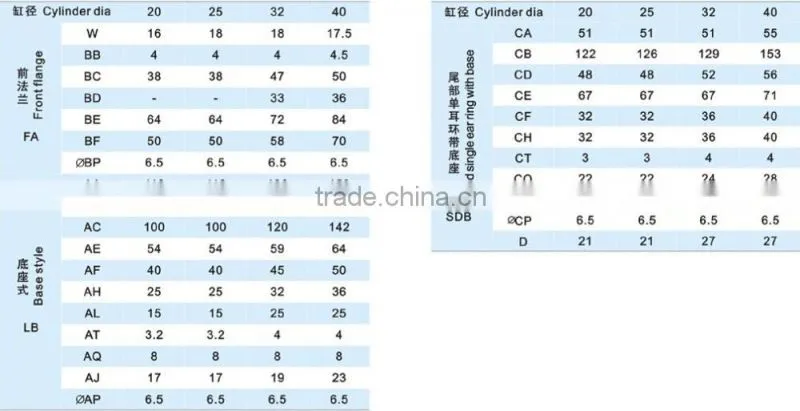

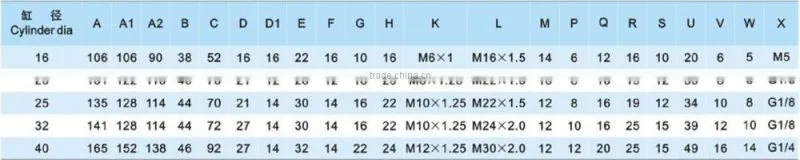

Specification
| Bore(mm) | 16 | 20 | 25 | 32 | 40 |
| Action type | Double Action or Single Action | ||||
| Working Medium | Air | ||||
| Pressure Range | 1.0~9.0Kgf/cm² | ||||
| Ensured Pressure Resistance | 13.5Kgf/cm² | ||||
| Temperature Range | 0~70℃ | ||||
| Speed Range | 30~800mm/s | ||||
| Buffer Type | Buffer Spacer | ||||
| Buffer Stroke | 24 | 32 | |||
| Joint Pipe Bore | M5 | G1/8 | |||
Packaging:
Our Company:
Fenghua Aiphonso Industrial Autaomation CO., LTD
is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.
