CQ2 Series Compact Cylinder/Slim Cylinder

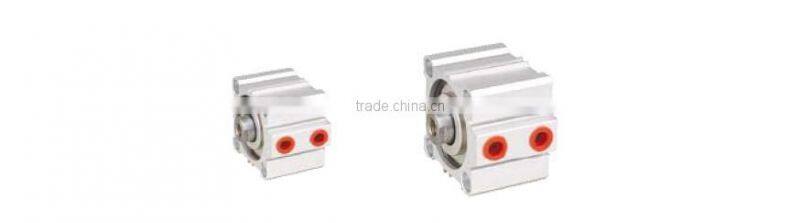

CQ2 Series Compact Cylinder/Slim Cylinder photo-1
US$ 5 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Type:
Cylinder
Place of Origin:
Zhejiang, China
Model Number:
CQ2
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Type Cylinder
Place of Origin Zhejiang, China
Model Number CQ2
Brand Name AIPHONSO

Specifications

Compact Cylinder/Slim Cylinder SDA Series
1, Cylinder for electric pattern sewing machine.
2, Small bore compact cylinder.

CQ2 Series Compact Cylinder/Slim Cylinder







Ordering Code



CQ2 - B 12 × 10 - D
Model   Installation Bore   Stroke   Action
    A:Double end internal thread   S:Single action(draw-out)
    B:Through hole       T:Single action(draw-in)
              D:Double action





Specification





Bore(mm) 12 16 20 25 32 40 50 63 80 100
Action type Double Action/Single Action(draw-in/out)
Working Medium Air
Max. Pressure  0.99MPa
Ensured Pressure Resistance 1.5MPa
Temperature Range 5~60℃
Speed Range Internal Thread(Standard),Male Screw(Optional)
Buffer Type None
Joint Pipe Bore M5×0.8 G1/8" G1/4" G3/8"





Packaging:

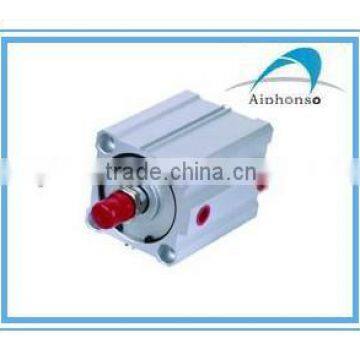

CQ2 Series Compact Cylinder/Slim Cylinder

Our Company:



Fenghua Aiphonso Industrial Autaomation CO., LTD

is a professional manufacturer of pneumatic components,solenoid valves, cylinders,fittings and so on. It has more than 100 employees and covers an area of over 4,000 square meters.Technology-oriented, quality-based and continual quality improvement make it capable of passing ISO9001:2000 Quality System Certification .Our Products are well sold in Southeast Asia,the Middle East and other regions.



Production Process:







Other Products:



  CQ2 Series Compact Cylinder/Slim Cylinder
