Help CenterDouble Rod Cylinder-TN Double Shaft Pneumatic Cylinder
Related Products
-
Stainless SteelMini, MA CylinderUS$ 3 - 15MOQ: 10 Pieces -
Airtac Cylinder Pneumatic Component Aluminum Mini CylinderUS$ 5 - 16MOQ: 10 Pieces
-
China Manufacture FESTO DNC Pneumatic CylinderUS$ 10 - 500MOQ: 10 Pieces
-
ISO15552 Standard Festo Pneumatic Cylinder Festo Type DNC Series Pneumatic Cylinder Made in ChinaUS$ 10 - 100MOQ: 1 Piece
-
SDA Series Compact Pneumatic Air Cylinder HOT SAILUS$ 3 - 10MOQ: 10 Pieces
Specifications
1.TN Series Twin Rod Pneumatic Cylinder2.Normally bore size: 10MM, 16mm, 20mm, 25mm, 32mm
3.Best price
4.Good delivery
TN series cylinder
1) Working medium:filtered air
2) Action pattern: double acting
3) Operating pressure range: 0.1-1.0MPa(1-9Kgf/cm2)
4)Guarantee pressure:1.5MPa(13.5 Kgf/cm2)
5) Ambient temperature: -5~70°C
6) Operating speed: 100-500mm/s
7) Mounting type:basic,FA,FB,CA,CB,LB,TC,TC-M
8) Joint pipe bore: G1/8"-1/2"
9) Cushion: bumper

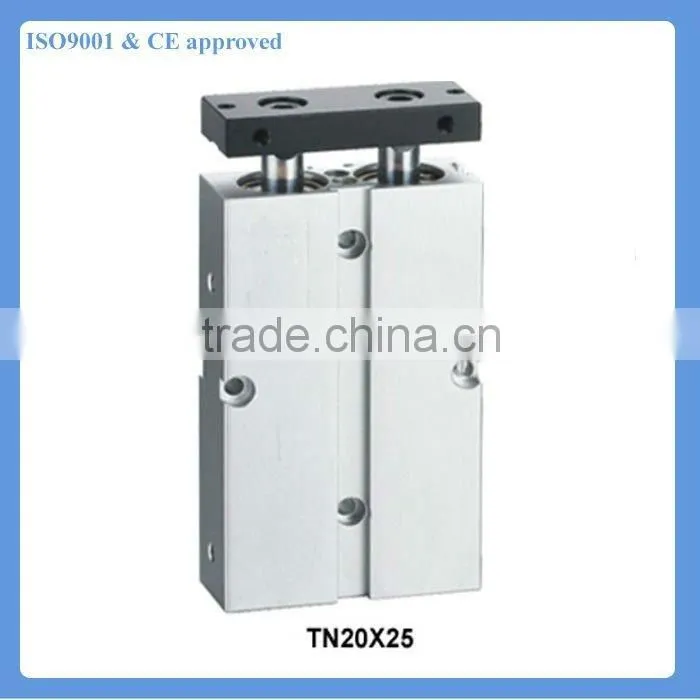

TN - 20 × 50 - S -
↓ ↓ ↓ ↓
Type Bore size Stroke Magnetic
pneumatic and hydraulic damping cylinder/Air and liquid cylinder

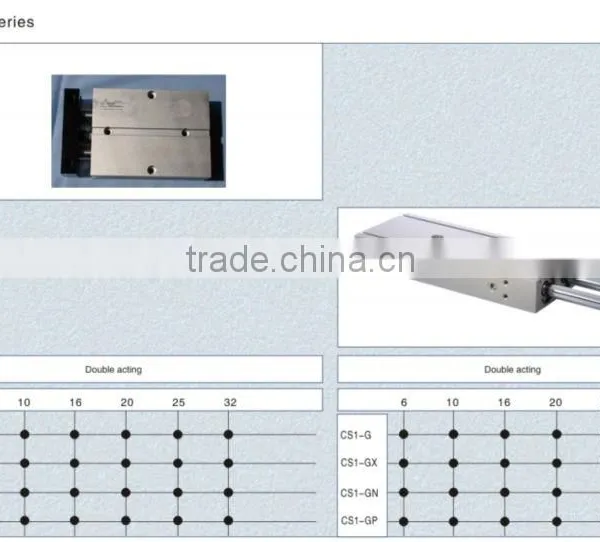

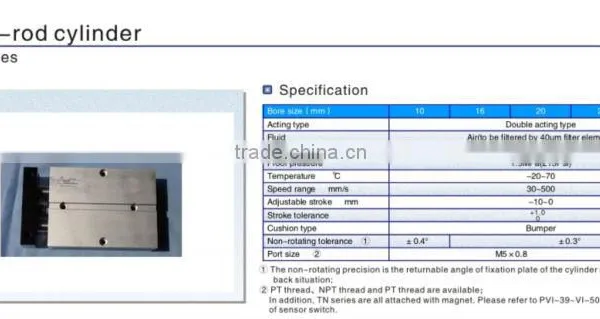

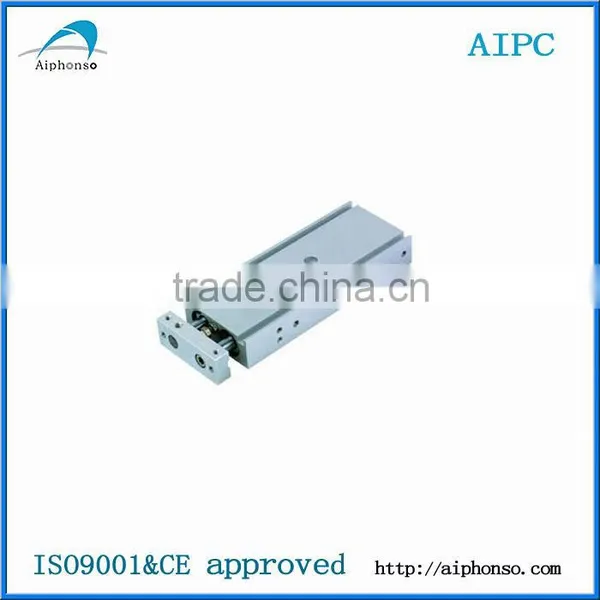

TN Series Twin-rod Cylinder
Bore |
10 |
16 |
20 |
25 |
32 |
|
Motion Pattern |
Double Action |
|||||
Working Medium |
Air |
|||||
Operating Pressure Range |
1.0~9.0kgf/cm2 0.1~0.9Mpa 1~9Bar |
|||||
Ensured Pressure Resistance |
10.5 kgf/cm2 1.05Mpa 10.5Bar |
|||||
Operating Temperature Range |
0~70°C 32~158F |
|||||
Operating Speed Range |
100~500mm/s |
|||||
Joint Pipe Bore |
M5×0.8 |
G1/8” |
||||
Stroke
Bore |
Standard Stroke |
Max. Stroke |
Permissible Stroke |
10 |
10 20 30 40 50 60 70 |
70 |
100 |
16 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
20 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
25 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
32 |
10 20 30 40 50 60 70 80 90 100 125 150 |
150 |
200 |
