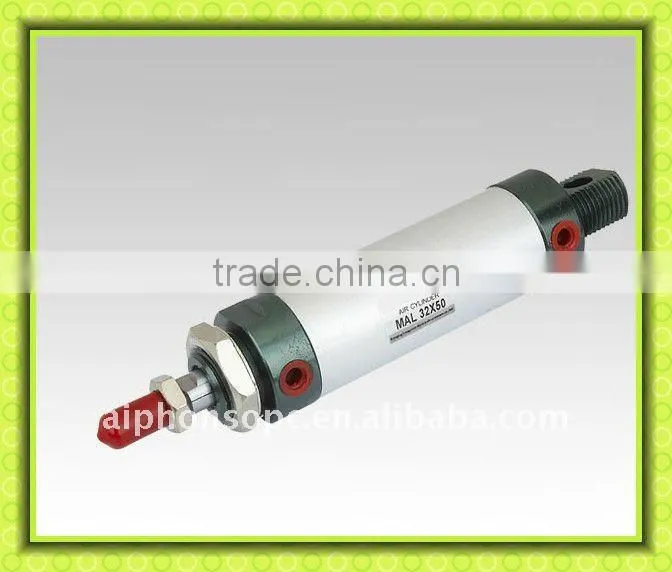

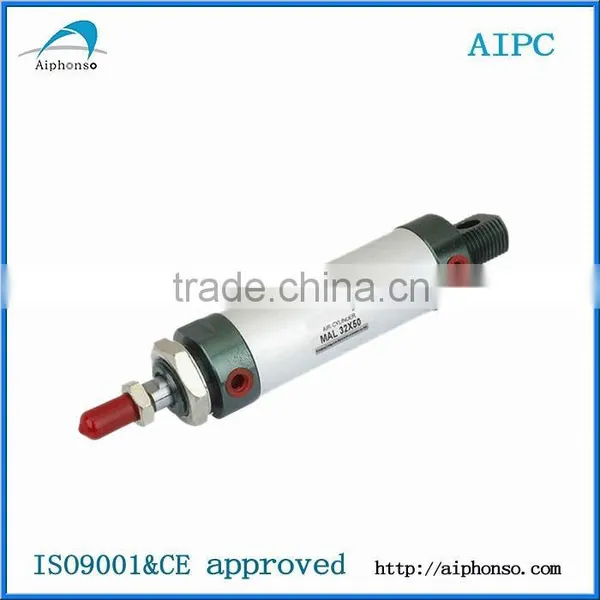

Airtac Cylinder Pneumatic Component Aluminum Mini Cylinder

Name: Airtac Cylinder Pneumatic Component Aluminum Mini Cylinder
Brand: Aiphonso
SKU: 122087815

US$ 5 - 16 MOQ: 10 Pieces

Key Specifications

Standard or Nonstandard:

Standard

Structure:

Piston Cylinder

Power:

Pneumatic

Fenghua Aiphonso Industrial Automation Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo or Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Standard or Nonstandard Standard

Structure Piston Cylinder

Power Pneumatic

Body Material Aluminum

Maximum Stroke 600

Shaft Diameter 32

Place of Origin Zhejiang, China

Model Number MA MAD MAJ

Brand Name Aiphonso

Specifications

Stainless Mini Cylinder
1.Doule action or single action
2.MA /MALseries
3.Mini cylinder
4.Aluminum alloy or stainless steel

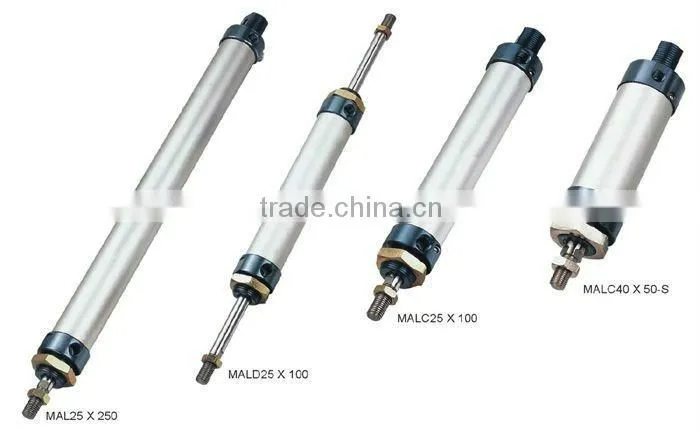

Aluminum Alloy Mini MAL Cylinder
)bore from 16mm~40mm, stroke from 25mm~500mm
2)ISO6432 MAL series pneumatic air cylinder

Aluminum Alloy Mini MAL Cylinder
1) Working medium:filtered air
2) Action pattern: double acting

3) Operating pressure range: 0.1-1.0MPa(1-9Kgf/cm2)
4)Guarantee pressure:1.5MPa(13.5 Kgf/cm2)

5) Ambient temperature: -5~70°C
6) Operating speed: MAL30-800mm/s Others50-800mm/s

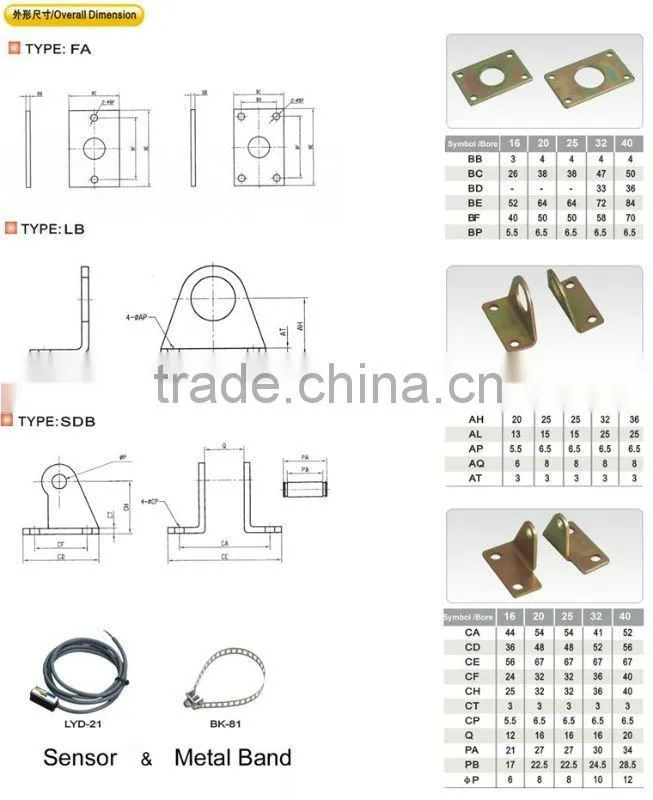

7) Mounting type:basic,FA,LB,SDB

8) Joint pipe bore: G1/8" G1/4"
9) Cushion: adjustable buffer

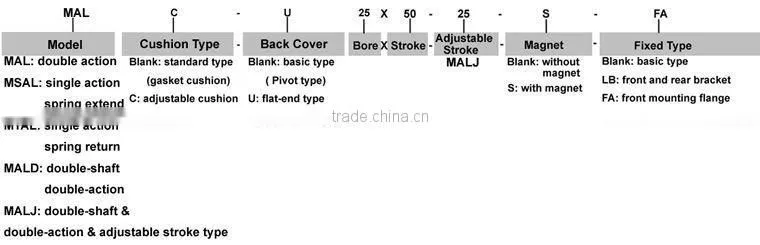

MAL - 50 × 50 - S - FA

↓ ↓ ↓ ↓ ↓

Type Bore size Stroke Magnetic Mounting type

Specification:

Bore (mm)	16	20	25	32	40
Operation	Double action or single action
Fluid	Air
Mounting	Basic FA LB SDB
Operating pressure	1.0 ~ 9.0 Kgf/cm2
Proof pressure	13.5 Kgf/cm2
Operating temperature	0 ~ 70C
Operating piston speed	50 ~ 800 mm/s
Cushioning	Rubber bumper
Port size	M5×0.8	G1/8
