XL6232G Universal Swivel Head Milling Machine

XL6232G Universal Swivel Head Milling Machine thumbnail-1
XL6232G Universal Swivel Head Milling Machine photo-1
US$ 6,500 - 9,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TZHISING
Contact Supplier Request Quote Chat Now
Tengzhou Hising Machine Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Shandong, China
Brand Name TZHISING
Model Number XL6232G
Type Universal
CNC or Not Normal
Voltage Customer Requirement
Power(W) 2.2KW
Dimension(L*W*H) 1960X1520X1730MM
Weight 1620kg
Certification ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Specification of XL6232G universal swivel head milling machine:





SPECIFICATION

Unit

XL6232G

Spindle taper



7:24 ISO40

Distance from horizontal spindle to worktable

mm

120-490

Distance from horizontal spindle to supporting

mm

0-500

Spindle speed range

r/min

35-1600

Swivel angle of swivel head



360°

Worktable size

mm

1250×320

Worktable travel(Longitudinal/Cross/Vertical)

mm

800/320/370

Worktable longitudinal/cross power feed

mm/min

15-370 (8steps) 540(max.)

Worktable elevating power feed

mm/min

560

T-slot No./width/distance of table

mm

3/14/70

Main motor

kw

2.2

Motor for rapid device of table

w

750

Motor of lifted table

w

750

Motor of cooling pumps

w

90

Speed of cooling pumps

L/min

25

N.W./G.W.

kg

1620/1720

Overall dimension

mm

1960×1560×1730



 Features of XL6232G universal swivel head milling machine:

 X/Y axis Ball Screw Drive;

 Can realize vertical,horizontal milling two processing function;
 Can be used for processing shell and mould.

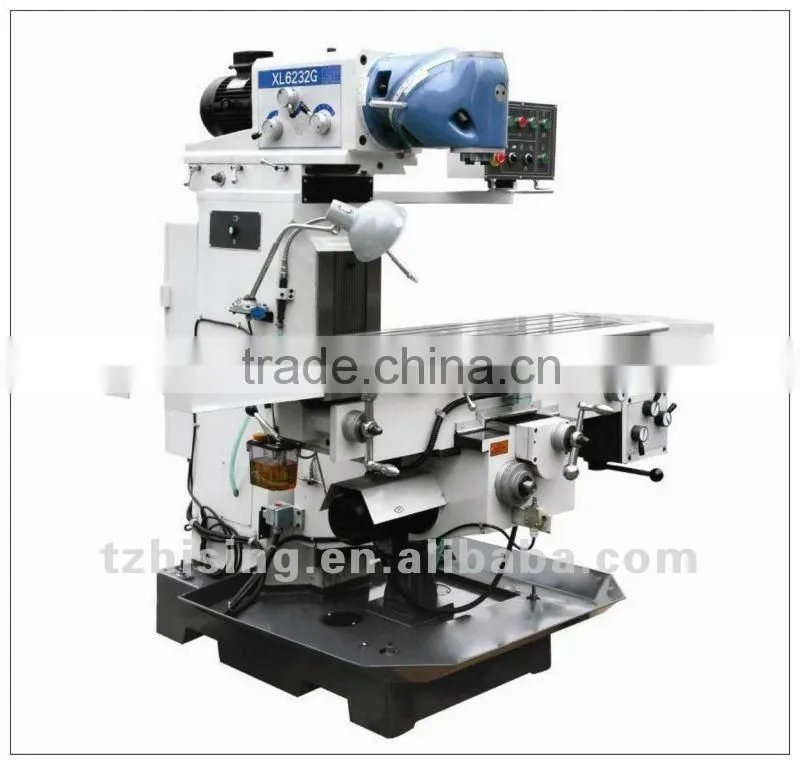

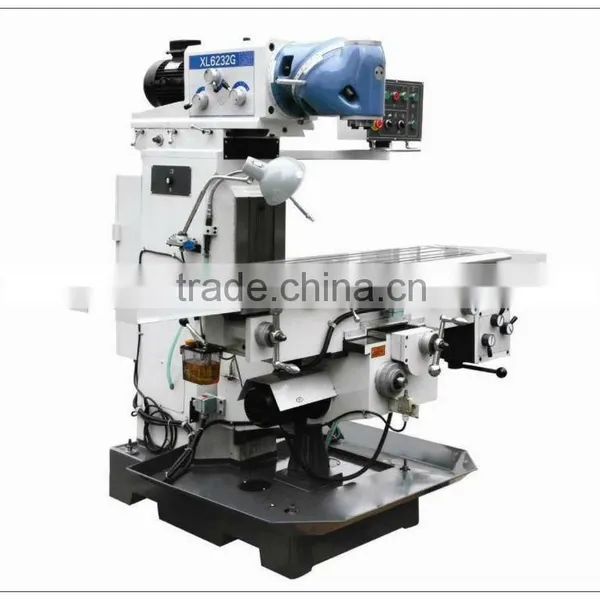

  Photos of  XL6232G universal swivel head milling machine:XL6232G universal swivel head milling machine
