Home > Manufacturing & Processing Machinery > Machine Tools > Milling Machine > XL7036 BED TYPE Vertical Milling Machine
XL7036 BED TYPE Vertical Milling Machine
US$ 11,580 - 19,980
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TZHISING
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Universal Milling Machinery for SaleUS$ 1 - 4,900MOQ: 1 Set -
Universal Milling Machine Price With Swivel Milling Table for SaleUS$ 14,300 - 17,600MOQ: 1 Set
-
Universal Swivel Head Milling Machine UM1480A From ChinaUS$ 15,440 - 17,600MOQ: 1 Set
-
HM1460 DRO China Low Cost Fraiseuse UniverselleUS$ 1 - 8,000MOQ: 1 Set
-
X718 Bed Type Milling Machine With Table Size 2800x500mmUS$ 45,000 - 59,000MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
TZHISING
Model Number
XL7036
Type
Vertical
CNC or Not
Normal
Voltage
Customer Requirement
Power(W)
3.7KW
Dimension(L*W*H)
2220X1790X2340MM
Weight
2000KG
Certification
ISO9001:2008
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Specification of XL7036 BED TYPE Vertical Milling Machine:
SPECIFICATION |
Unit |
XL7036 |
Spindle nose taper |
ISO 40 |
|
Spindle travel |
mm |
150 |
Sleeve feed |
mm/r |
0.04/0.08/0.15 |
Distance from vertical spindle to column |
mm |
450 |
Distance from vertical spindle to table |
mm |
100-600 |
Spindle speed range |
r/min |
80-5440/10 |
Worktable size |
mm |
1250×360 |
Worktable travel |
mm |
1000×420 |
Worktable longitudinal/cross power feed |
mm/min |
15-370/540(max.) |
Worktable elevating power feed |
mm |
|
T-slot of table (No./width/distance) |
mm |
3/18/80 |
Main motor |
kw |
3.7 |
Motor of table power feed |
w |
750 |
Up/down motor of headstock |
w |
550 |
Motor of cooling pumps |
kw |
90 |
Speed of cooling pumps |
L/min |
25 |
Overall dimension |
mm |
2220×1740×2340 |
N.W./G.W. |
kg |
1820/2000 |

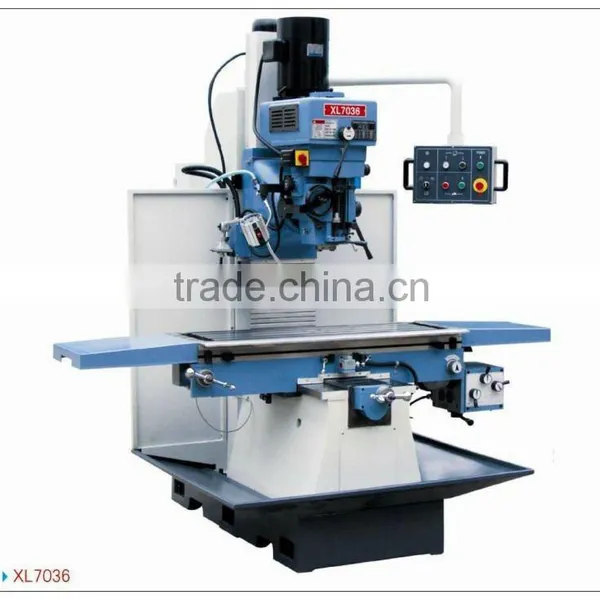

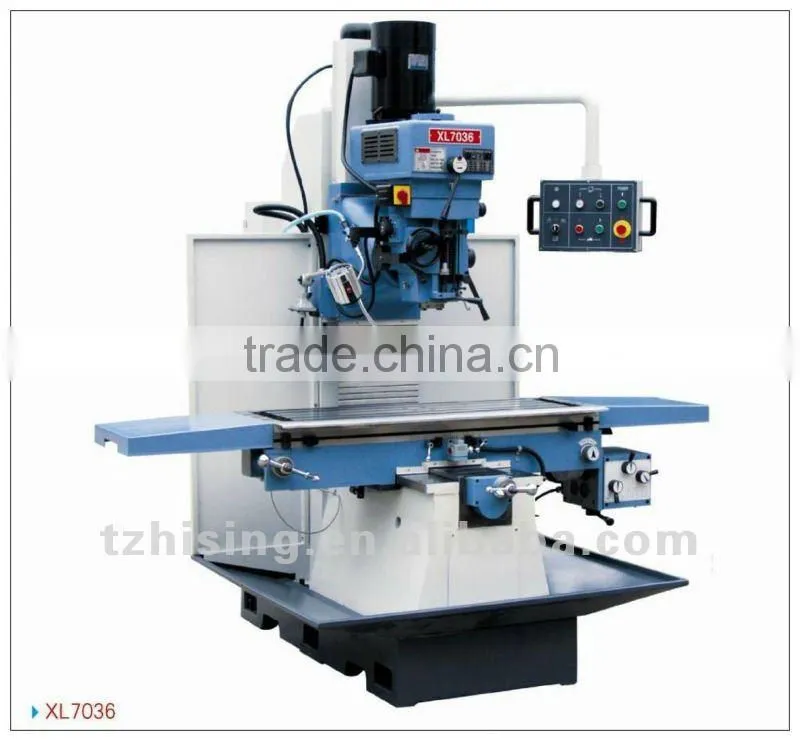

PHOTO OF XL7036 BED TYPE Vertical Milling Machine:
