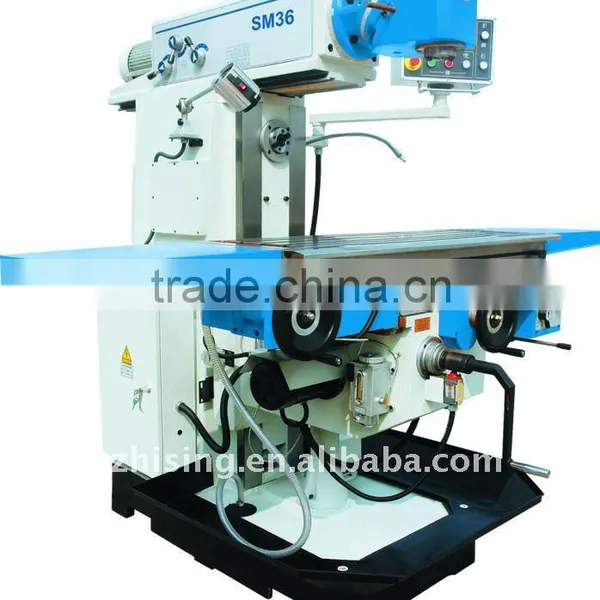

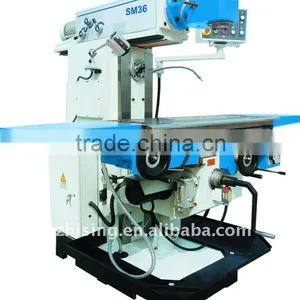

XL6236 Universal Swivel Head Milling Machine
US$ 6,500 - 8,700
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
TZhising
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HVTM1450C/HVTM1450D Turret Milling Machine From China for SaleUS$ 7,500 - 9,700MOQ: 1 Set -
Universal Bed Type Milling Machine for SaleUS$ 14,500 - 17,000MOQ: 1 Set
-
Universal Turret Milling Machine for SaleUS$ 7,400 - 7,900MOQ: 1 Set
-
HM1668 Heavy Duty Universal Milling MachineUS$ 7,600 - 10,000MOQ: 1 Set
-
China SWIVEL HEAD Milling Machine XQ6226AUS$ 4,300 - 4,950MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
TZhising
Model Number
SM36
Type
Universal
CNC or Not
Normal
Voltage
Customer Requirement
Power(W)
3KW
Dimension(L*W*H)
1.8x2.0x2.25M
Weight
2650kg
Certification
ISO9001:2008
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Swivel Head Milling machine SM36 :
| worktable size | 1250*360mm | |
| worktable travel | 1000*300*400mm | |
| distance from horizontal spindle to table | 0-400mm | |
| distance from vertical spindle to table | 350mm | |
| T-slot of table(number-width-length) | 3-18-80mm | |
| spindle taper | vertical | ISO40 |
| horizontal | ISO40 | |
| spindle speed(range/steps) | vertical | 35-1600rpm(11steps) |
| horizontal | 40-1300rpm(12steps) | |
| range of worktable x,y travel | 22-555mm/min | |
| rapid feed of worktable | 1080mm/min | |
| max.rotation angle of swivel milling head | ±360° | |
| main motor power | 3kw | |
| motor for rapid device of table(x,y/z) | 0.75/1.1kw | |
| N.W | 2650kg | |
