Universal Bed Type Milling Machine for Sale

Name: Universal Bed Type Milling Machine for Sale
Brand: HISING
SKU: 122085759

US$ 14,500 - 17,000 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Zhejiang, China

Brand Name:

HISING

Tengzhou Hising Machine Tools Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Zhejiang, China

Brand Name HISING

Model Number XG7140

Type Vertical

CNC or Not Normal

Voltage 380V/220V/400V/440V

Power(W) 5.5KW

Dimension(L*W*H) 1900X2250X2280mnm

Weight 4260kg

Certification ISO9001:2008

Warranty 12 Months

After-sales Service Provided Engineers available to service machinery overseas

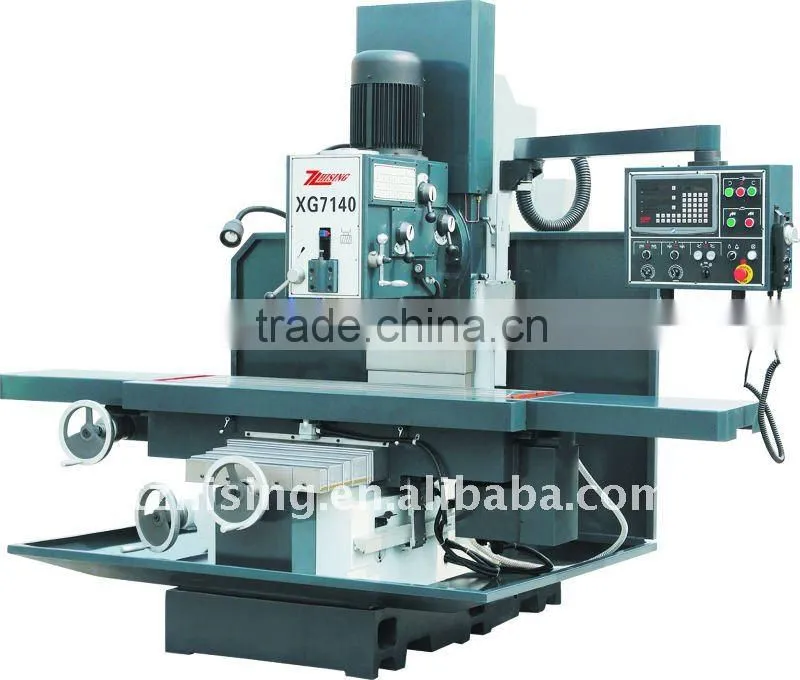

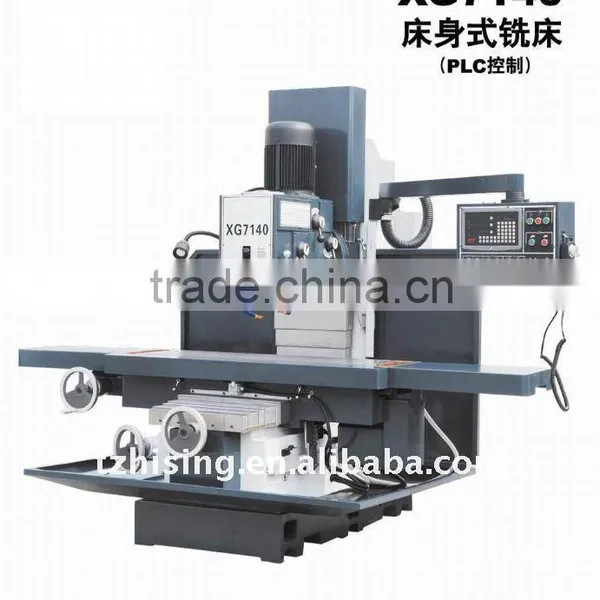

Universal Bed type milling machine for sale:

Specification of XG7140 Universal Bed type milling machine for sale:

Specifications	XG7140
Spindle taper	ISO50
Diameter of Quill	180mm
Distance from spindle to table	110mm-640mm(30mm-530mm)
Distance from spindle to column	540mm
Number of spindle speeds	12
Range of spindle speeds	35-2000r.p.m
Spindle travel	80mm
Head movement	±30°
Size of table	1525mm×400mm(2100mm×400mm)
Longitudinal table travel/X-axis	1200mm(1300mm)
Cross table travel/Y-axis	500mm
Vertical travel	500mm
X,Y-axis rapid feed speed	3000mm/min
Z-axis rapid feed speed	1800mm/min
Rate of feeding/Control measurement	1-3000mm/min 0.001mm
Max. weight of work piece	600kg
T-slot(number width distance)	3/18mm/1335mm
Milling head moving(vertical)slide way	(Rectangle side way)
Cross slide way	(Rectangle side way)
Longitudinal slide way	(Adjustable dovetails side way)
Horse power for main motor	5.5 kw (7.5 HP)
X axis driving motor	(Servo motor)1.5kw
Y axis driving motor	(Servo motor)1.5kw
Controller type	PLC control
Coolant pump power	90w(25L)
Overall dimension	2858×2160×2150mm
Packing size	1900×2250×2280mnm
N.M/G.W(kg)	4260/4460
