HM1668 Heavy Duty Universal Milling Machine

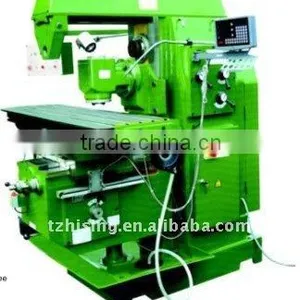

HM1668 Heavy Duty Universal Milling Machine thumbnail-1
HM1668 Heavy Duty Universal Milling Machine photo-1
US$ 7,600 - 10,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New, New
Place of Origin:
Shandong, China
Brand Name:
TZhising
Contact Supplier Request Quote Chat Now
Tengzhou Hising Machine Tools Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Shandong, China
Brand Name TZhising
Model Number HM1668/HM1360, HM1668/HM1360
Type Universal
CNC or Not Normal
Voltage Customer Requirement
Power(W) 5.5kw
Dimension(L*W*H) 1800x2100x2200mm
Weight 2700kg
Certification ISO9001:2008
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas

Specification of Univeral milling machine HM1668/HM1360:

Model HM1668 HM1360
Worktable size 400x1700(16''x68'') 340x1500(13''x60'')
Worktable travel 1110x400x400mm 850x330x400mm
T-slot of table(number-width-length) 5-20-80mm 3-20-80mm
Spindle taper

ISO40(vertical)

ISO50(horizontal)

ISO40(vertical)

ISO50(horizontal)
Spindle speed.(range/steps) 40-1200r.p.m 40-1300r.p.m 12 steps
Distance from spindle axis to column 0-415mm 430mm
Range of  worktable travel

30-400mm/min 10steps

 30-400mm/min 10 steps
Rapid feed of worktable 900mm/min 900mm/min
Max.rotation angle of table ±45° ±45°
Main motor power 5.5kw 3kw
Motor for rapid device of  table 1.1kw 0.75kw
N./W 27000kg 1700kg

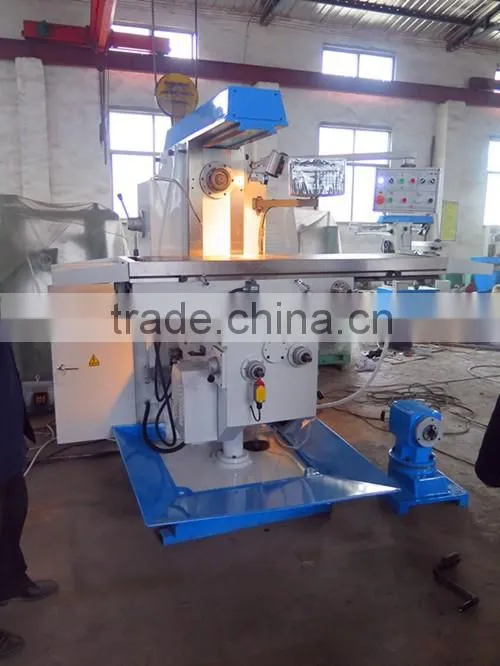

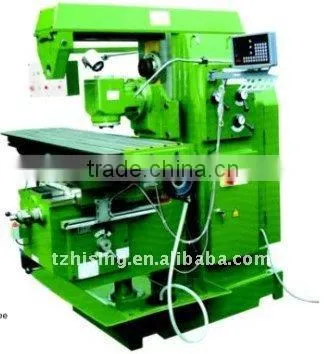

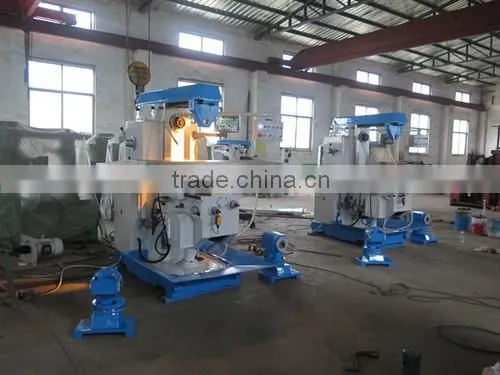

Photo of  HM1668 Heavy Duty Universal Milling Machine:



HM1668 Heavy Duty Universal Milling MachineHM1668 Heavy Duty Universal Milling Machine
