Turret Milling Machine Price List Provided
US$ 1,500 - 5,500
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
HISING
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Horizontal and Vertical Milling Machine for SaleUS$ 4,500 - 5,500MOQ: 1 Set -
XL6236 Universal Swivel Head Milling MachineUS$ 6,500 - 8,700MOQ: 1 Set
-
HVTM1450C/HVTM1450D Turret Milling Machine From China for SaleUS$ 7,500 - 9,700MOQ: 1 Set
-
Universal Bed Type Milling Machine for SaleUS$ 14,500 - 17,000MOQ: 1 Set
-
Universal Turret Milling Machine for SaleUS$ 7,400 - 7,900MOQ: 1 Set
Condition
New
Place of Origin
Shandong, China
Brand Name
HISING
Model Number
X6323B/X6325A/X6325C/XU6325/X6330
Type
Universal
CNC or Not
Normal
Voltage
Customer Requirement
Power(W)
3KW
Dimension(L*W*H)
1.6x1.8x2.2m
Weight
1380kg
Certification
ISO9001:2008
Warranty
12 Months
After-sales Service Provided
Engineers available to service machinery overseas
Turret Milling Machine price list provided :
Specification:
| Model | X6323A | X6323B | X6325A | X6325B | X6325 | X6325C | X6325D | XU6325 | X6330 | X6330A | X6333 | X6333A | |
| Table Size | 230×1067 | 254×1270 | 250×1270 | 305×1370 | 330×1370 | ||||||||
| 230×1246 | 54×1370 | 305×1500 | 330×1500 | ||||||||||
| Table Travel | X axis | 650/840 | 850/950 | 770 | 870/1000 | 840/1000 | |||||||
| Y axis | 305 | 400 | 420 | 420 | 380 | 368 | |||||||
| Z axis | 400 | 420 | 420 | 400 | 400 | 430 | 450 | ||||||
| Distance from Horizontal Spindle to Table | 0-415 | 0-405 | 0-350 | 0-450 | |||||||||
| T-slot of table(no./width) | 3×16 | ||||||||||||
| Spindle Taper | R8(standard);ISO 30/ISO40(optional) | ISO40 | R8 | ISO40 | |||||||||
| Spindle Speed(range/steps) | standard | 65-4500 50hz/80-5440 60hz | 65-4500 50hz/80-3750 60hz | 65-4500 50hz/80-5440 60hz | |||||||||
| optional | 65-4500 rpm(variable) | 65-3750(variable) | 65-4500 rpm(variable) | 65-3750(variable) | |||||||||
| Spindle Travel | 127 | ||||||||||||
| Auto-quill feed | 0.04/0.08/0.15mm/r(3steps) | ||||||||||||
| Ram Travel | 312 | 470 | 500 | ||||||||||
| Head Swivel(Left to Right) | 90° | ||||||||||||
| Head Swivel(Front to Rear) | 45° | fix | 45° | 45° | fix | 45° | fix | ||||||
| Main Motor Power | 2.25kw/3hp | 3.75kw/5hp | 2.25kw/3hp | 3.75kw/5hp | |||||||||
Feature of Turret Milling Machine price list provided:
1. Harden and ground table surface
2. Auto feed on two axes, motorized on Z aixs
For detailed specification of turret milling machine X6325d and other models, pls see the table abov

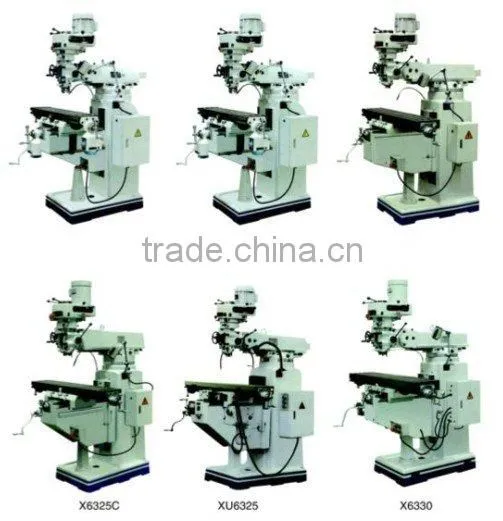

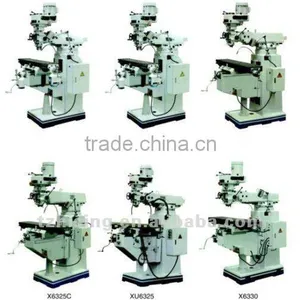

Photos of Turret Milling Machine price list provided :
e
