Specifications
1. reliable and safe.2. Types of crushing cavity are for wide range

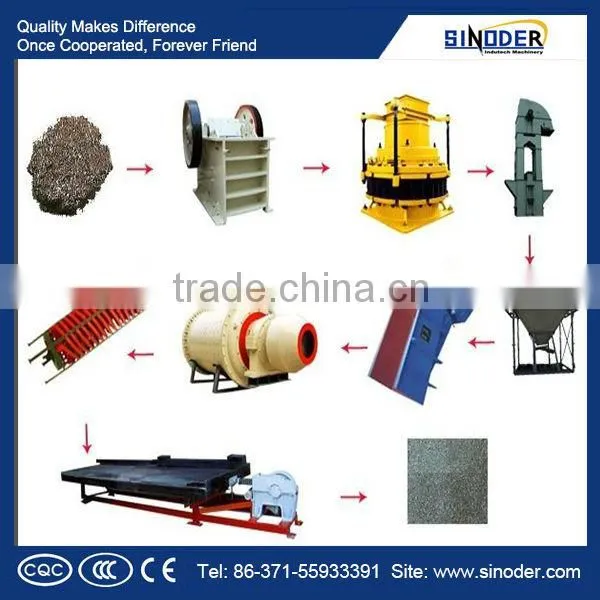

Copper Concentrate Plant include :
ore feeder, jaw crusher , cone crusher, belt conveyors, iron remover ,
vibrating screen , fine ore bin , ball mill , spiral classifier & hydrocyclone ,
condition bank , flotation cell , thickener , filter press

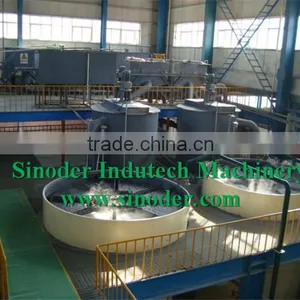

What is flotation machine? The floatation machine is applicable for separating non-ferrous metal, black metal, noble metal, non-metal mineral, raw body and materials of chemical industry, which are subject to coarse separation, swept separation and flotation, so the useful ore are reclaimed.
Mining Application ----It applicable for separating non-ferrous,black metal,nonmetallic minerals,raw material,and Floatation machine widely applies in the copper,the lead,the zinc,the nickel, gold and so on non-ferrous metal,ferrous metal and non-ferrous metal rough sizing,selection and counter-flotation process work
Feature:
1)Large inhaling capacity and low consumption.
2).Complete flotation circuit with inhaling air and slurry, no auxiliares are needed.
3).Process is easy to be changed.
4).Reasonable circulation of slurry decreases coarse sand sedimentation.
5).Automatic controlling device makes adjustment more convenient.
Model |
SF0.37 |
SF0.7 |
SF1.2 |
SF2.8 |
SF4 |
|
Trough capacity(m3) |
0.37 |
0.7 |
1.2 |
2.8 |
4 |
|
Blade diameter(mm) |
300 |
350 |
450 |
550 |
650 |
|
Production capacity(m3/min) |
0.2-0.4 |
0.3-0.9 |
0.6-1.2 |
1.5-3.5 |
0.5-4 |
|
Blade rotation speed(m3/min) |
352 |
400 |
312 |
268 |
238 |
|
Motor |
Model |
Y90L-4 |
Y100L2-4 |
Y132M2-6 |
Y160L-6 |
Y180L-6 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90S-4 |
Y90L-4 |
||
Power(kw) |
1.5 |
3 |
5.5 |
11 |
15 |
|
1.1 |
1.1 |
1.1 |
1.1 |
1.5 |
||
Dimensions(mm) |
700*700 |
900*820 |
1100*1100 |
1700*1600 |
1850*2050 |
|
Single trough weight(kg) |
468 |
600 |
1373 |
2338 |
2660 |
|

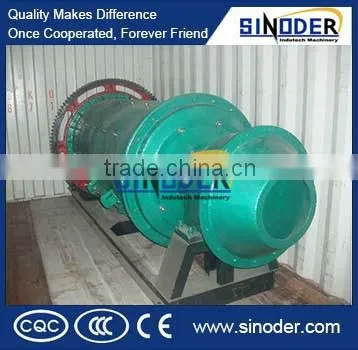

Introduce of ball mill : Ball mill is mainly composed of feeding part, discharging part, rotary part and driving part which includes reducer, small drive gear, electrical machine and electronic control.
Ball mill is the key equipment for smash the materials after they are primarily crushed. Ball mill is widely used for the dry type or wet type grinding of all kinds of ores and other grind able materials in cement, silicate product, new building material, refractory, fertilizer, black and non-ferrous metals and glass ceramic industry

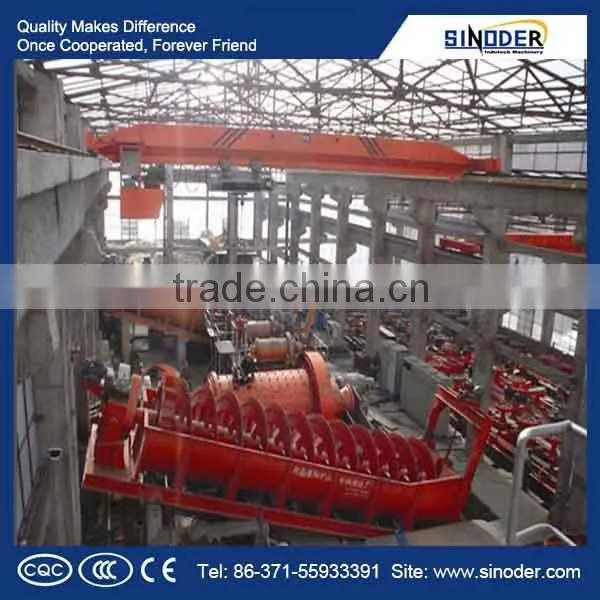

Tell you about spiral classifier : Spiral classifiers mainly include four types. They are high weir type single spiral classifier, high weir type double spiral classifier, immersed type single spiral classifier and immerse type double spiral classifier. A spiral classifier is composed of a transmission device, spirals, tanks, elevator mechanism, a bottom support (bearing bush) and a discharging valve
This spiral classifier is widely used with a ball mill to classify mineral sands, or classify ore sand and fine silt in gravity mill. It is also applied to classifying granularities in mineral separation, or desliming and dewatering in ore washing
What is jaw crusher ? Jaw Crusher is widely used in the works of mine, smelting, building materials, road, railway, irrigation,chemical industry etc.
2)The crusher is applicable for the rough and medium crushing of rocks and ores with a compressive strength less than 320MPA. It is the preferred equipment of secondary crushing
Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.
The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.
Sinoder offer not only products with good quality and competitive price, but also top service and solution.
Website:
1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.
2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other Equipment will be packed by Color-Stripes Plastic Cloth.
3. Or as per customer's requirements.
If you want to know more information , Pls to contact us
Tel: 0371 55933391 Fax: 0371 55919082
1.Pre-sale services:
1) Selecting equipment type;
2) Designing and fabricating the products in accordance with the special requirements of the clients;
3) Training technical personnel for our clients;
2.Services provided during the sale:
Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.
1) Checking products acceptance ahead of delivery;
2) Introducing the service system to our clients.
3. After-sale services:
Improve the added value of our products, and let the clients free from the using troubles:
1) Assisting the clients preparing for the first construction scheme;
2) Installing and testing the equipments;
3) Training the first-line operators on site;
4) Examining the equipment regularly;
5) Taking the initiatives to eliminate the failure(s) rapidly at site
Other choise for you

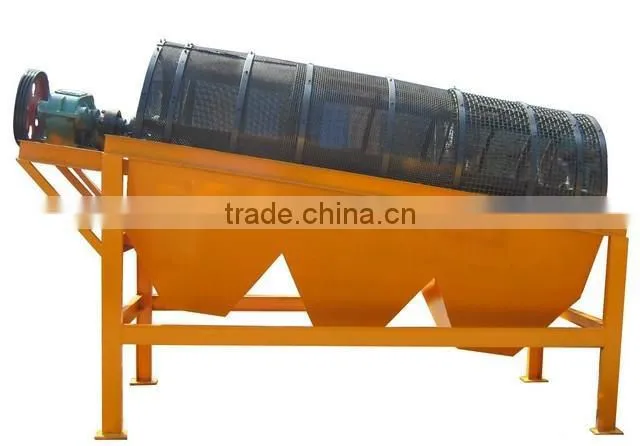

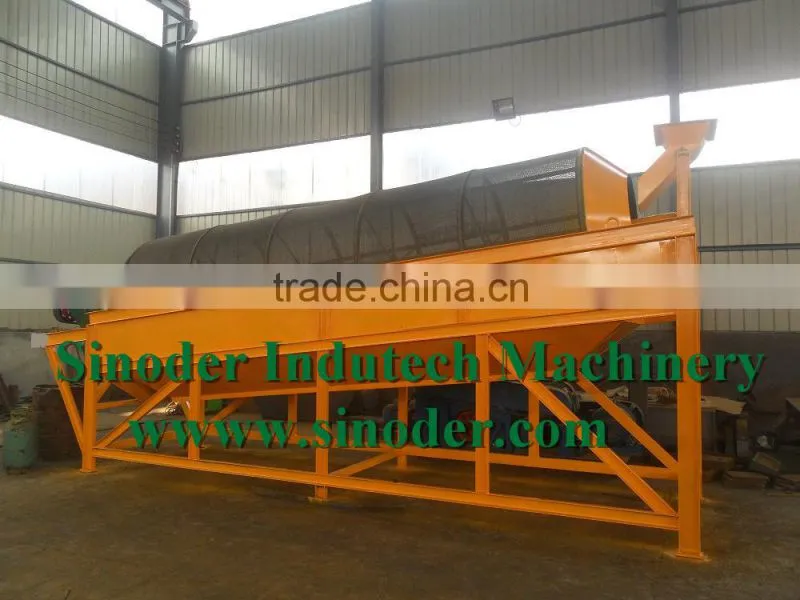

Screen

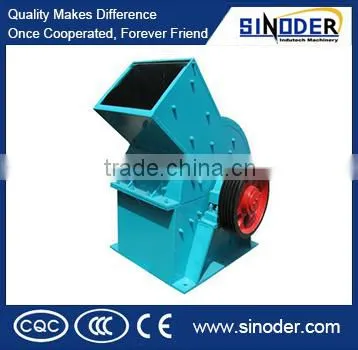

HAMMER CRUSHER
