electronic Weight Sensor with a variety of range for sale

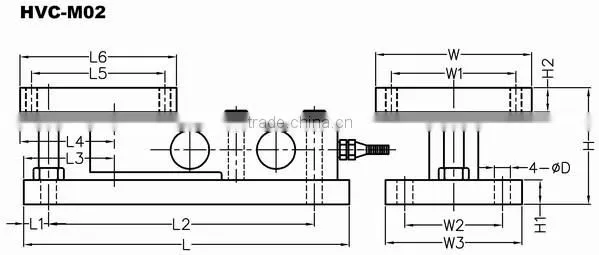

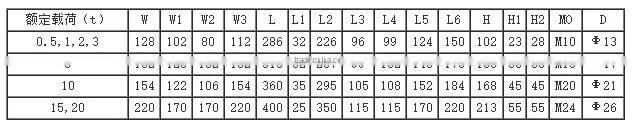

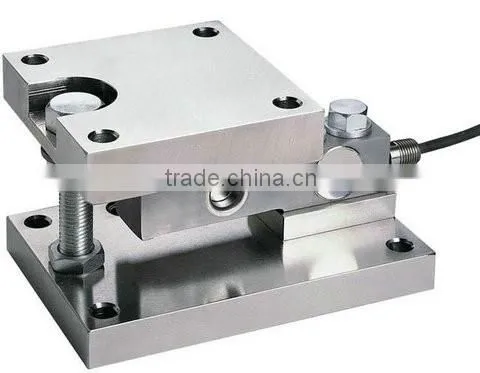

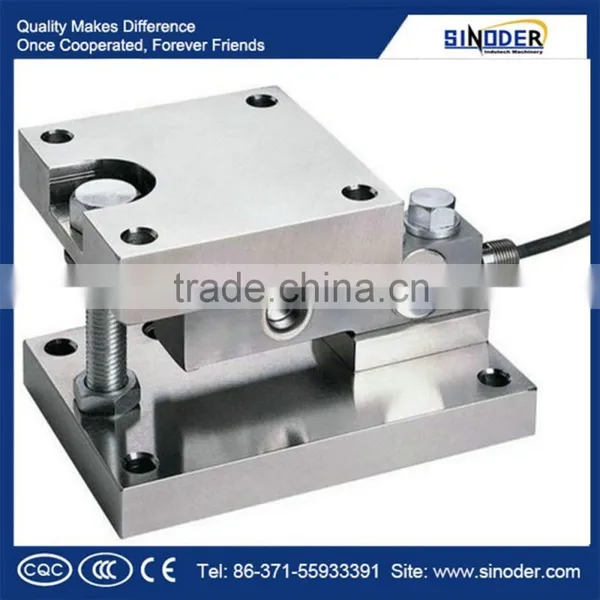

M02 Static load weighing module
Attention
1, in order to ensure the handling, transport, product is not damaged in the process, the module factory roof for the lock state, when installation should be lock nut
Loosen (about 2-3 mm) ensure the correct use of the module.
2, the installation of weighing sensor pre-tightening force have been adjusted when delivery from factory, the actual use cannot adjust, ensure the accuracy of weighing.

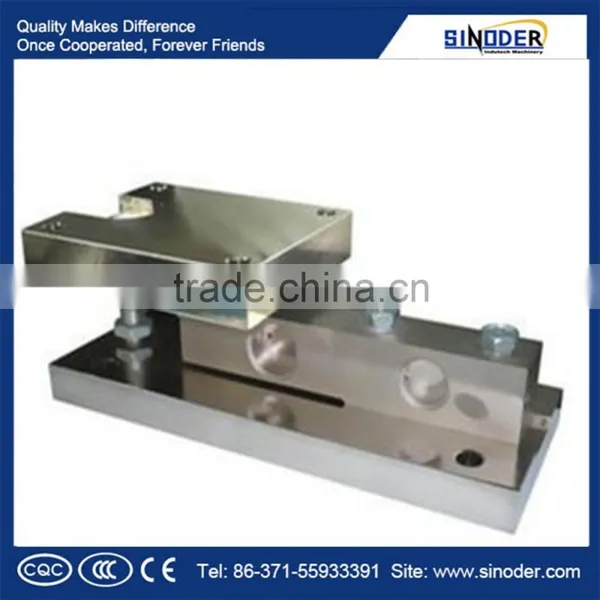

M02 dynamic load weighing module
Attention
Different from M02 Static load weighing module,dynamic load module is only a form of structure. It by sensors for swing post principle of pressure head, under water Flat after hard to swing around, after the system is stable, the head will automatically return to the original vertical stress position, ensure the weighing accuracy and stability.
Introduction
1, weighing sensor seal welding, protection grade IP68, can be used in various harsh environment;
2, sensors, satisfy the OIML R60 C3's request
3, unique structure, can be easily installed in all kinds of tank
4, three kinds of roof structure (stationary, half floating, floating) can eliminate tank weighing error due to heat bilges cold shrink
5, support bolt to prevent equipment capsized
6, installation is simple and easy;
7, convenient maintenance, saving maintenance downtime;
8, suitable for harsh environments tank weighing ingredients and process control.
Parameter
Model |
SNHV-M02 |
|||
Rated Load |
0.1,2,3,5,10,15,20t |
|||
Sensitivity |
2.0±0.002 mV/V |
|||
Total error |
±0.02 %F.S |
|||
Input resistance |
400 ±10 Ω |
|||
Output resistance |
352±2Ω |
|||
Insulation resistance |
≥5000MΩ |
|||
Operating Temp Range |
-30~+70℃ |
|||
Safe load limit |
120 %F.S |
|||
Over load limit |
200 %F.S |
|||
Recommend excitati |
10-12DC |
|||
Maximumu excitation |
15VDC |
|||
Protection Class |
Ip68 |
|||
Construction |
Alloy Steel & stainless Steel |
|||
Cable specifications |
Length:2.6mm(0.5-2t),3.5M(3t).2m(5t)7m(10t)12m(15t.20t |
|||
cable color code | ||||
+ drive |
- drive |
+signal |
-signal |
shield |
red |
black |
blue |
white |
thick black |

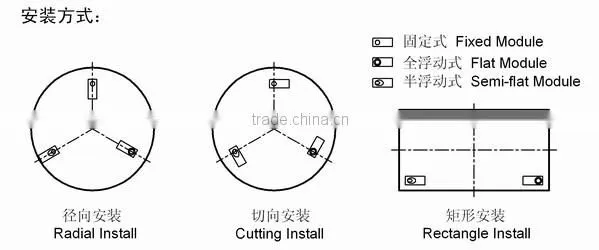

installations of the four modules
Weighing system generally consists of a fixed module, one and a half floating module and several relocatable module, half floating module must be installed in a fixed module;
Fixed modules installed point won't produce horizontal displacement, therefore in the process of system design, piping and electrical connections should be close to that point;
Half floating and floating module allows the system to move around a fixed point, eliminate container deformation on the impact of weighing.

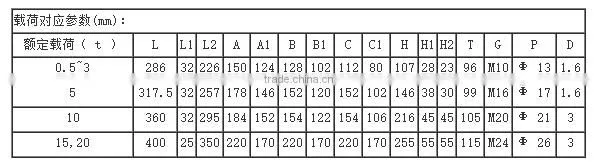

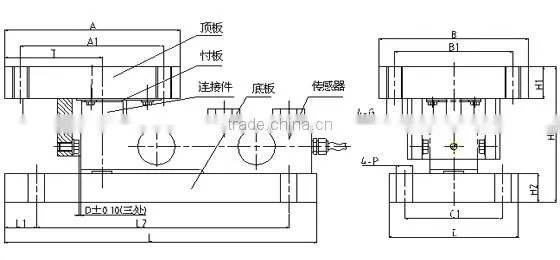

M02 dynamic load weighing module
Product description:
1, weighing sensor seal welding, protection grade IP68, can be used in all kinds of harsh environments
2, sensors, satisfy the OIML R60 C3's request
3, the stable pressure head design, and always maintain the correct loading position, weighing repeatability
4, installation is simple, fast, convenient maintenance, saving maintenance downtime
5, suitable for harsh environments tank weighing batching process control
6, suitable for such as race scale level impact weighing occasions
