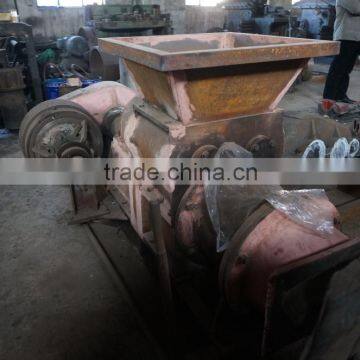

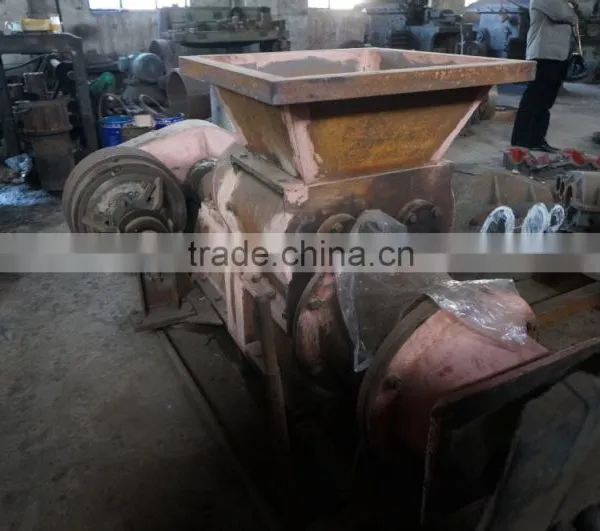

High Efficiency clay brick making machine, cutter and extruder together 1000-3000pcs per hour

  Best selling Small clay brick machine//small clay brick extruder/ clay block machine  clay brick making machine

Brief introduction

1)This type of machine is is suitable to make solid clay brick ,red clay brick ,red soil standard bricks, red mud brick etc, Different molds can bring out different brick.

2)The material is rich and easy to find, such as Clay, shale, coal slack, fly ash etc It is very convenient to set up a factory and begin to make bricks.

 The feature and advantage

1)small clay brick making machine main body is made from cast iron,main shaft and bearings one-time processing,good stability and long life service.

1)harden surface gear of Good service clay brick machine was adopted in reducer, clutch are a component with own patent,without any shaking during working, even the extruder can working normal without foundation bolts.

2)the steel material of shafts and gears in Good service clay brick machine are adopt high quality carbon steel and alloy steel, the key parts are quenched and tempered treated so as to extend fly ash bricks making machine life.

3)The spiral cut reamer of Automatic Good service clay brick machine adopt wear-resistance metal spray painting technology; The upper stage mixing shaft, the cut reamer big shaft, the up-down body etc. are all passed the aging, quenching and tempering process.

4) Good service clay brick machine features with simple and compact structure, reasonable design, strong applicabilty, lower energy consumption, and high efficiency. the equipment can work steadily

The main technical parameter

The production line

Clay---conveyor---crusher---conveyor---blender---conveyor---clay brick machine---strip cutter---brick cutter

1.Crusher

Roller clay brick crusher is one of the important equipment in brick production.Our Roller crusher can crush small stones and soil into powder with less then diameter 3mm. so that you can get good quality bricks.Both ends of the fine crusher are equipped with regulating pinched security block which is used to protect rolling circle and equipment.

2. Mixer

mixer is mainly used for various powdery materials, such as clay, shale, cola gangue and fly ash, etc, which can well stir materials. It is the important equipment in brick making production.Double shaft mixer is also applicable to the steaming flyash brick production line.the aerated concrete block production line,and the clay brick vacuum extruder prodution line.chemical and mineral industry etc.

3.Cutting

Automatic cutting machine is a section of molding equipment, used to be squeezed out of the mud, cut into long required a certain height, and can be automatically sent to the soil cutter platform, Local child care by a group of roller milling, Wire All bowand speedy delivery motor-driven roller comprising article

4. Brick cutter

The brick cutter with less power consumption, light weight, small size, the structure of novel, safe and convenient operation, simple maintenance and reliable performance,is a new generation of cutting equipment,also be vacuum extruder production brick ideal equipment

Introduction of the small clay brick making machine

1) The YK220 Brick Machine is suitable for making the clay brick adobe for house.  The materials

    can be clay,blackland, mixing clay etc.

2) It includes Hopper, Mud pie cutter and Mud adobe slicer. It can be installed on the falsewor wooden/iron

     board), also can be installed on the concrete foundation. The size of area is  1200*800*1200mm.

     Its weight is 350kg and capacity is  35000 40000pcs/8h(brick size is our national standard size:                              240*115*53mm), of course we can make the  brick mould  according to your demand sizes).

 3) It can be driven by the 11kw motor or 24Hp diesel engine .

Zhengzhou Sinoder Indutech Machinery Co., ltd (hereafter referred to as "Sinoder") is a joint-stock machinery manufacturing enterprise, integrating industrial scientific research, production and marketing. The company is located in the Industry Area Zone of Zhengzhou, China.

The main products cover industrial drying machines,industrial crushing machines, mineral processing machines, brick machines, biomass energetic machines, environment protection equipment, food oil press machines and other mechanical equipment. Our key product include stone crusher,sand maker, stone washing machine, ball mill, flotation cell, AAC block plant, rotaty drying machines, biomass burner, coal gasifier, oil press machine, packaging machine, breeding machines, fertilizer and pellets machine and other machines.

Sinoder offer not only products with good quality and competitive price, but also top service and solution.

Website:

1.Waterproof packing with the international export standard by 20ft, 40ft, 40hp container.

2. Equipment Fittings, Electric Motor and Power Cabinet will be packed in Wooden Case or Iron Box. Other                          Equipment will be packed by Color-Stripes Plastic Cloth.

3. Or as per customer's requirements.

1.Pre-sale services:

1) Selecting equipment type;

2) Designing and fabricating the products in accordance with the special requirements of the clients;

3) Training technical personnel for our clients;

4) Providing construction and technology consultations or working out proper construction schemes for those new, special or difficult projects.

2.Services provided during the sale:

Respect our clients; present the clients with ease, relaxation and a surprise; devote ourselves to improve the total value of our clients.

1) Checking products acceptance ahead of delivery;

2) Introducing the service system to our clients.

3. After-sale services:

Improve the added value of our products, and let the clients free from the using troubles:

1) Assisting the clients preparing for the first construction scheme;

2) Installing and testing the equipments;

3) Training the first-line operators on site;

4) Examining the equipment regularly;

5) Taking the initiatives to eliminate the failure(s) rapidly at site;

6) Distributing the guarantee fittings door-to-door;

7) Providing technical exchanging;

8) Providing maintenance for big item
