Sinoder Brand Brick Molding Machine concrete block production line
- 50 Unit / Units per Month
- Qingdao Shanghai Tianjin seaport
- T/T
Product Details
Condition: | New | Type: | Hollow Block Making Machine | Brick Raw Material: | Concrete |
Processing: | Brick Production Line | Method: | Hydraulic Pressure | Automatic: | Yes |
Capacity: | : 53750 pcs/8hr | Place of Origin: | Henan, China | Brand Name: | Sinoder |
Model Number: | QT4-20 | Voltage: | 380V or others | Power: | 22.3 kw |
Dimension(L*W*H): | 2800x2200x2800mm | Certification: | ISO,CE | Warranty: | 12months |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
concrete hollow block machine concrete block production line
interlocking brick machinery

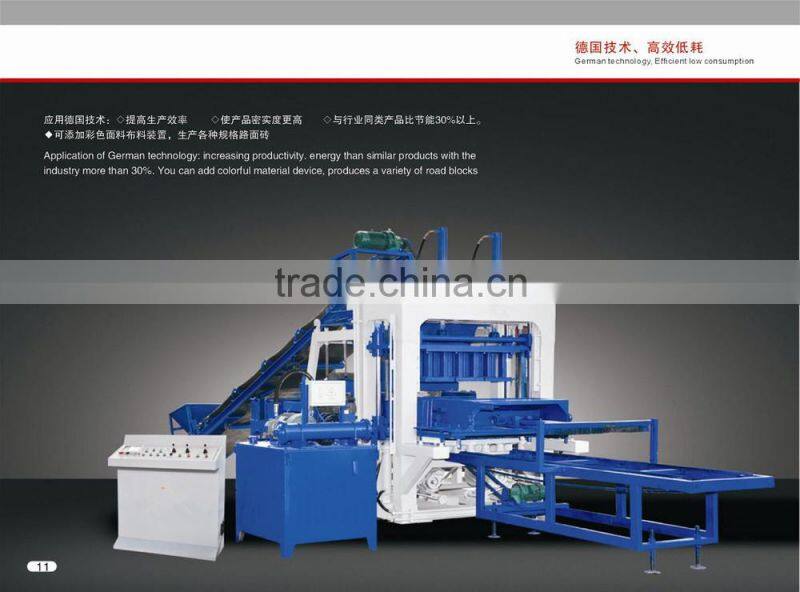

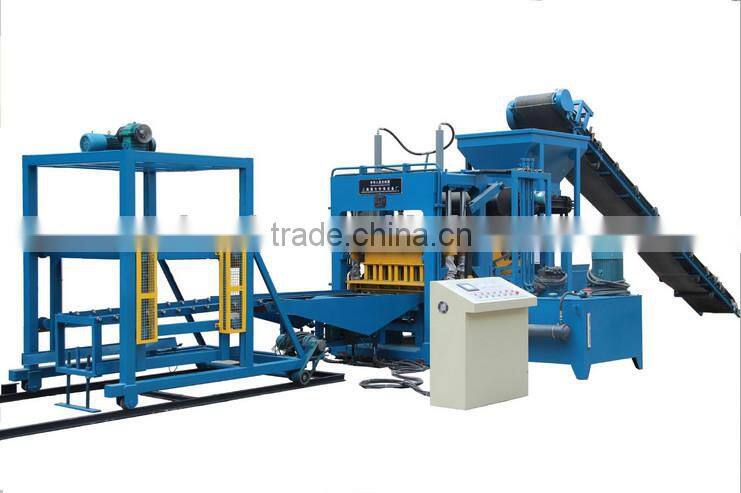

1.Advantage of bricks manufacturing machine price QT6-15B fully automatic concrete block making machine
(1) Full automatic and hydraulic automatic block making machine , can produce all kinds of bricks, and just change the moulds, such as the solid bricks, hollow blocks, paver blocks and so on.
(2) German Siemens motors
(3) Japan Mitsubishi PLC
(4) Omron travel switch
(5) The moulds: We adopt the heat treatment technique to increase the lifespan of the moulds
(6) Certificates: SGS/CE/ISO9001 2008
(7) Mould heat treatment & carburization technology
(8) Strong High-Strength Steel Structure
2. Technical Parameter of bricks manufacturing machine price QT6-15B fully automatic concrete block making machine
overall demension: | 7100*1500*3000mm |
rated pressure: | 21Mpa |
main vibration form: | platform vibration |
vibration frequency | 4500-5100( r/min) |
pallet size | 880*680mm |
molding cycle: | 15-25s |
overall power | 31.25KW |
Mixer model | JS500 |
3.Production capacity of bricks manufacturing machine price QT6-15B fully automatic concrete block making machine
Size(L*W*H) (mm) | Pcs/mould | Pcs/mould | Pcs/8h |
400x100x200 | 12 | 2160-2520 | 17280-20160 |
400x150x200 | 8 | 1440-1920 | 11520-15360 |
400x200x200 | 6 | 1080-1260 | 8640-10080 |
400x250x200 | 4 | 720-840 | 5760-6720 |
230x110x70 | 30 | 5400-6300 | 43200-50400 |
Paver:200x100x60 | 24 | 4320 | 34560 |
Paver:200x163x60 | 9 | 1620 | 12960 |

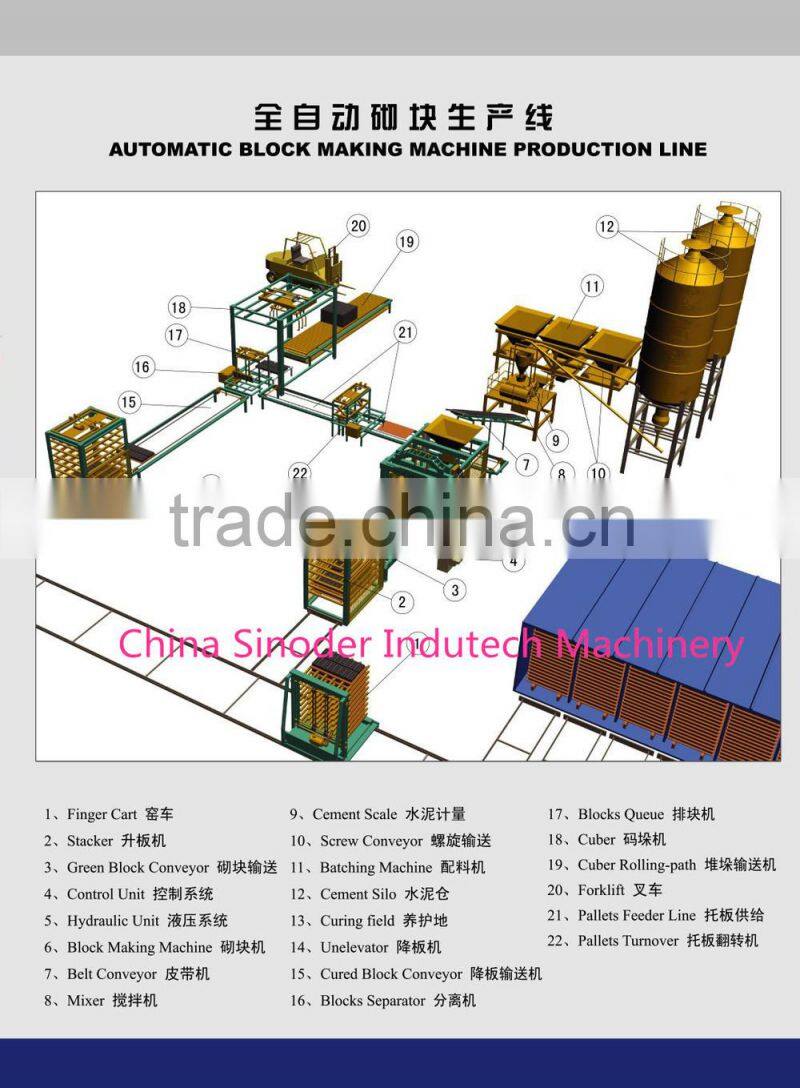

Advantages of QT Series Block Production Line
1. Technical Advantage
1) This automatic concrete block machine can finish material proportioning, molding, stacking, pallet supply, pallet cleaning and pallet returning automatically. Workers only need to monitor the operation. It is easy to control the whole production system.
2) Adopting unique hydraulic vibration technology and forced feeding device, QT block production line can satisfy the process requirements of different materials, especially for composite materials.
3) We possess a number of technicians who have made great breakthrough in producing automatic concrete block machines with strong load capacity.
2. Design Advantage
1) QT series automatic concrete block machines adopt modular assemble line (single or double). We can provide lines with different specifications and performances for different investment scales.
2) This block production line is designed reasonably with compact structure. It can realize directional vibration and variable frequency braking, and reduce labor intensity.
3) The main parts and components use international famous brand products, like NSK bearing, MITSUBISHI PLC and inverter, OMRON sensor, etc. This ensures reliability and stability of QT series automatic concrete block machines.
3. Other Advantages
1) Block products manufactured from this block production line have good compressive strength, accurate external dimension and small discreteness.
2) Our automatic concrete block machines own advanced performance and can be used in a wide range of industries.

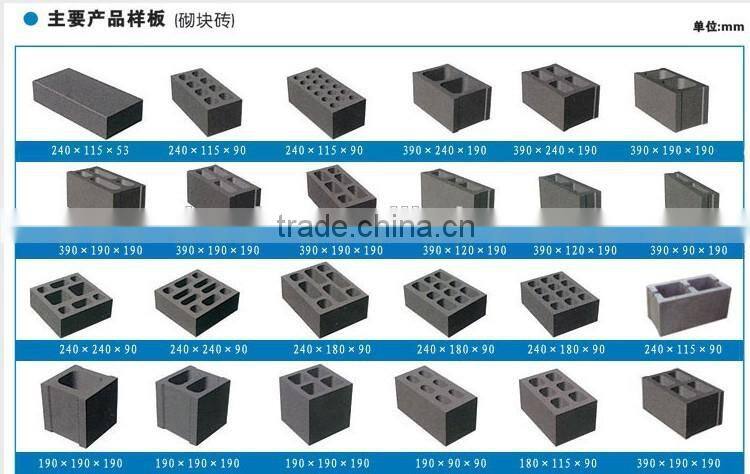

Block Mould Sample
Why choose us?
Rich experience:
Our machine have been sold to Middle East,America,Africa,and worldwide.
Reliability:
Professional manufacture in make various kinds of block machine many years.
Qualified engineer can be sent to your country to help install the block machine.
Competitive price:
Real manufacture,real price.
After sales service:
One year gurantee,and will also provide technical and full support all life time.
Within one year, if the client meet the unsolvable questions ,we could fly to help you.
Q1: What is the Warranty for the machine?
A1: For the machine,we have 1 years warranty.If any quality problems on our side occured in this period ,we will take on the shipping cost and replacement.
Q2: What kinds of payment methods can be accept?
A2: Payment: T/T, Western Union, MoneyGram,PayPal; 30% deposits; 70% balance before delivery
Q3: Who will pay the delivery cost?
A3: customers need to pay delivery cost.
Q4:Who arrange shipping?
A4:We will arrange shipping for you if you don’t have special requirement
Q5: what's the motor voltage?
A4: Our local voltage is 380v, 3phase, 50HZ, motor voltage could be customized to fit your local voltage
Q6: Do you have Operation Instruction Manual
A4: Yes.We will send the Operation Instruction Manual to you after you purchase the machine.
The Fastest Way to Get Solution and Quotation
Haven't found the right product yet ?
Pls call or send email, tell your idea, we make it come true!
Welcome to contact us and visit our factory any time!
Contact Us
- Zhengzhou Sinoder Indutech Machinery Co., Ltd.
- Contact nameRockwell Ni
- Phone86-371-55933391
- AddressNo. 2, Leding Plaza, Dianchang Rd., Zhongyuan Dist.
