Product Details

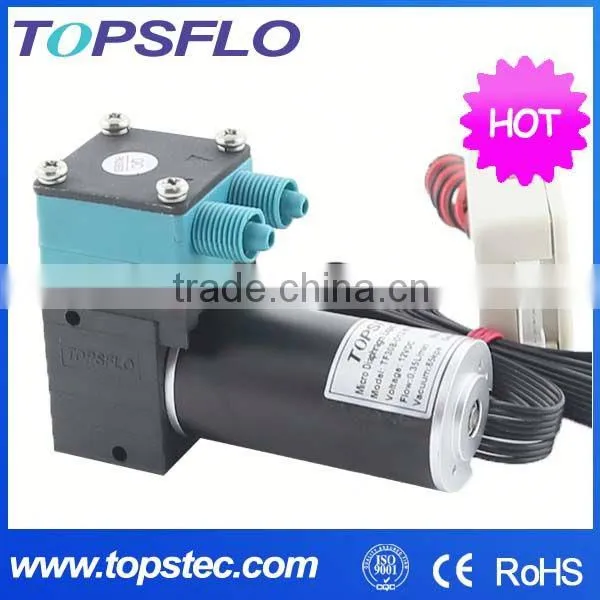

Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TF30B-D |
Theory: | Vacuum Pump | Structure: | Diaphragm Pump | Usage: | Air Pump |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery |
Pressure: | High Pressure | Application: | Other, Gas transferring and evacuating |
Product Description
You are here:Home >>Family Products >> 12v pump diaphragm vacuum
TOPSFLO micro diaphragm liquid /vacuum pumps are based on a simple principal,the circular power from the motor is converted into oscillating movement by an eccentric, which moves up and down its central point, this motion is then transferred to a diaphragm by means of a connecting rod, an elastic diaphragm, which in conjunction with an inlet and outlet valve creates a pumping action.
PRODUCT PARAMETERS |
Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Head | Max Vacuum | Max Flow |
(Item Number) | (Item Number) | (Vdc) | (A) | (M) | (KPa) | (L/min) | |
TF30B-C | TF30B-C12-W1003(inside controller) | TF30B-C12-V6504 | 6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 | water: 0.35 gas: 4.5 |
TF30B-D | TF30B-D12-W1003 (outside controller) | TF30B-D12-V6504 ( outside controller) | 6/12/24 | 0.4/0.24/0.15 | ≥10 | -65 | water: 0.35 gas: 4.5 |
" W " means water/liquid pump, " / V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||
Pump Weight:250g; Pump Size:80mm*31mm*60mm; Inlet&Outlet with locknut:OD 4.9mm/ID 2.8mm,hose suggestion:ID 4.0mm | |||||||
Super silent noise Note:other water flow rates of 0.05L/0.15L/0.2L/0.3L can be customized as requirements. C- inside controller type D- outside controller type | |||||||
Motor type and code:"C"means Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D"means Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. |
A- Premium duty brush DC motor
lifetime 5,000hours,longer endurance lifetime than other normal DC membrane pump
B- Economical brush DC motor
lifetime:1,500hours
C- Coreless Brushless DC Motor
A brushless electronically commutated dc motor (electronics integrated in motor), the motor runs vibration and spark free, almost silently, is very dynamic and extremely durable, ideal life-time 15000 hours
D- Coreless Brushless DC motor with outer controller
With all advantages of coreless brushless DC motor, ideal life-time 15000 hours, and outer controller can realize more control functions of PWM or 0 -5V speed adjustment, brake, ~ instant starting work
H- Brushless DC Motor
Long lifetime 10000hour
PRODUC T FEATURE |
• Small and powerful
• Self-priming and excellent for pressure
• Dry running, durable and maintenance free
• Lasts Reliably Longer
• Uncontaminated flow
• Little vibration
• High level of gas tightness
• Extreme chemical resistance
The use of chemically resistant materials optional such as PTFE FKM or other ,
material combinations for the parts which allows the corrosive gas to be pumped.
Optimal solution for your application
DIMENSION (MM) |
PRODUCT APPLICATION |
Industrial liquid and vacuum applications
Portable Analytical Instruments
Medical Diagnostic Equipment
Printer ink machine
Fireplace
Respiration Monitors
PRODUCT RECOMMEND |
Richard Wang |
Q: What's your payment terms?
A: Usually we accept T/T ,Western Union or PayPal.
Q: What's your delivery time?
A. 1.The stock samples can be sent to you within 3-5days by international express after received
2.The batch order can be shipped to you in about 30-40days after order confirmation (by vacuum or by sea)
Q: What's your main products of your company?
A: We specialized in all kinds of micro pumps(micro BLDC centrifugal water pump,micro gear pump,high performance diaphragm vacuum/liquid pump )for over 10 years with excellent quality and competitive.
Q:How can I choose the most suitable pump?
A: Please tell me your detailed flow rate, voltage, application and so on, then I will match the most appropriate pump for you, or you can choose the exact model in the product manual.
Q: How long is your pump lifetime?
A: Pump lifetime mainly depends on motor lifetime,we have DC brush, brushless, coreless brushless motor For your choice
If you are unsure which pump is best suited to you needs, please give us some information on your intended use and the plumbing configuration, and we will be happy to advise. We aim to ensure customers get what they need, and we won't try and sell you something that is not suited to your requirements!
