Product Details
Place of Origin: | China | Brand Name: | TOPSFLO | Model Number: | TG-02 |
Theory: | Other, Self priming | Structure: | Gear Pump | Usage: | Other, Water, oil, various liquid |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other, DC power, Battery, Solar panel |
Pressure: | High Pressure | Application: | Other, Various liquid transfer or boosting, Widely used sanitary ware,,spray,ice-making machines,drinking fountain |
Product Description

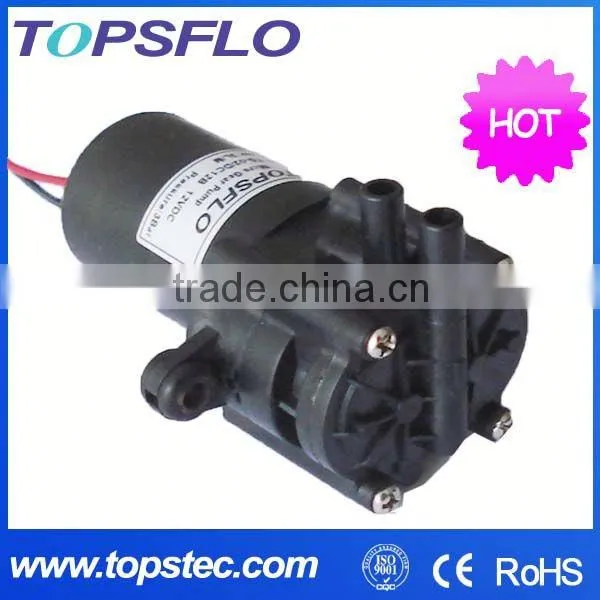

12v 24v Mini Size Self priming dc machine ice cream
Product Description
1. Working principle :dc gear pump
2. Structure: gear structure; wear-resistant, corrosion-resistant
3. The products use brush motors, Products using the brush motor driver, small size,high pressure
4. Fluid : A variety of liquid and oil
Temperature: -10 °C ≤ T ≤ 100 °C (except for the freezing)
5. Material: PPS gears, PPS pump head
6. Applicable to the interruption media transmission
Product Features
Small size, high pressure
Excellent self-priming,
Smooth, Pulseless Delivery
Easy to Service
Chemical resistance
DC Motor drive.
Application areas
Widely used sanitary ware,,spray,ice-making machines,drinking fountains,lab,Humidifier, medical equipment,Food Grade, etc.
Dimension (mm) 1 inch=25.4mm
Specification:
Model | Item Number | Max Flow (L/Min) | Max Pressure (Bar) | Rated Voltage (V) | Voltage Scope (V) | Power (W) | Suction Height ( M) |
TG-02S-12-017 | 1.7 | 1.5 | DC12 | 5~14 | 12 | 0.3M | |
TG-02S | TG-02S-24-017 | 1.7 | 1.5 | DC24 | 8~26 | 12 | 0.3M |
TG-02S-24-03 | 3 | 3 | DC24 | 8~26 | 20 | 0.5M | |
TG-02B-12-015 | 1.5 | 2 | DC12 | 5~14 | 35 | 0.4M | |
TG-02BT | TG-02B-12-025 | 2.5 | 3 | DC12 | 5~14 | 40 | 0.6M |
TG-02BZ | TG-02B-24-015 | 1.5 | 2 | DC24 | 8~26 | 35 | 0.4M |
TG-02B-24-025 | 2.5 | 3 | DC24 | 8~26 | 40 | 0.6M |
Note:
1. TG-02S and TG02B with the same pump head, in motor size TG02B a little bigger with length of 104mm,width of 38mm.
2. TG02B lifetime reference is 800hours, TG02S lifetime reference is 400hours.
3. TG02B noise slightly slower.
