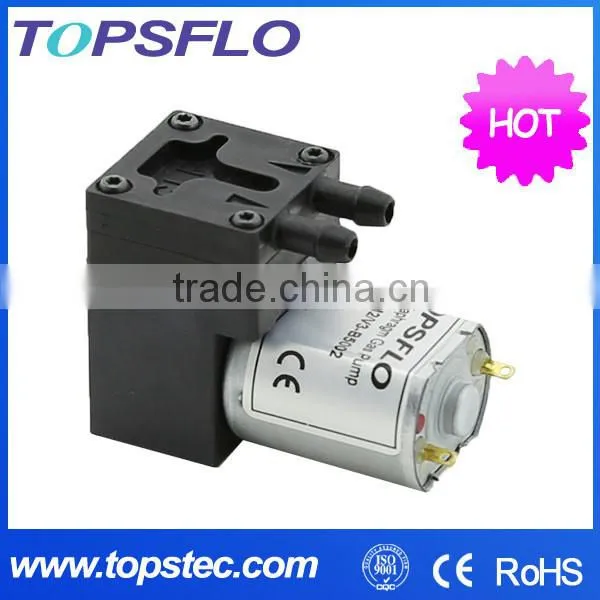

TOPSFLO TM22 Small flow rate Diaphragm Air Pump vacuum pump
Specification:
| Model | TM22- B | TM22- A |
| Material | pump head Nylon membrane EPDM valve EPDM EPDM: Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity. | pump head Nylon membrane EPDM valve EPDM EPDM: Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity. |
| Voltage(V) | 4/6V | 6/9/ |
| Current(mA) | 180-60 | 180-60 |
| Max pressure(kpa) | 80 | 80 |
| Max vacuum(kpa) | 50 | 60 |
| Max flow(L/min) | 2 | 3 |
| Lifetime | 1000hour | 1000hour |
| Working Way | interruption or continues | interruption or continues |
| Noise | noise<50dB from 1 Meter | noise<50dB from 1 Meter |
| weight. size | 45g 22*32*49; | 40g 22*32*42 |
| Note | Motor type and code:"A"or "B" means economical brush DC motor | Motor type and code:"A"or "B" means economical brush DC motor |
Technical features:
1. Uncontaminated flow.
2. Non-metallic construction.
3. Oil-Free, Corrosion resistant
4. Long life,High efficiency
5. Compact size, Low Weight
6. Low noise level&vibration
7. Maintaince free.
8. High level of water tightness thanks to the closed
diaphragm surface and special sealing system.
9. Can operate in any installed position
Note:
1. above 100KPa pressure need to special customization.
2. when air pressure reach to the highest pressure point need to stop the pump, not suggested to long time continuous working under this highest point, or else will short the pump lifetime.
3. if need the pump can keep long time continuous working at the highest pressure point but not influence the pump performance, please choose the Piston Pump.
Application:
Gas detection devices Sewage disposal
Patient Monitoring Wide-Format Printer
Blood Pressure Monitor Bio-Chemical Analyzer
Gas massage products Electrolyte
Lab equipment Beauty equipment
Microplate Washer Chemistry analysis
Airpler Vacuum transfer
Aatic Tourniquet Autoclave
