Specifications
1. Reducing Tee welding machine PE and HDPE2.application: PP, PE and PVDF
3. standard: 08/37/EC and 73/23/EEC standard

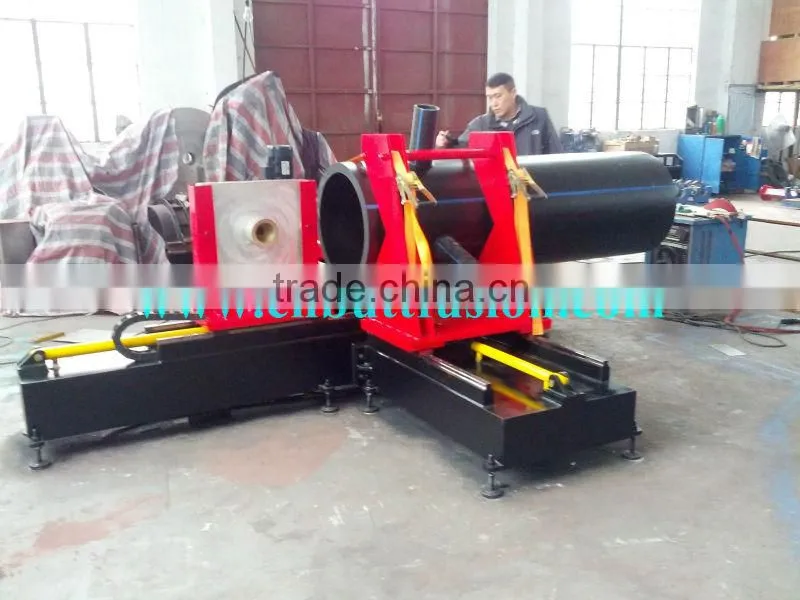

MRH630 HDPE Reducing Tee Welding Machine PE and HDPE reducing tee
MRH630 Saddle Butt Fusion Machine, MRH630 Saddle butt fusion welding machine, Pe Pipe saddle butt fusion machine.
Saddle fitting welding machine PE and HDPE
Application and features
Suitable for fabricating PE reducing tee in a workshop
Integrated function of welding and taping enables it can complete the whole fabricating process
Removable PTFE coated heating plate
Separate two-channel timer records times in soaking and cooling phases.
Digital high-accurate pressure meter indicates clearer readings.
Linear guide ways are equipped with heating plate, planing tool and dragging plate.
Main technical parameters
Model | MRH 630 |
Working range | Reducing tee |
Max. Temp heating plate | 270°C |
System pressure ranges | 0~16MPa |
Working voltage | 380V,50Hz |
Heating plate power | 8 KW |
Hydraulic unit power | 1.5 KW |
Drill motor power | 1.5KW |
Power | 11KW |
Unitize: mm
Main pipes and branch pipes: SDR11
Main pipe Branch pipe | 315 | 355 | 400 | 450 | 500 | 560 | 630 |
63 | + | + | — | — | — | — | — |
90 | + | + | + | — | — | — | — |
110 | + | + | + | + | — | — | — |
160 | — | + | + | + | + | + | — |
200 | — | — | + | + | + | + | + |
225 | — | — | — | + | + | + | + |
250 | — | — | — | — | — | + | + |
315 | — | — | — | — | — | — | + |
“+”denotation can made saddle fittings.
