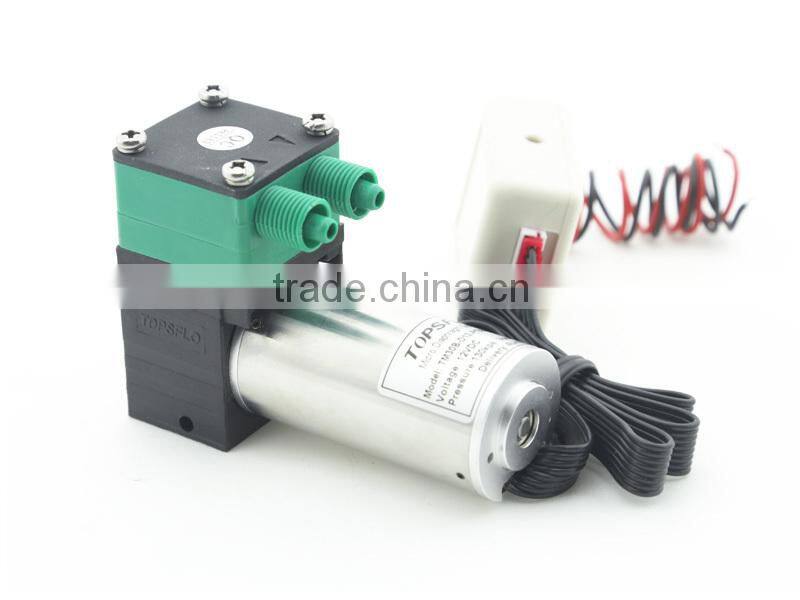

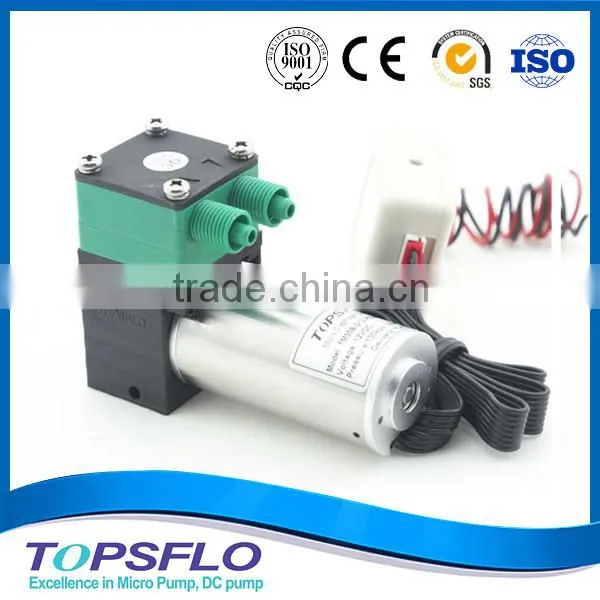

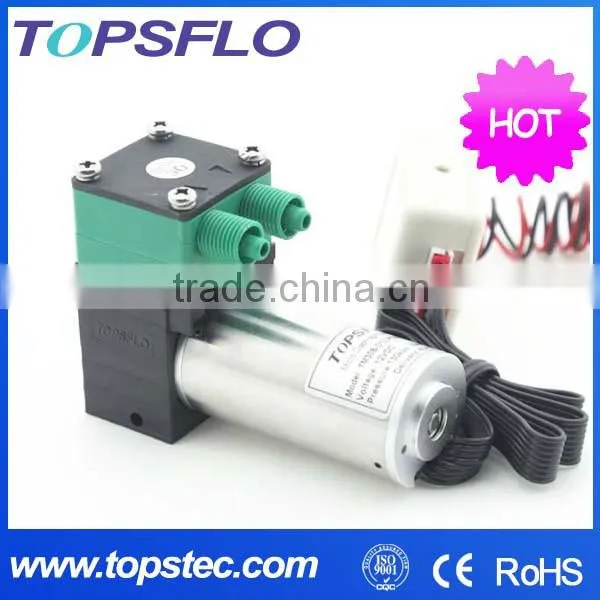

TM30B-D PWM 0-5V Speed 6V 12V 24v DC Diaphragm Air Pump
Negotiable
MOQ: 200 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
TOPSFLO
Model Number:
TM30B-D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Diaphragm dc Brushless 12v PumpNegotiableMOQ: 100 Pieces -
TF30B-H Diaphragm Liquid Corrosion Resistance Brushless PumpNegotiableMOQ: 100 Pieces
-
Diaphragm 12v 24v Liquid PumpUS$ 73 - 88MOQ: 100 Pieces
-
High Performance 24v Air Pump/micro Air Pump/small Air PumpUS$ 31 - 39MOQ: 200 Pieces
-
TOP Performance Diaphragm 12v 24v Brushless Quiet Gas PumpUS$ 39 - 40MOQ: 100 Pieces
Place of Origin
China
Brand Name
TOPSFLO
Model Number
TM30B-D
Theory
Vacuum Pump
Structure
Diaphragm Pump
Usage
Air Pump
Power
Electric
Standard or Nonstandard
Standard
Fuel
Other, DC power,Battery
Pressure
Other, 130kpa 4L, 130kpa
Application
Other, Gas transferring and evacuating
TM30B-D PWM 0-5V Speed 6V 12V 24v DC Diaphragm Air Pump
Product Features:
1. Highest Performance/Size Ratio
2. Performs Quieter
3. Lasts Reliably Longer
4. Uncontaminated flow
5. Little vibration
6. High level of gas tightness
7. Extreme chemical resistance
8. Optimal solution for your application
Specification:
| Model | Pressure Pump | Vacuum Pump | Rated Voltage | No-load Current | Max Pressure | Max Vacuum | Max Flow |
| (Item Number) | (Item Number) | (Vdc) | (A) | (KPa) | (KPa) | (L/min) | |
| TM30B-C | TM30B-C12-P13004 | TM30B-C12-V6504 | 12/24 | 0.24/0.15 | 130 | -65 | 4 |
| TM30B-D | TM30B-D12-P13004 (outside controller) | TM30B-D12-V6504 (outside controller) | 12/24 | 0.24/0.15 | 130 | -65 | 4 |
" P " means pressure pump, " / V " means vacuum pump, "6/12/24" means different voltages optional. | |||||||
| Pump Weight:250g; Pump Size:80mm*30.5mm*58mm; Inlet&Outlet:OD 4.8mm/ID 2.6mm,hose suggestion:ID 4.0mm | |||||||
| Super silent noise<50dB from 1 Meter; Materials:pump head Nylon, membrane EPDM / PTFE, valve EPDM / FPM: Good resistance and tolerance with alcohol, acid, alkali, oxidant, ketone and fat, etc. Poor oil resistivity. | |||||||
| Motor type and code:"C":Coreless brushless DC motor with dual ball bearings (long lifetime>15,000hours) "D": Coreless brushless DC motor with dual ball bearings + outside controller (long lifetime>15,000hours);pump with outside controller can realize functions of PWM 0~5V speed adjustment, brake, instant starting work ; inner controller is no additional functions. | |||||||
2. Portable Analytical Instruments
3. Medical Diagnostic Equipment
4. Air Quality Sampling Monitors
5. Respiration Monitors
6. Gas or Odor Leak Detectors
TOPSFLO Other Micro DC Pump
| TD5 Micro solar dc circulation pump |
| | TS5 Micro solar dc circulation pump |
| | TL-B04H Micro brushless centrifugal pump |

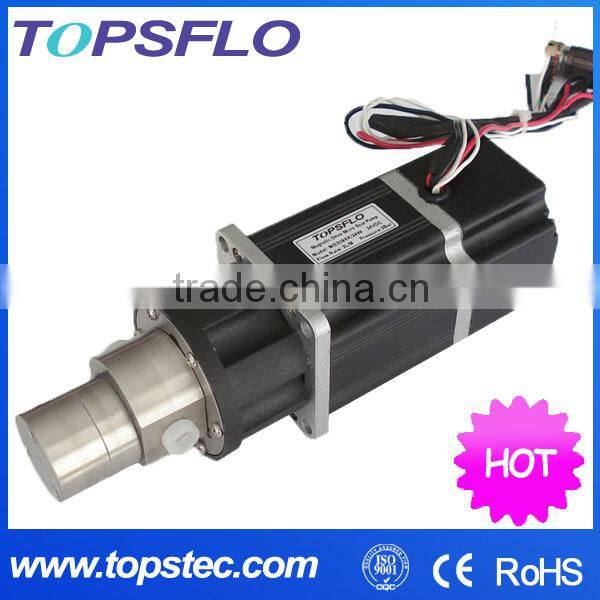

| MG200XK/DC24WI Micro magnetic drive gear pump |
| TF30B-D Micro diaphragm vacuum / liquid pump |
| TMD40-F Micro diaphragm air pump(double head) |
For more detail,please feel free contact us!
