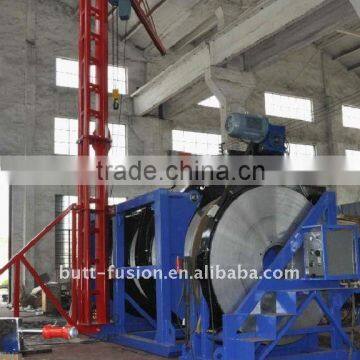

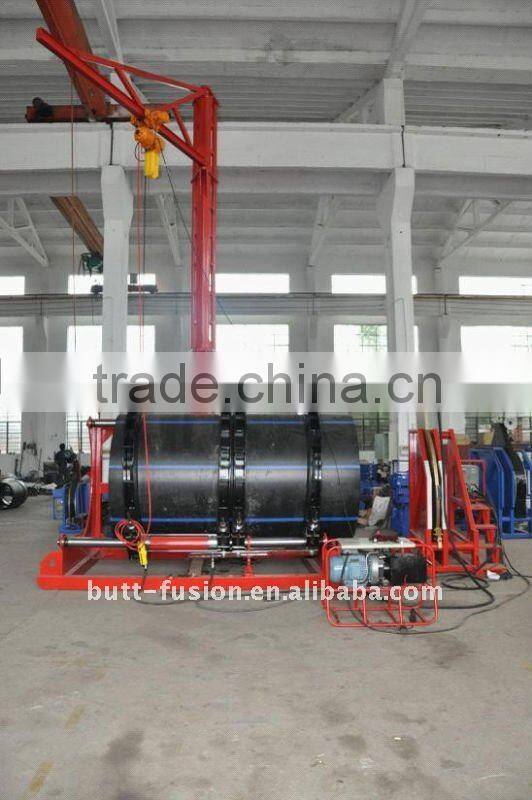

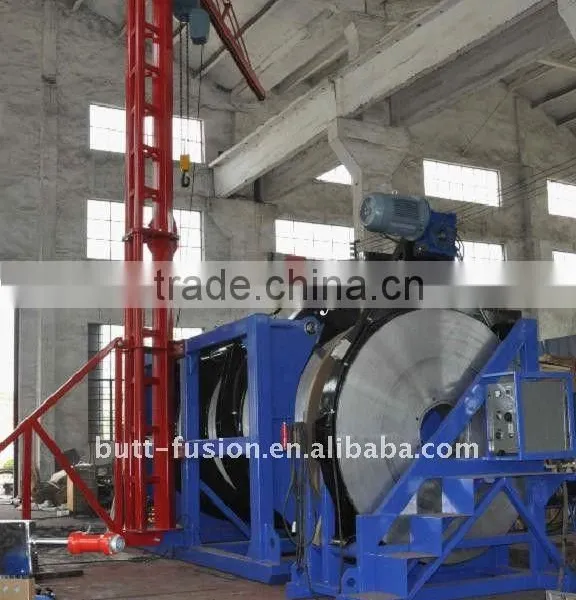

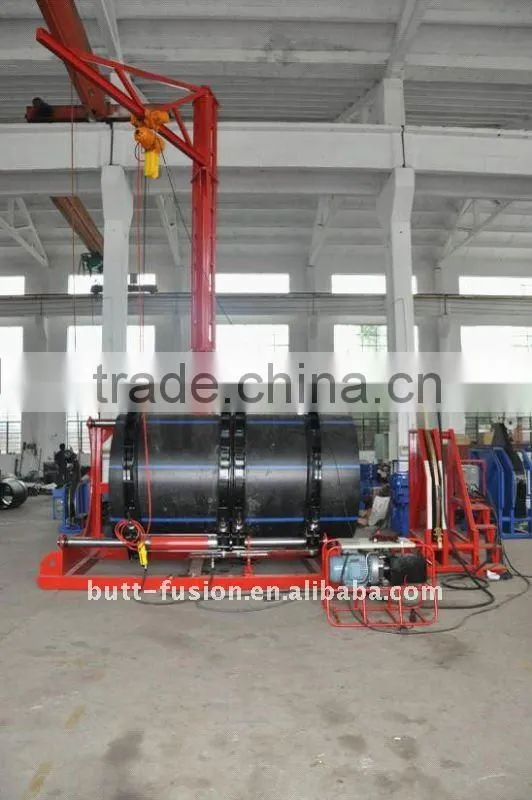

RDH1600 Platic Pipe Butt Welder
- SHANGHAI
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | YUDA | |
| Model Number | RDH1600 | Input Voltage | 380V | |
| Dimensions | 0.68CBM | Usage | PE,PP,HDPE,PPR butt fusion |
Product Description
Specifications
RDH1600 Platic Pipe Butt Welder1. welding range : from 1000mm~ 1600mm
2.application: water,gas,irrigation,drainage
RDH1600 Platic Pipe Butt Welder
PE Pipe Welding Machine, But Fusion Welding Machine, Hot-melt Welding Machine, Hydraulic butt fusion welding machine. Hydraulic butt welding machine, HDPE butt fusion machine. Welding machine. Butt fusion Equipment
Application:
Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex
working condition.
Features:
1. The machine body is equipped with four main clamps with the third clamp axially moved and adjusted.
2. Removable PTFE coated heating plate with separate temperature control system.
3. Electric milling cutter with reversible double cutting edge blades.
4. Hydraulic unit provides welding machine with compressing power.
5. Be made of lightweight and high strength material; simple structure and easy to operate.
6. Low starting pressure ensures reliable welding quality of small pipes.
7. Separate two-channel timer shows time in soaking and cooling phases.
8. High-accurate and shockproof pressure meter indicates clearer readings.
RDH1200 butt fusion machine
Welding ranges 63mm—75mm—90mm-110mm-125mm-140mm-160mm Ranges of application PE,PP and PVDF Working voltage ~220V ±10%,50Hz Environment temperature -10° ~ 45° Total power planing tool: 0.7 kW, heating plate: 1 kW , hydraulic unit motor: 0.75kW components basic frame, heating plate, planing tool, and support (for planing tool & heating plate) heating plate characteristics PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°. Other devices Electronic count-down timers for heating and cooling time.
Welding ranges | 800mm—900mm-1000mm-1200mm | ||||||||||||||
Ranges of application | PE,PP and PVDF | ||||||||||||||
Working voltage | ~380V ±10%,50Hz | ||||||||||||||
Environment temperature | -10° ~ 45° | ||||||||||||||
Total power | planing tool: 3 kW, heating plate: 29.2 kW , hydraulic unit motor: 3.0kW , hoist motor: 0.5KW | ||||||||||||||
components | basic frame, heating plate, planing tool, hydraulic unit, support (for planing tool & heating plate) and hoist | ||||||||||||||
heating plate characteristics | PTFE coated heating plate, adjustable knob for temperature control, difference in heating plate surface temperature ≤±7°. | ||||||||||||||
Other devices | Electronic count-down timers for heating and cooling time. |
