Specifications
1. RDHS160/50 manual butt fusion welding machine2. welding range: 50~160mm
3. usage: construction, irrigation,water,gas.

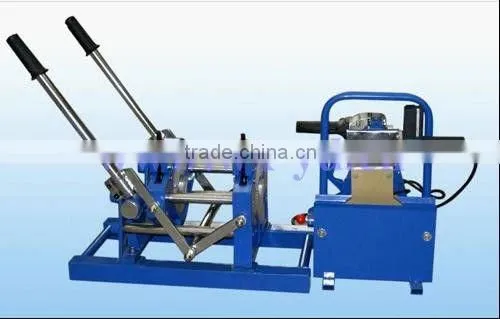

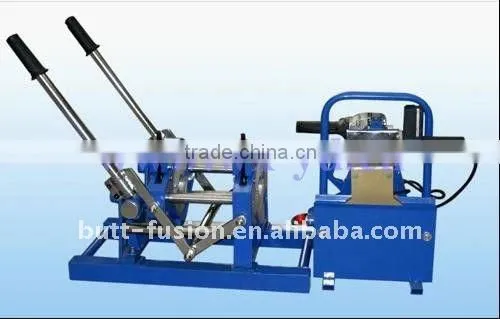

RDHS 160/50 Manual butt fusion welding machine
HDPE plastic pipe welding machine, HDPE pipe butt fusion machine, HDPE pipe welding machine, PP pipe butt welding machine, manual butt fusion machine
Application:
Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex
working condition.
Feature:
1.Removable PTFE coated heating plate with separate thermometer for reading the working temperature.
2.Electrical-controlled milling cutter for leveling the ends of pipe or fitting.
3.Be made of lightweight and high strength material,simple structure and easy to operate.
4.Welding ranges: plastic pipes: 50mm-160mm(50mm-63mm-75mm-90mm-110mm-125mm-140mm-160mm)
Ranges of application: PE,PP and PVDF
Working voltage: ~220V ±10%,50Hz
Total power: 1.7 kW , including: planing tool: 0.7 kW, heating plate: 1.0 kW
Working voltage: ~240V ±10%,50Hz
PTFE coated heating plate, adjustable temperature control knob, difference in surface temperature ≤±3°, handy operation.
Environment temperature: -10° ~ 45°
Whole machine consists of basic frame, heating plate, planing tool, and support (for planing tool & heating plate)
