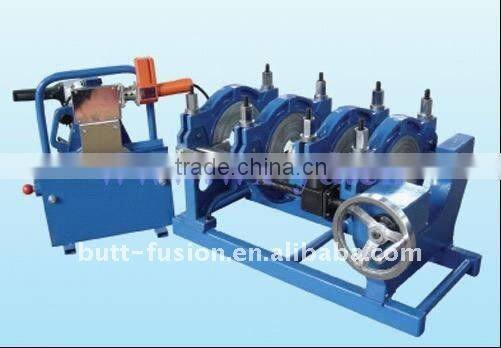

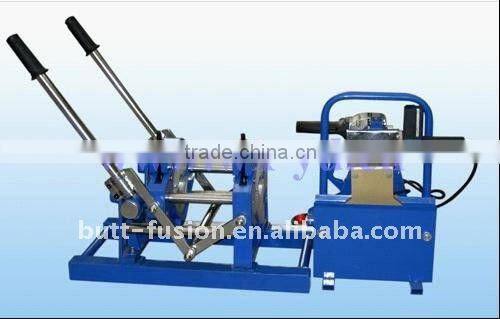

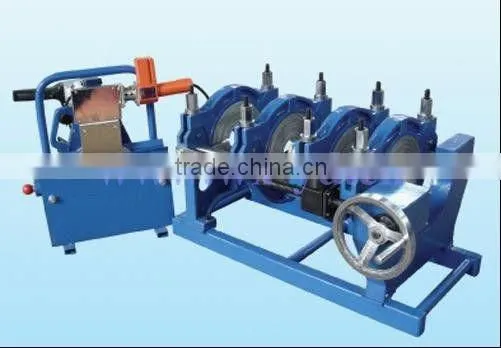

RDHS200 manual butt fusion welding machine

Specifications

1. RDHS200/63 manual butt fusion welding machine
2. welding range: 63~200mm
3. usage: construction, irrigation,water,gas.

RDHS 20063 Manual butt fusion welding machine

HDPE plastic pipe welding machine, HDPE pipe butt fusion machine, HDPE pipe welding machine, PP pipe butt welding machine, manual butt fusion machine. Butt Joint Machine. Hot-melted fusion machine



Application:

Suitable for welding of plastic pipes and fittings made of PE,PP,PVDF and can be operated in any complex

 working condition.



Feature:

1.Removable PTFE coated heating plate with separate thermometer for reading the working temperature.

2.Electrical-controlled milling cutter for leveling the ends of pipe or fitting.

3.Be made of lightweight and high strength material,simple structure and easy to operate.

4. Welding ranges: plastic pipes: 63mm-200mm

(63mm-75mm-90mm-110mm-125mm-140mm-160mm-180mm-200mm)





Ranges of application: PE,PP and PVDF



Working voltage: ~220V ±10%,50Hz



 Total power: 2.5 kW , including: planing tool: 0.7 kW,  heating plate: 1.8 kW



Working voltage: ~240V ±10%,50Hz



PTFE coated heating plate, adjustable temperature control knob, difference in surface temperature ≤±3°, handy operation.



Environment temperature: -10° ~ 45°



Whole machine consists of basic frame, heating plate, planing tool, and support (for planing tool & heating plate)
