SMD or DIP outdoor double side full color LED display screen best price
- 3000 Square Meter / Square Meters per Month
- shenzhen
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
double side full color advertising LED display screen for street school
-
Double Side Advertising Steel LED Backlit Billboard Structure fixed on street pillar
-
Shopping center community outdoor double side full color LED display hot sale
-
led display factory outdoor advertising double side led screen/front open sign good for maintanence
-
double side full color led display, double sided led digital billboard led double sided screen
-
double sided street full color led billboard led double sided
Product Details
Place of Origin | Guangdong, China | Brand Name | IRIS | |
Model Number | P10-NO309 | Usage | Outdoor | |
Tube Chip Color | Full Color | Display Function | Video | |
Pixels | 10mm | Screen Dimension | customized |
Product Description
SMD or DIP outdoor double side full color LED display screen best price
Features:
1. High brightness. Use DIP LEDs, keeps the display content visible even if facing the strong sunshine directly.
2. With Anti-UV ray mask, the color of the mask would never change even if under exposure of UV ray.
3. Waterproof design, completely outdoor use.
4. Easy for assembling and connection with the connector added.
5. High color uniformity and clear image can bring you a vivid audio visual effect.
6. Both front and rear access are available.
7. Good LED Chips, with large viewing angle, lowe power consumption and good color uniformity.
8. Easy for maintenance.
9. Good quality raw material, accurate technique and careful inspection insures the high quality of led display.
10. Different shape and size can be made according to your requirement.
11. Items: P10, P12, P12.5, P16, P20, P25 etc.
12. Widely used for building, shopping mall, cinema, station, stadium, plaza, street etc.
Item | Parameter | |
Pixel | Physical pixel Pitch: 10mm | |
Pixel Configuration: 1R1PG1PB | ||
Lamp | Wave | |
R | 618-628nm | |
G | 520+/-2.5nm | |
B | 470+/-2.5nm | |

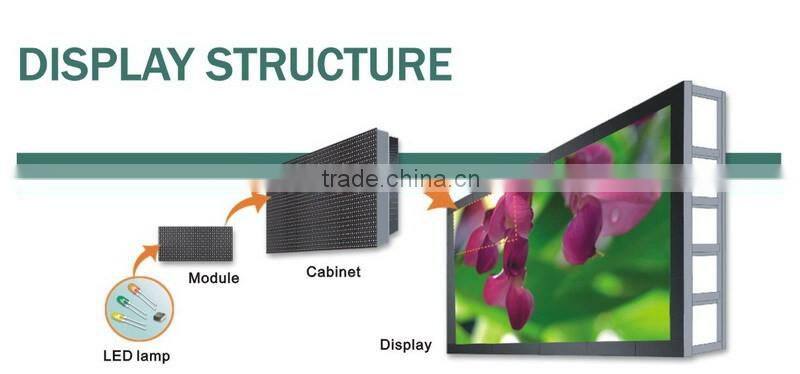

Module | Size: 160×160 mm | |
Resolution: 16×16 dots | ||
Cabinet | Size: 640×640×150mm | |
Physical Resolution: 64×64 dots | ||
Physical Density: 4096 dots | ||
Module Quantity: 16 pcs/Cabinet | ||
Material: Iron/AL | ||
Weight: 40kg (Iron)/30kg(AL) | ||
Average Power Consumption: 600W | ||
Max Power Consumption: 1000W | ||
Electricity Parameter | Brightness:≥68,00cd/m2 | |
Physical Density:10,000dots/m2 | ||
Whole Display Flatness:≤1mm juncture | ||
Best View Distance:≥10m | ||
Best View Angle: Horizontal: +/-120°Vertical: +/-50° | ||
Storage Temperature: -35+85; Working Temperature: -20+50 | ||
Driving Method: Constant Driving Current | ||
Refresh Frequency: 300HZ | ||
Humidity(RH):≤90~95% | ||
Protection Grade: IP65 | ||
Power Supply: AC 110V240V, 50/60HZ | ||
MTBF: 10,000hours | ||
Screen Lifetime: 100,000 hours | ||
Control System | Control System: LCF Studio 2009 | |
Communication Distance: Internet cable:≤200m or Fiber cable: 1,000m or Wireless |
Led module
Led cabinets
Installation
Waterproof test
Screen case
Production Process & Production Testing
Our company and certification
Our core value is to create the maximum value for our customers. So we design novel and creative products for the market.
1. IRIS is a professional LED display solution offer, designer & manufacturer founded by 8 key engineers of LED display industry.
2. Our seles tracking your order all the time, provide photos and videos for you.
3. Professional QC team: Double module/display aging time, vibration test, waterproof test, high & low temperature test and so on.
4. Technology training on the web or in the factory.
5. CAD drawing file for your projects and other expert suggestion.
6. What we supply is not only highly reliable products, but more professional Solutions & extended Services.
7. We have 4 engineers who have been working in LED display industry for over 12 years.
8. We are good at customized, complicated and integrated systems.
9. Our 15 experienced engineers are waiting for supporting you.
10. We have already done over 1000 projects all around the world.
