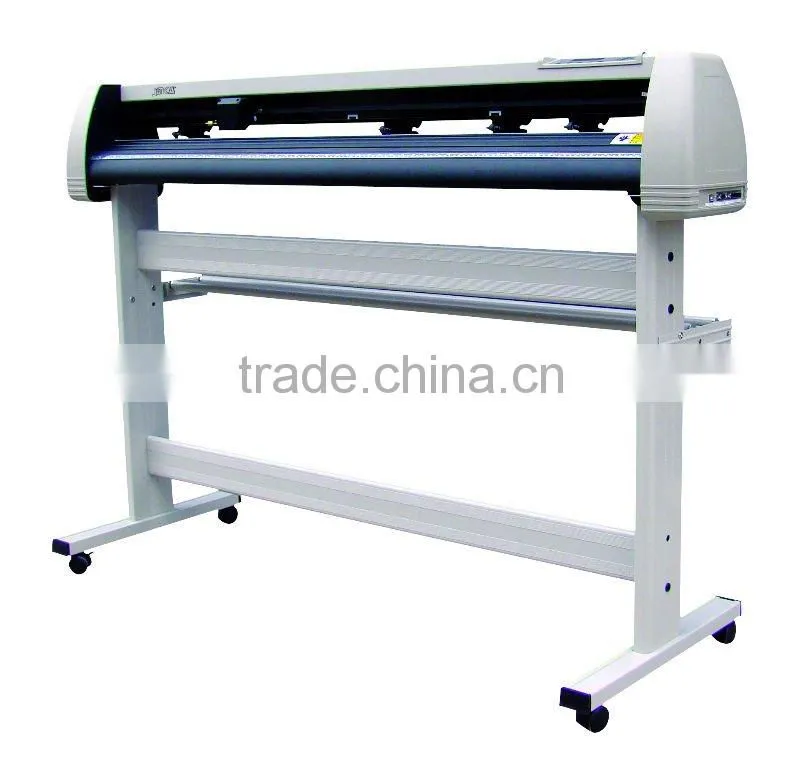

China a3/ a4/ 1350 cutting plotter
Model |
LdY720 (24 inches) |
LDY850 (30 inches) |
LD1100 (40 inches) |
LDY1350 (48 inches) |
Media Way |
M Brackets |
M Brackets |
Stand |
Stand |
Main Board |
High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip) |
|||

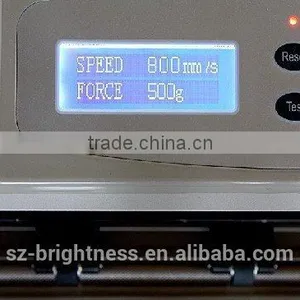

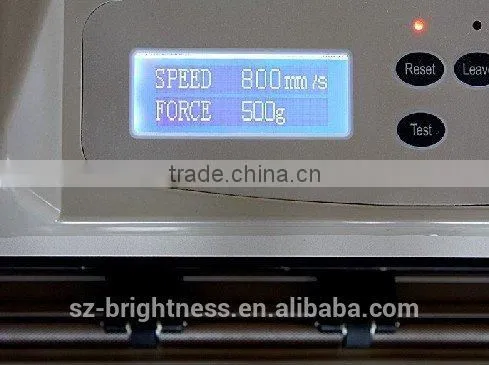

Control Panel |
16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable |
|||
Driver |
High speed stepping motor, micro-step driver |
|||
Positioning Mode |
Precision electronic Bounded System, random original point setting |
|||
Maximum Paper Feed Width |
720mm |
850mm |
1100mm |
1350mm |
Maximum Cutting Width |
620mm |
750mm |
1000mm |
1250mm |
Maximum Cutting Speed |
650mm/s |
|||
Maximum Cutting Length |
20000mm |
|||
Cutting Force |
0-1000g (digital adjustment) |
|||
Mechanical Precision |
0.05mm |
|||
Repeatable Precision |
< +-0.1mm |
|||
Type of Tool |
Steel cutter blade |
|||
Type of Plot pen |
All types diameter 11. 4mm plotter pen |
|||
Plotter Instruction |
DM-PL/HP-GL Automatic Identification |
|||
Interfaces |
USB/ SD Card / Serial port |
|||
Power Supply |
AC110V /220V±10%, 50Hz/60Hz |
|||
Power |
< 100W |
< 120W |
||
Red Dot Positioning |
Positioning using red dot, contour cutting function; Compatible with FLEXI8, SIGNCUT |
|||
Noise at Work |
≤75 DB |
|||
Features:
1. Use ARM 13 High-performance intelligent controller.
2. Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.
3. Smooth operation of advanced high-speed cutting function
4. Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.
5. Strong cutting pressure, it can cut high-strength grade reflective film material
Related products:
Desktop mini contour cuttter plotter
Jinka cutter plotter
Automatic grommet machine
Banner Welder
1. We have the technology departments, Its able to solve technical problems on time
2. We have rich experience and professional of advertising equipment and heat transfer equipment
3. Special appearance and structure not only practical, but also fashion
4. We have been update products anytime.lets customers have more choices
5. We have very good after sale service, we provide service of one year warranty
Shenzhen Brightness Electronic Technology Co., Ltd. from its inception in 2006, has been committed to production and sales of professional advertising equipment and heat transfer equipment. we export to Southeast Asia, the Middle East, Africa, Europe, America and other parts of the world and gain fame from Chinese and foreign clients.Brightness hold the spirit of high-tech, high-quality, good service, dedicating to providing the best products and service for customers. "Learning, innovation, cooperation and upgrading"is our corporate philosophy.During building a friendly cooperation with internal and external partners, our step never cease to improve quality of products and service, enhance corporate image , promote company and social efficiency, aiming to create a win-win situation and tailor the right solution for our customers. Brightness will serve old and new customers better with the unswerving technology advantage and market style, move on for the more prosperous future.
1.How about the products of Warranty ?
·We provide main parts of products about one year warranty when you use it by normally
2. Are u manufacturers?
·Yes .we produce most of products and accessories we also have our factory
3.Whats kind of payment you accept ?
·We can accept many payment such as:T/C T/T Western Union Paypal and so on
4.Why choose us ?
·Our machine export to over 60 countries ,we have rich experience to do the export and the stability of the machine won great reputation from our clients
·If any technical issues, you can contact with our technician directly. They will help you solve the problem by Skype or email. So you can rest assured about the after service.
·We provide free training in our factory or company .
5.How to order ?
·After confirmed order details ,we will make Commercial invoice for you .
·We will prepare and arrange the delivery for your goods ASAP once check your payment
