Specifications
sticker cutting plotter with Artsign1.can contour the image
2.with the interface of USB/SD Card / Serial port
sticker cutting plotter with Artsign
1.infrared cutting plotter
2.can contour the image
3.with the interface of USB/ SD Card / Serial port / LDY850 with the max working size of 750mm .
Features:
1. Use ARM 13 High-performance intelligent controller.
2. Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.
3. Smooth operation of advanced high-speed cutting function
4. Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.
5. Strong cutting pressure, it can cut high-strength grade reflective film material
Spectification :
1.Main board : High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip)
2.Control Panel:16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable
3.Driver:High speed stepping motor, micro-step driver
4.Positioning Mode:Precision electronic Bounded System, random original point setting
Model |
LD330 (12 inches) |
LD630 (24 inches) |
LD1100 (48 inches) |
Media Way |
M Brackets |
M Brackets |
Stand Floor Stand |
Main Board |
High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip) |
||
Control Panel |
16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable |
||
Driver |
High speed stepping motor, micro-step driver |
||
Positioning Mode |
Precision electronic Bounded System, random original point setting |
||
Maximum Paper Feed Width |
415 mm |
730mm |
1300mm |
Maximum Cutting Width |
330 mm |
635mm |
1205mm |
Maximum Cutting Speed |
650mm/s |
||
Maximum Cutting Length |
20000mm |
||
Cutting Force |
0-1000g (digital adjustment) |
||
Mechanical Precision |
0.05mm |
||
Repeatable Precision |
< +-0.1mm |
||
Type of Tool |
Steel cutter blade |
||

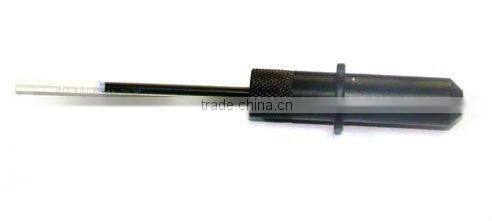

Type of Plot pen |
All types diameter 11. 4mm plotter pen |
||
Plotter Instruction |
DM-PL/HP-GL Automatic Identification |
||
Interfaces |
USB/ SD Card / Serial port |
||
Power Supply |
AC110V /220V±10%, 50Hz/60Hz |
||
Power |
< 100W |
< 120W |
|
Red Dot Positioning |
Positioning using red dot, contour cutting function; Compatible with FLEXI8, SIGNCUT |
||
Noise at Work |
≤75 DB |
||
External Dimension |
900*400*350mm |
1100*390*370mm |
1660*390*430mm |
Shipping Weight |
26kg |
32kg |
56kg |
