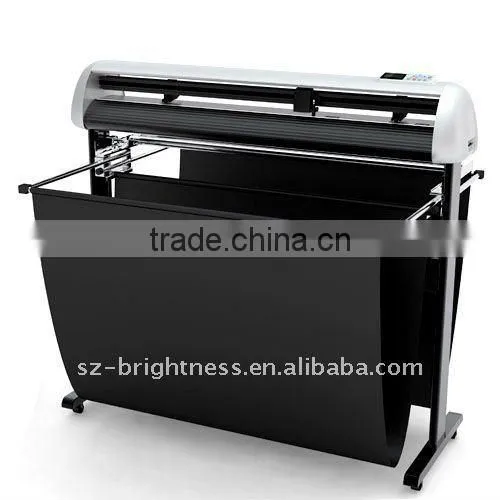

USB Vinyl Cutting Plotter With Red Dot

Name: USB Vinyl Cutting Plotter With Red Dot
Brand: Brightness
SKU: 121974989

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Anhui, China

Brand Name:

Brightness

Model Number:

LDY720

Shenzhen Brightness Electronics Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Anhui, China

Brand Name Brightness

Model Number LDY720

Specifications

USB Vinyl Cutting Plotter with Red Dot
1.Infrared cutting plotter with contour cutting function
2.Flexi 10 software

USB Vinyl Cutting Plotter with Red Dot

Use ARM 13 High-performance intelligent controller.

Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.

Smooth operation of advanced high-speed cutting function

Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.

Strong cutting pressure, it can cut high-strength grade reflective film material

Parameters:

Model	LdY720 (24 inches)	LDY850 (30 inches)	LD1100 (40 inches)	LDY1350 (48 inches)
Media Way	M Brackets	M Brackets	Stand	Stand
Main Board	High-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip)
Control Panel	16*4 character LCD display, 10 silica gel buttons, easy-to-use and durable
Driver	High speed stepping motor, micro-step driver
Positioning Mode	Precision electronic Bounded System, random original point setting
Maximum Paper Feed Width	720mm	850mm	1100mm	1350mm
Maximum Cutting Width	620mm	750mm	1000mm	1250mm
Maximum Cutting Speed	650mm/s
Maximum Cutting Length	20000mm
Cutting Force	0-1000g (digital adjustment)
Mechanical Precision	0.05mm
Repeatable Precision	< +-0.1mm
Type of Tool	Steel cutter blade
Type of Plot pen	All types diameter 11. 4mm plotter pen
Plotter Instruction	DM-PL/HP-GL Automatic Identification
Interfaces	USB/ SD Card / Serial port
Power Supply	AC110V /220V±10%, 50Hz/60Hz
Power	< 100W		< 120W
Red Dot Positioning	Positioning using red dot, contour cutting function; Compatible with FLEXI8, SIGNCUT
Noise at Work	≤75 DB
External Dimension	1123834cm	1253834cm	1503834cm	1753834cm
Shipping Weight	26kg	29kg	33kg	36kg
