Specifications
infrared vinyl cutting plotter with serial port1.Work independently without connect to computer
2.intelligent controller
infrared vinyl cutting plotter with serial port

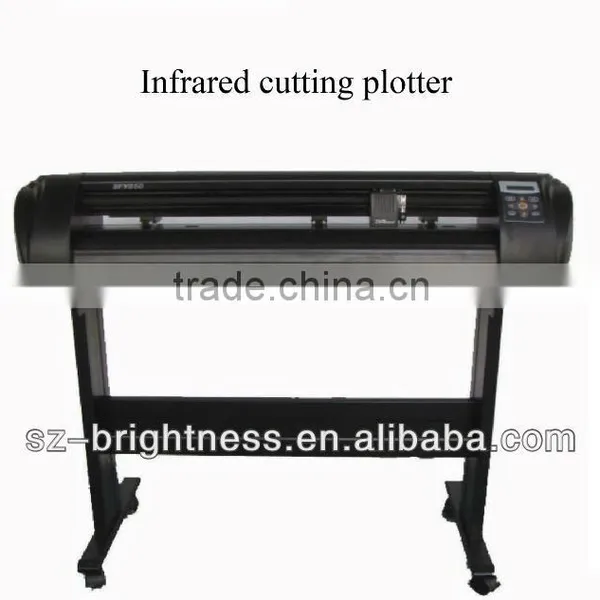

Infrared PVC cutter plotter
It can do contour cutting and contouring on vinyl, adhesive paper, PVC etc with the advanced red dot positioning.
Features:
1. Use ARM 13 High-performance intelligent controller.
2. Exact positioning using Red Dot, with the registration mark detection to ensure accurate contour cutting.
3. Smooth operation of advanced high-speed cutting function
4. Work independently without connect to computer, high-capacity SD output interface and USB / serial port for diverse choices.
5. Strong cutting pressure, it can cut high-strength grade reflective film material
6. With the professional cutting plotter software, Artcut software, it can do contouring or contour cutting perfectly.
Parameter
Max paper width: 1350mm
Max cutting size: 1250mm
Max cutting length: 20000mm
Cutting speed: 800mm/s
Cutting force: 0-1000g (digital adjustment)
Cutting software: Artcut
Advanced technology: red dot positioning, DM-PL/HP-GL Automatic Identification
Main Board: high-performance & intelligent ARM 32 CPU ( 200 times faster than 51 chip)
Driver: high speed stepping motor, micro-step driver
Positioning Mode: precision red dot positioning System, random original point setting
Power Supply: AC110V /220V±10%, 50Hz/60Hz
Max power:100W
Repeatable Precision: < +-0.1mm
Mechanical Precision: 0.05mm
Display:16*4 character LCD display
Certificate: CE certificte
Blade type: Steel cutter blade
Pen type: diameter 11. 4mm plotter pen
Film type: Self-adhesive vinyl film, fluorescent film, reflective film, paper
Connection: USB/SD card/ serial
Noice at work: <=75DB
Cutting machine accompanied by: three cutting blades
vinyls for cuttingplotter is also available.
