Help CenterGraph Cutting Plotter 1.6m Cutting Width of Stepper
Related Products
Specifications
Graph Cutting Plotter1.1660mm cutting width
2.Cutting at a high speed with stepping motor subdivision drive
3.low noise
Graph Cutting Plotter
BY1750 vinyl cutting plotter Specification:
| Machine detail: | |
| Model | BY1750 |
| Max paper width | 1750mm |
| Max cutting width | 1660mm |
| Cutting speed | 12mm/s-375mm/s |
| Cutting force | 0-400G |
| Buffer capacity | 128K-2M |
| LCD | Yes |
| CPU | 8-bit CPU |
| Strip of plotter | Plastic sheet |
| Drive | Stepping |
| Maximum media thickness | 0.25mm(10mlls) |
| Maximum cutting speed | 40cm/s((17ips) in al directions |
| Maximum acceleration | 4m/s² |
| Maximum character matrix | Approx 5mm(0.2") high |
| Blade type | Super steel (1.2mm) |
| Pen type | Water-base fibertip |
| Film type | Self-adhesive vinyl film, fluorescent film, reflective film, paper |

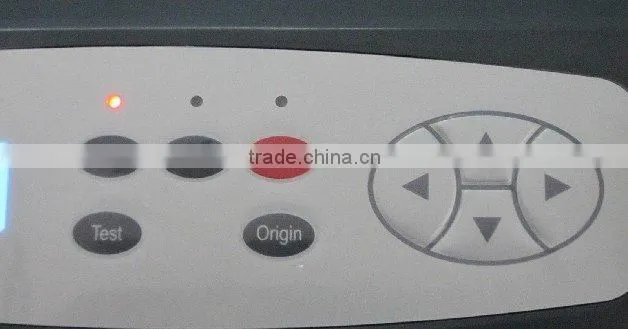

| Display panel | 8 digits*2 line LCD |
| Offset | 0-1mm |
| Interfaces | Parallel serial |
| Power requirements | AC90V-AC240V 50HZ-60HZ 60W |
| Power consumption | 60W max |
| Repeatability | 0.127mm |
| Mechanical resolution | 0.0254mm/step |
| Commands set | DMPL |
| Environmental temperature | 0-35°C |
| Environmental humidity | 5%-65% (without condensation) |
Feature:
1.streamlined fuselage, elegant appearance with solid main body,the surface is not worn and torn to fade through special-purpose processing.
2.Easy operation for you ,adopting new microstep to subdivide algorithms.
3. highly cutting quality while cutting at a high speed, the curve is smooth and more evasive.
4.Artcut Softwae has the capacity to adjust the cutting precision to solve and prolong the inconsistent
problems of size differently when all kinds of materials of malleability are cut.
5.. Improve shock attenuation and subdue the sound device, reduce the noise further, but the power of the motor is not reduced.
6.Leather card special purpose interface software, can accept AUTOCAD, CORELDRAW file that software output.
7.Passing national security, performance and environment test in an all-round way, performance is more reliable.
Roland bladecarriage(white or black color)
carriage, pen holder and pen pen holder
