P20 DIP led display module 160*320
Our advantages below
1. Have cooperated with a lot of importers in the world.
2. Experienced in doing business with big customers.
3. Quick delivery time for decent orders.
4. Own designing team for new products development.
5. Factory audited by BYD which the biggest Automobile factory in China.
Function
1. Good image
2. Score system
3. Live telecast,live broadcast
4. Convenient install
LED Display Parameters
| NO. | Item | Parameter |
| 1 | Module type | P20 |
| 2 | Pixel pitch | 20mm |
| 3 | Pixel density | 2500 dots/sqm |
| 4 | LED package | DIP346 |
| 5 | Pixel configuration | 1R1G1B |
| 6 | Module resolution | 16*8dots |
| 7 | Module demmension | 320mm*160mm |
| Cabinet Parameter | ||
| NO. | Item | Parameter |
| 1 | Dimmension | 1280*960mm |
| 2 | Physical resolution | 64*48dots |
| 3 | Module quantity | 20pcs/sqm |
| 4 | Weight | 60kg/pc |
| 5 | Material | Iron/Aluminum |
| Screen Parameter | ||
| NO. | Item | Parameter |
| 1 | Red wavelength | 625±5nm |
| 2 | Green wavelength | 525±2.5nm |
| 3 | Blue wavelength | 470±2.5nm |
| 4 | Brightness | 7500-9000cd/sqm |
| 5 | Horizontal viewing angle | 110 degrees |
| 6 | The best viewing distance | 20m |
| 7 | Max power consumption | 750W/sqm |
| 8 | Color display | 10.7billion |
| 9 | Driving method | Constant current; static scan |
| 10 | Refresh rate | 4000HZ |
| 11 | Frame rate | 60HZ |
| 12 | Lifespan | 100,000hours |
| 13 | Blind LED lamp rate | <0.00001 |
| 14 | Input Voltage | AC100-120V;AC200-240V; |
| optional | ||
| 15 | Working environment | Temperature: -20°C~ 60°C; |
| Humidity:10%~90% | ||
| 16 | Waterproof | IP65 |

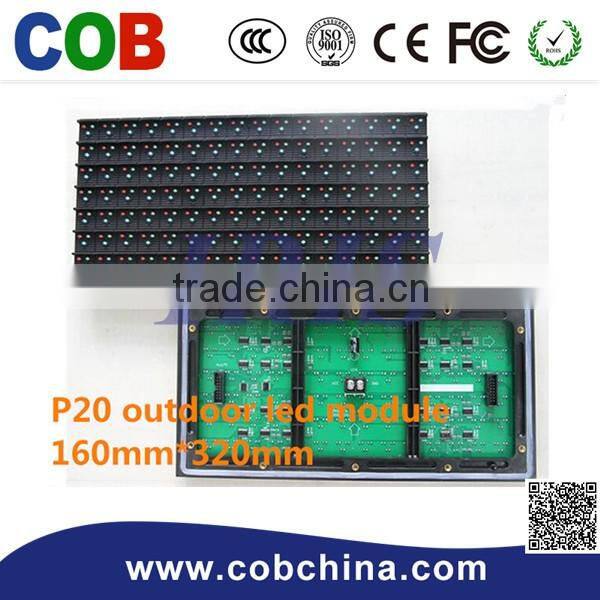

LED Screen Module
Cabinet Details
Screen Case

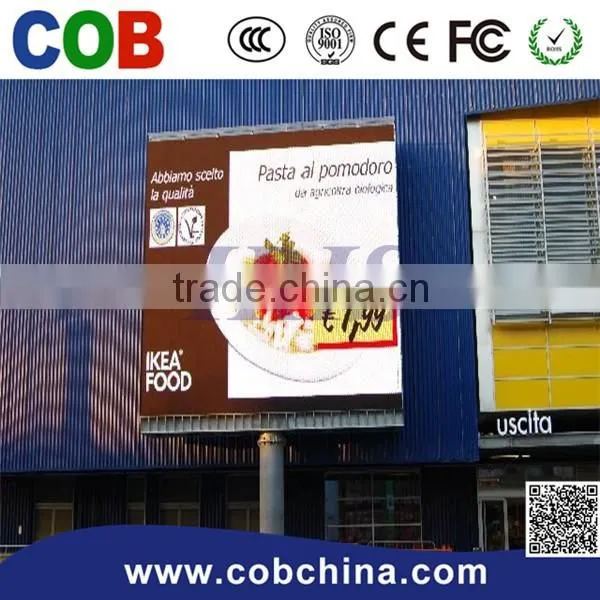

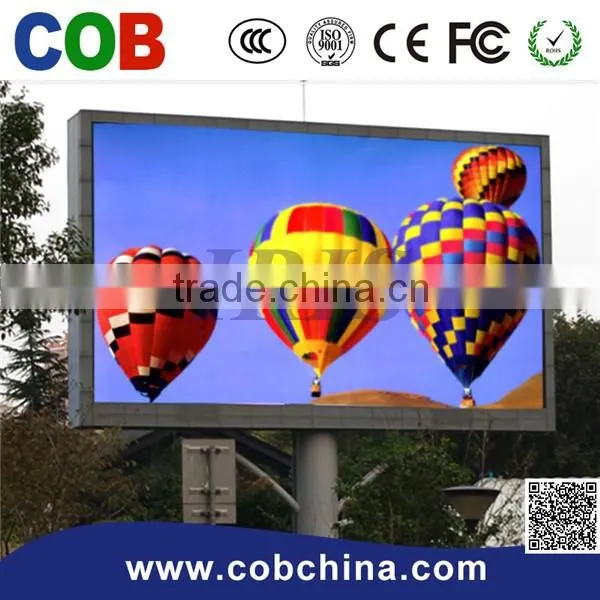

installation
You may also like the following products
|
RGB outdoor P16 led advertising screen
|
Indoor usage indoor P6 LED display
|
New stage background activity P4 led screens
|
Production Process & Production Testing
our company and certification
IRIS Technology Co.,Ltd was found in early 2007 . IRIS committed to the next generation of LED optoelectronic products development, production, sales and service. It is leading the trend of LED industry and providing a full range of solutions to its customers. It has become a modern, large scale, professional LED Photoelectric comprehensive product integration supplier. The products sell well in over 50 countries and regions in Europe, America and Middle East, besides more than 20 provinces across China.
Our core value is to create the maximum value for our customers. So we design novel and creative products for the market.
1. IRIS is a professional LED display solution offer, designer & manufacturer founded by 8 key engineers of LED display industry.
2. Our seles tracking your order all the time, provide photos and videos for you.
3. Professional QC team: Double module/display aging time, vibration test, waterproof test, high & low temperature test and so on.
4. Technology training on the web or in the factory.
5. CAD drawing file for your projects and other expert suggestion.
6. What we supply is not only highly reliable products, but more professional Solutions & extended Services.
7. We have 4 engineers who have been working in LED display industry for over 12 years.
8. We are good at customized, complicated and integrated systems.
9. Our 15 experienced engineers are waiting for supporting you.
10. We have already done over 1000 projects all around the world.
