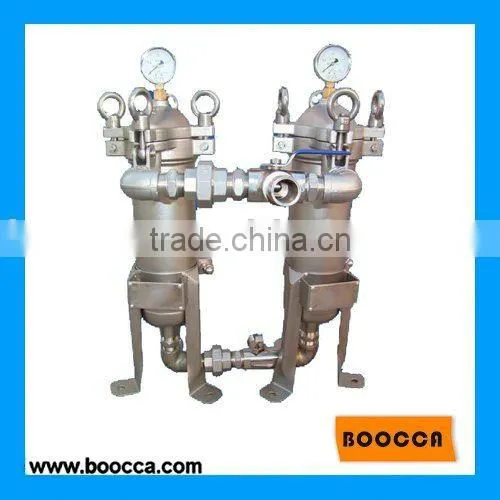

Help CenterDuplex Bag Filter
Related Products
Specifications
Excellent effect on bypass leakage and easy for installationDuplex Bag Filter
Excellent effect on bypass leakage and easy for installation
Main Feature:
• ASTM SS304 or SS316 stainless steel iron construction for best chemical compatibility and corrosion resistance.
• Two styles of surface finish (both inside and outside): electro-polish or Bead blasted.
• Patent design to prevent bypass leakage.
• For filter bag size 2#
• Accessories included: air release valve, pressure gauge.
Specification
Model |
BF-D-1C |
BF-D-2C |
BF-D-1S |
BF-D-2S |
Max Flow (m3/h) |
40 |
80 |
40 |
90 |
Filtration Area (m2) |
0.5 |
1.0 |
0.5 |
1.0 |
Operating data |
Max.10 bar /120°C respectively 12bar/30°C |
Max.10 bar /120°C respectively 16bar/30°C |
||
Filter housing volume (litre) |
15.5 |
27.0 |
16.5 |
29 |
Installation height (mm) |
Approx.850 |
Approx.1120 |
Approx.723 |
Approx.998 |
Filter housing weight (kg) |
Approx.84 |
Approx.95 |
Approx.94 |
Approx.110 |
Connection Type (inlet/outlet) |
2” Flange |
2” Flange |
||
