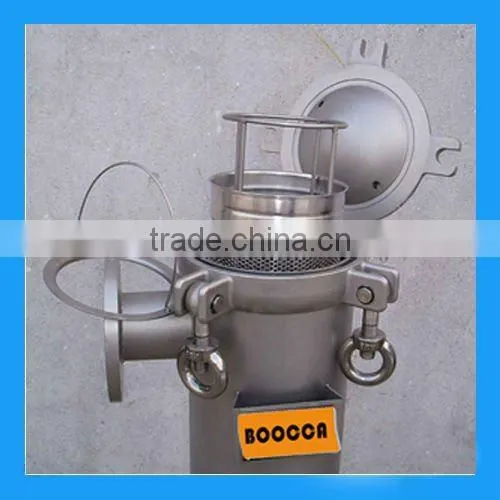

Standard Bag Filter: casting top, without leakage,fluid treament.Main Features
1. Casting top-lid desing, Hermetic seal to prevent liquid bypass
2. 0.5 efficient filtration area, higher filtration efficiency
3. Changing filter bags more easily, lower cost
5. Adjustable-height legs, fit idiographic area need
6. Available in 150psi or 300psi Maximum Working Pressure
7. 90oC or 160oC Maximum Working Temperature
8. Max Flowrate: 45m3/h
9. Material: CS/SS
10. Hinged Lid w/ Handle, Built-in Lid Stop, and Safety Detents
Matched parts
· Perforated S/S Support Basket
· Gauge Ports, Vent Ports, Drain Ports on top
· Buna-N O-Rings sealed
· Optional 1/2/3/4# PE/PP/NO
Specification
Model |
Max. Flow (m3/h) |
Max pressure |
Max Temp |
Pipe Size |
Material |
BF-1S |
20 |
150 psi |
250°F |
DN50 |
304/316 |
BF-2S |
45 |
150 psi |
250°F |
DN50 |
304/316 |
BF-3S |
6 |
150 psi |
250°F |
1" NPT |
304/316 |
BF-4S |
10 |
150 psi |
250°F |
1" NPT |
304/316 |
