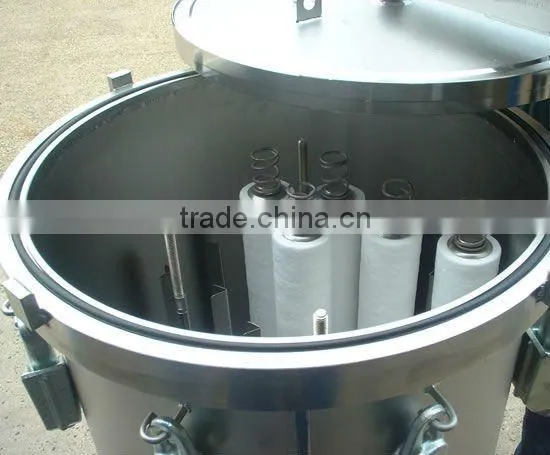

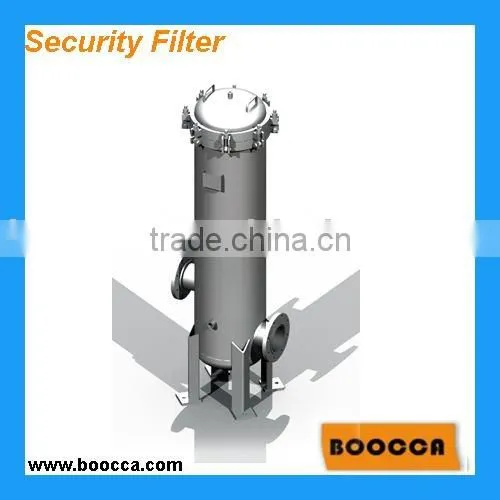

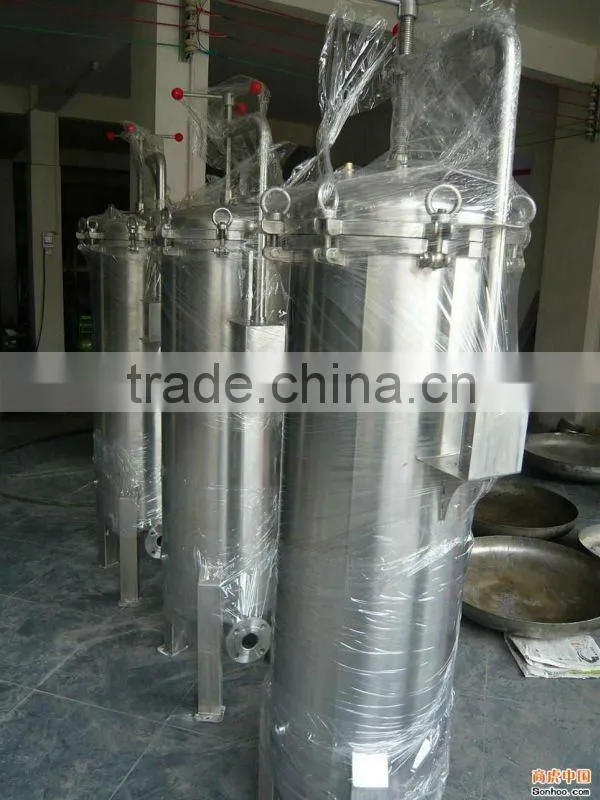

Security Cartridge Filter accept DOE style cartridges. Options include 304 or 316Lstainless steel with swing bolt closure
Description of Security Cartridge Filter
Standard Housings accept DOE style cartridges. Options include 304 or 316Lstainless steel with swing bolt closure and lifting davit.
Technology parameter
• Design Pressure: 100psi (7bar)
• Operating Pressure: 15~90psi (1~6bar)
• Design Temperature: 39~140 °F(4~60)
• Housing Material: 304SS/316LSS
• Piping Arrangement: side in and side out/side in and bottom out
• Standard Cartridge Configuration: DOE
Specification
Cartridge number (core) |
Cartridge length |
A(mm) |
B(mm) |
N1N2 |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
28—30 |
30" |
500 |
700 |
2"–4" |
350 |
350 |
1030 |
1720 |
40" |
500 |
700 |
2"–4" |
350 |
350 |
1280 |
1970 |
|
31—36 |
30" |
550 |
750 |
2"–4" |
350 |
400 |
1050 |
1720 |
40" |
550 |
750 |
2"–4" |
350 |
400 |
1300 |
1970 |
|
37—40 |
30" |
600 |
800 |
2"–4" |
400 |
400 |
1030 |
1720 |
40" |
600 |
800 |
2"–4" |
400 |
400 |
1280 |
1970 |
|
41—50 |
30" |
650 |
850 |
2"–4" |
400 |
400 |
1050 |
1720 |
40" |
650 |
850 |
2"–4" |
400 |
400 |
1350 |
2020 |
|
51—60 |
30" |
700 |
900 |
2"–4" |
400 |
400 |
1100 |
1780 |
40" |
700 |
900 |
2"–4" |
400 |
400 |
1350 |
2030 |
