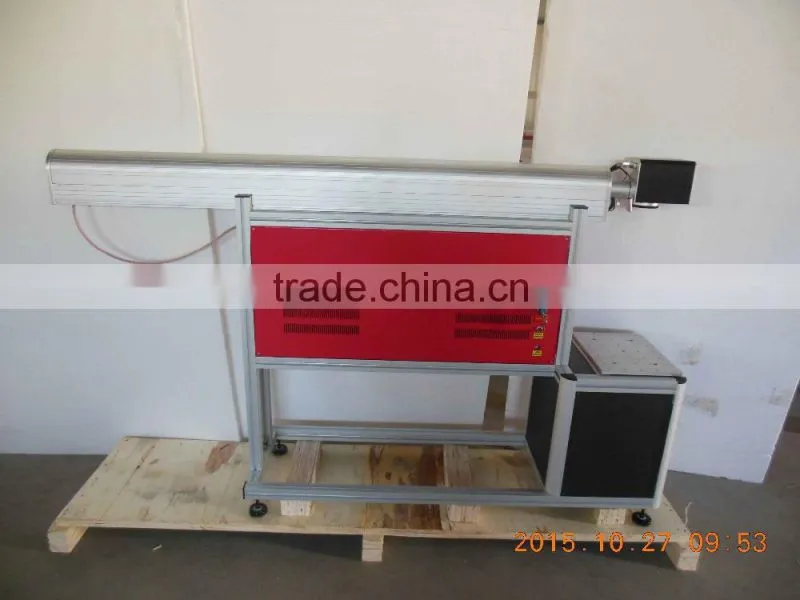

China manufacturer supplier Low price Laser marking machine with good quality laser marker

Name: China manufacturer supplier Low price Laser marking machine with good quality laser marker
Brand: ARTSIGN
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Product Details

Condition:	New	Laser Type:	CO2	Engraving Area:	200*200mm
Engraving Speed:	≤3000mm/s	CNC or Not:	Yes	Cooling Mode:	Water Cooling
Place of Origin:	Shandong, China	Brand Name:	ARTSIGN	Model Number:	GL200
Dimension(LWH):	19504101110	Certification:	CE, ISO	After-sales Service Provided:	Overseas service center available

Technical parameters:

Model	GL160	DB160RF
Max. laser power	Co2 glass tube 40W ,60W,80W,100W, 130W,150W(optional)	Chinese made CO2 RF tube 25W/50W(optional); Imported CO2 RF tube Coherent 30W/50W (optional)
Laser wave-length	10.6um
Laser repetition frequency	≤20KHz
Standard marking area	110110mm/160160mm(standard) 220220/300300/400400//500500mm(optional)
Up and down	Manual up and down 100-200mm optional
Marking depth	≤3mm
Marking speed	≤3000mm/s
Min line width	0.5mm
Min character size	1mm
Repetition accuracy	±0.01mm
Power consumed	<1200W
Supply voltage	AC220/100V±10% 50/60Hz
Cooling method	Water cooled	Air cooled
Software system	Win XP/7/8 32/64bits + EZCAD marker system
Operating temperature	0-30℃
Net weight(kg)	75
Machine size(mm)	19504101110
Gross weight(kg)	150
Packing size(mm)	20405401250

Jinan Artsign Science & Technology Ltd.: Contact nameJackie Dong; Phone86-531-88679028,88690517; Address1-917, Bldg. 88, Huizhan West Rd., High-Tech Zone
