Home > Manufacturing & Processing Machinery > Machine Tools > CNC Machine Tools > VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine

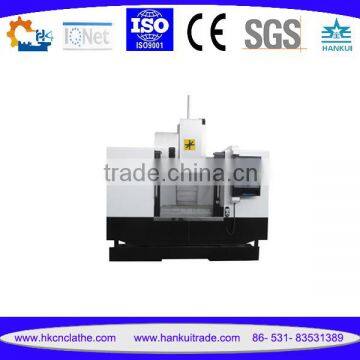

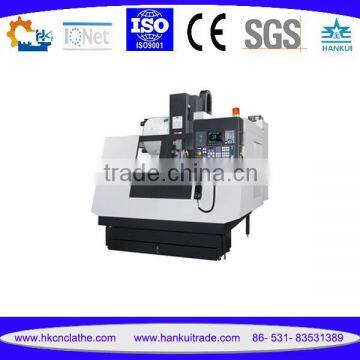

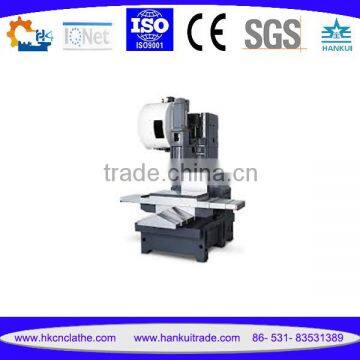

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine

Name: VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine
Brand: Jinan HK
SKU: 121927753
Availability: InStock

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine thumbnail-1

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine thumbnail-2

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine thumbnail-3

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine thumbnail-4

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine thumbnail-5

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine thumbnail-6

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine photo-1

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine photo-2

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine photo-3

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine photo-4

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine photo-5

VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine photo-6

US$ 15,625 - 31,250 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Vertical

Place of Origin:

Shandong, China

Contact Supplier Request Quote Chat Now

Jinan Hankui International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Vertical

Place of Origin Shandong, China

Brand Name Jinan HK

Model Number VMC550L

Voltage 380V/50Hz

Power(W) 5.5kw

Dimension(L*W*H) 2200x1750x2200mm

Weight 2300KG

Certification ISO CE

Warranty 13 Months

After-sales Service Provided Engineers available to service machinery overseas

Product Description

Product Application of VMC550L 3 Axis CNC Rounting Machine Vertical Milling Machine

CNC vertical machining center use popular inverted T-shape column structure, it is morden machine tool with automatic tool changer and 3/4-axis CNC system. Continous & automatic milling, drilling, expanding, hinges and tapping on 4 surfaces' machining processes after once clamped, suitable for medium batch process all kinds of flat surface, hole, complicated surfaces machining.

SPECIFICATIONS FOR CNC VERTICAL MACHINE CENTER VMC550L
Main Performance Parameters	Table Size	mm	800x320
	Load Capacity	Kg	300
	T Slot		3*14
	X Axis Travel	mm	550
	Y Axis Travel	mm	340
	Z Axis Travel	mm	460
	Distance from Spindle Center to Table	mm	100-560
	Distance from Spindle Center to Column Slide Way	mm	410
Spindle	Tool Shank		BT40
	Spindle Speed	rpm	8000
	Spindle Motor Power	kw	5.5
Tool	Max. Diameter of Tool	mm	Φ80/Φ150
	Max. Length of Tool	mm	300
	Max. Weight of Tool	kg	6
Rapid Speed	X/Y Axis Rapid Move Speed	mm	20000
	Z Axis Rapid Move Speed	mm	15000
	Feed Rate	mm/min	1-10000
Accuracy	Pisitoning Accuracy	mm	0.01
Accuracy	Repeated Positioning Accuracy	mm	0.004/300
Dimension and Weight	Out Dimension	mm	2200x1750x2200
Dimension and Weight	Machine Weight	kg	2300

Main Features

1) Rigid base

2) Good durability with cast iron machine bed

3) Advanced guide rail laminating technology

4) High precision, high-rigidity spindle, high speed

5) Automatic lubrication system

6) Fully-closed safe glass window

7) Modular design and optional accessories available

Certifications

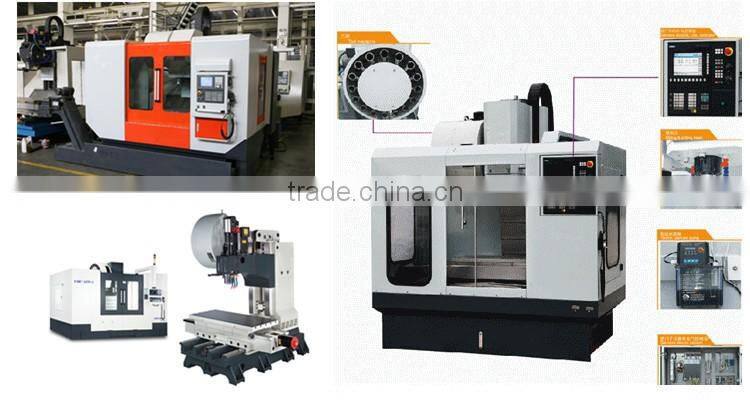

Detailed Images

Machine Parts

Name: Spindle

Brand: ROYAL/KENTURN

Original: Taiwan

High precision spindles for professional machine tools.

Main Features

Name: CNC Controller
Brand: Fanuc 0i Mate-MD/SIEMENS 808D-2 Advanced
Original: Abroad
International famous control system for CNC controllers.

Machine Parts

Name: Ball Screw
Brand: HIWIN
Original: Taiwan
High precision ball screw from Taiwan for CNC machine tools.

Main Features

Name: Linear guideway
Brand: HIWIN
Original: Taiwan
High precision linear guideway for CNC machine tools.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	2400 (L) * 1900 (W) * 2400 (H)mm
Weight	2.5 T
Packaging Details	The normal package is wooden box(Size: LWH). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
