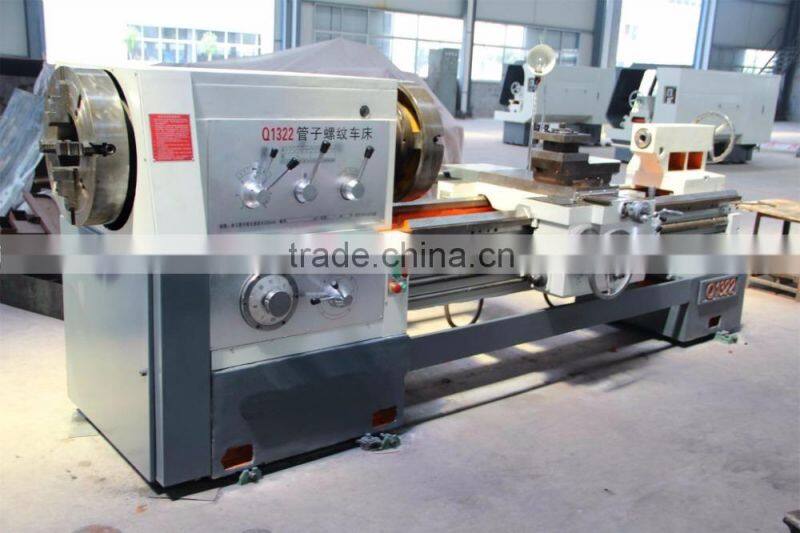

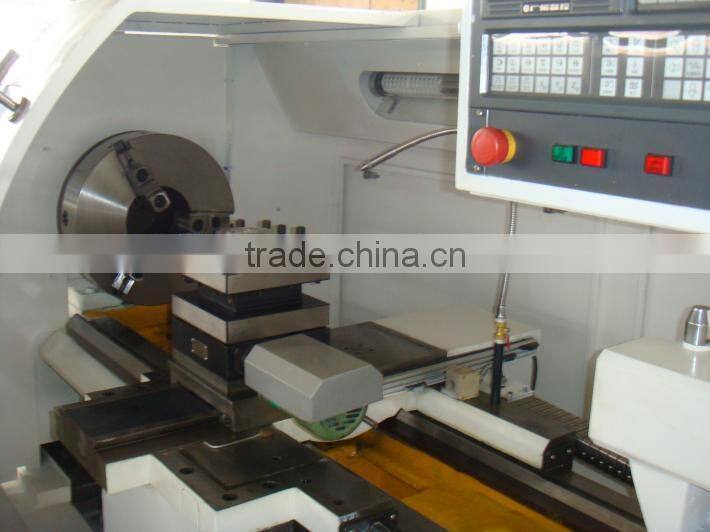

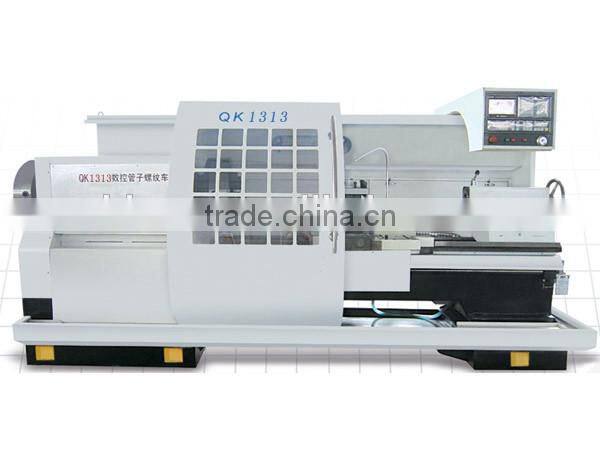

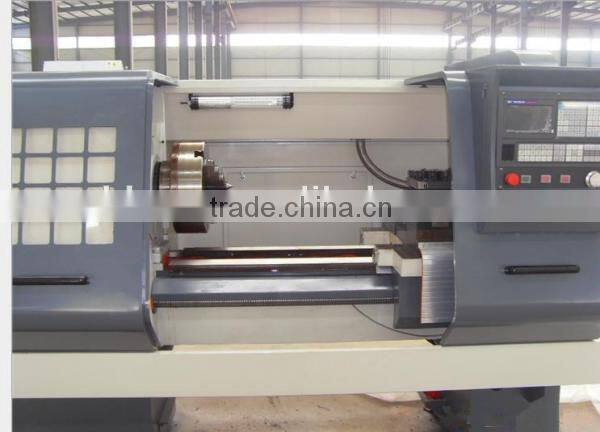

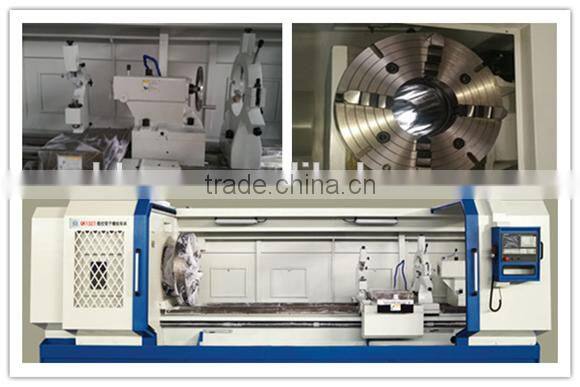

CNC Pipe Threading and Finishing Lathe Machine QK1313

Name: CNC Pipe Threading and Finishing Lathe Machine QK1313
Brand: HANKUI
SKU: 121925471
Availability: InStock

US$ 15,000 - 30,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Horizontal

CNC or Not:

CNC

Jinan Hankui International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Horizontal

CNC or Not CNC

Automatic Grade Automatic

Max. Swing Diameter 800mm-1400mm

Place of Origin Shandong, China

Brand Name HANKUI

Model Number QK

Voltage 220V/380V

Power(W) 7.5kw

Dimension(L*W*H) OPTIONAL

Weight As requirements

Certification ISO9000

After-sales Service Provided Engineers available to service machinery overseas

CNC Pipe Threading and Finishing Lathe Machine QK1313

Product Description

Main technical parameters

Model and specifications	QK1313	QK1319	QK1322
Guideway width	550mm
Max. swing over bed	630 mm
Max. swing over slide	350mm
Max. workpiece length	1500mm/3000mm
spindle thru-hole	Φ130mm	Φ200mm	Φ225mm
Max. Pipe external diameter	126 mm	196 mm	219 mm
Number of spindle speed	18 steps	12 steps	12 steps
Range of spindle speed	16~820 r/min	36~450 r/min	36~450 r/min
Tool post style	Vertical 4 Station(standard)
Thread range and number by British system	28~2/40 types
Thread range and number by metric system	1~14/24 types
Motor Power	11kw
Controller	KND/FANUC/SIMENS
Max. processing length of taper ruler	500 mm
Rapid feedrate speed	4000mm/min
Repeated positioning accuracy	±0.002
machining accuracy	IT7
Workpiece surface roughness	Ra1.6
Bed quenching hardness	HRC52
Machine net weight	4200kg	4400kg	4500kg

Model and specifications	QK1327	QK1335	QK1343
Guideway width	750mm
Max. swing over bed	1000 mm
Max. swing over slide	610mm
Max. workpiece length	1500mm/3000mm
spindle thru-hole	Φ280mm	Φ350mm	Φ440mm
Max. Pipe external diameter	270 mm	340 mm	430 mm
Range of spindle speed	8~230 r/min	6~330 r/min	4~230 r/min
Tool post style	Vertical 4 Station(standard)
Motor Power	18.5kw	22kw
CNC system	KND/FANUC/SIMENS
Max. processing length of taper ruler	500 mm
Rapid feed rate speed	4000mm/min
Repeated positioning accuracy	±0.002
machining accuracy	IT7
Workpiece surface roughness	Ra1.6
Bed quenching hardness	HRC52
