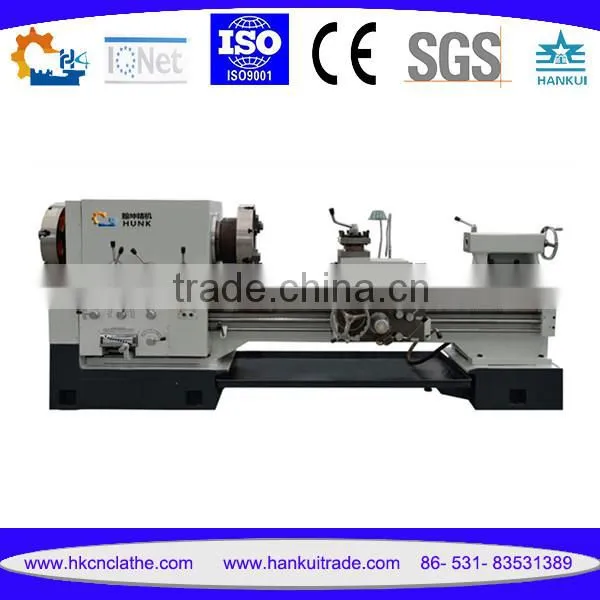

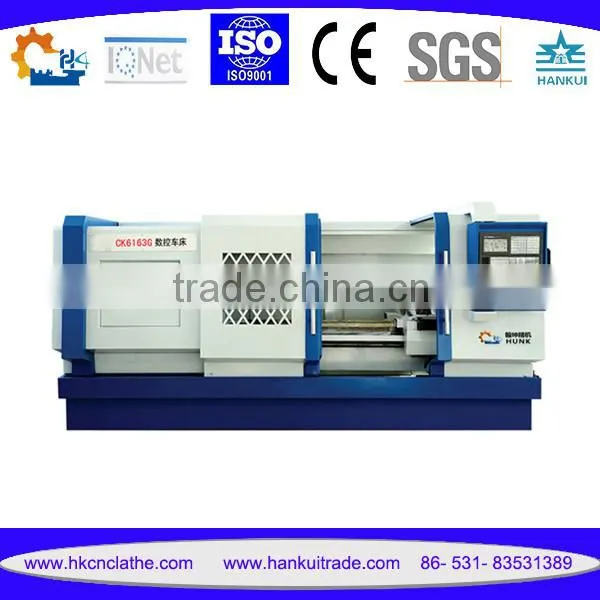

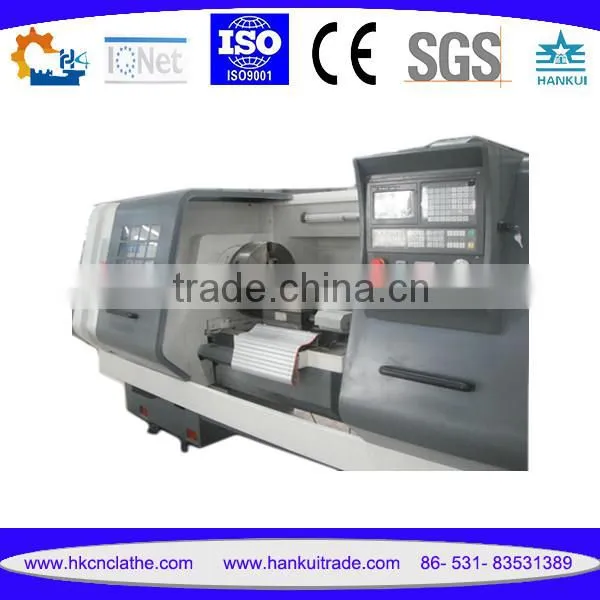

CNC Pipe Threading and Finishing Lathe Machine QK1313
1. FEATURES
(1) High rigidity pedestal and wider lay board are suitable for heavy cutting
(2) Four station electric turret
(3) Inverter stepless speed
2. USAGE
It can automatically process the inside and outside cylinder surface, cone surface, circle arc surface,end face. It can also turn the single and multiple threads in metric , inch and other standard.
3. STANDARD ACCESSORIES
(1) GSK980TDC or Siemens 808D NC system
(2) Inverter motor 5.5kw
(3) 4 station electric turret
(4) 200 mm manual chuck
(5) Manual tailstock
(6) Integrated automatic lubrication system
(7) Coolant system
(8) Light system
4. OPTIONAL ACCESSORIES
(1) Fanuc 0i mate TD or KND1000Ti
(2) Servo motor5.5 /7.5 kw
(3) Inverter motor 7.5 kw
(4) 6 station electric turret
(5) 8″ Non-through hole hydraulic chuck
(6) 8″ through hole hydraulic chuck
(7) 8″ Non-through hole hydraulic chuck (Taiwan)
(8) 8″ through hole hydraulic chuck(Taiwan)
(9) Steady rest
(10) Automatic feeding device
(11) Spring collet

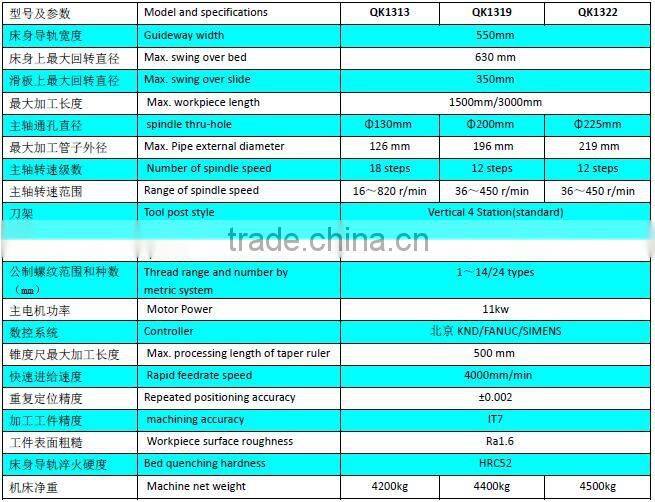

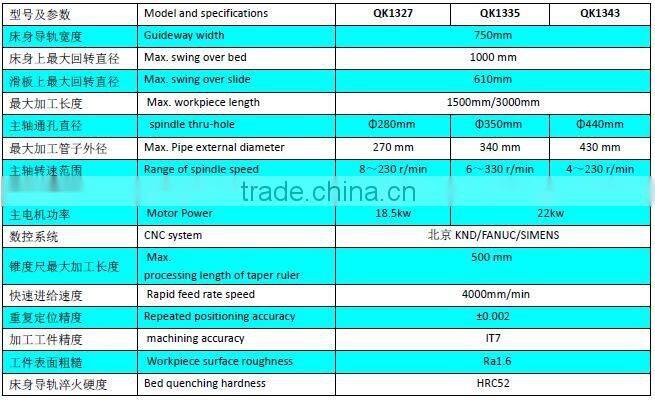

5. MAIN TECHINICAL PARAMETERS

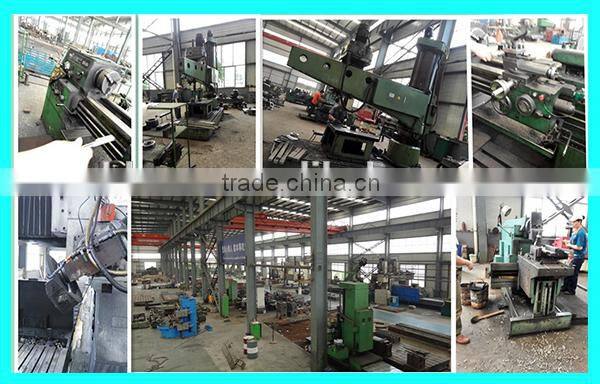

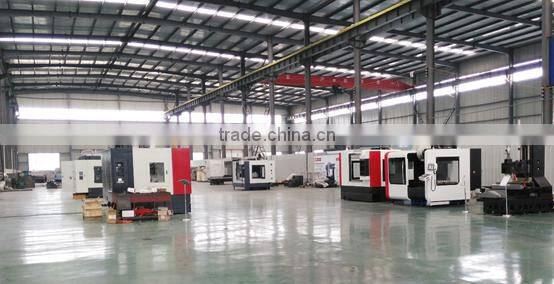

Jinan Hankui International Trade co., LTD. is a high tech enterprise and also an exporter, with 10000000 RMB capital.integrated with manufacturing, processing and sales of machine tools, which has more than 10 years experience in machine tools production. As the strategic partner of Jinan First Machine Tool Co., Ltd, we have mastered the advanced machine tool technology and dedicated to customers domestic and abroad and made an excellent achievement.
The main products are machine tools and metal parts. We have a strong technical force and rich experience in machine tools industry,and our designers, R&D and engineering technicians had taken part in the design and production of advanced level machine tools in China, such as general utility horizontal machining center, CNC vertical lathe, CNC slant bed lathe, vertical machining center, CNC double column machining center, etc.
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
2. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
3. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
4. Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
5. Q: What sales terms do you have?
A: T/T, L/C,West Union.
6. Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
7. Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
8. Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
9. Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
10. Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
11. Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
