Mobile outdoor LED display video screen rentals
1.Feature of mobile led display:
truck mobile advertising led displays with the features of full color screen, high brightness, reliable performance and impacting resistance,Outdoor fullcolor led display trucks can provide the spectators with three-dimensional and vivid picture;Apart from this,outdoor fullcolor led diaplay trucks can adjust the screen brightness according to outdoor light due to its light control system,so outdoor fullcolor led display trucks can prevent the eyes from harm because of too strong or weak light brightness.
Outdoor fullcolor led display trucks suitable for being used as movable stage background or the living platform for vocal concertlarge evening and competition, such as Olympic Games living broadcasting, also applied to the display platform or ad releasing platform.
2.Main technical parameters of mobile led display:
| Pixel Pitch | 8mm |
| Pixel composing | 1R1G1B |
| Density | 15,625dots/m2 |
| Module resolution | 32dots* 16 dots |
| Module size | 256mm * 128mm |
| Standard cabinet size | 768mm*768mm or design |
| Weight per sqm | 40 Kg/sqm |
| Whiteness brightness | 6500cd/sqm |
| Led package | SMD 3in1 |
| Wave Angle (H) | 100degree(H)/80degree(V) |
| Best view distance | >=8m |
| Working voltage | AC 220v/380v+/-10%50-60Hz |
| Power consumption/ m2 | 410W/sqm |
| Short circuit protection | Yes |
| Refresh | 400 Hz |
| Changing frame frequency | 60 Hz |
| Driving method | Constant driving ,1/4scan |
| Working Environment | Outdoor |
| Working temperature | -40-60centigrade |
| Working Humidity | 10-95% |
| Out of control | 1/10,000 ( scattered) |
| lifetime | 100,000 hours |

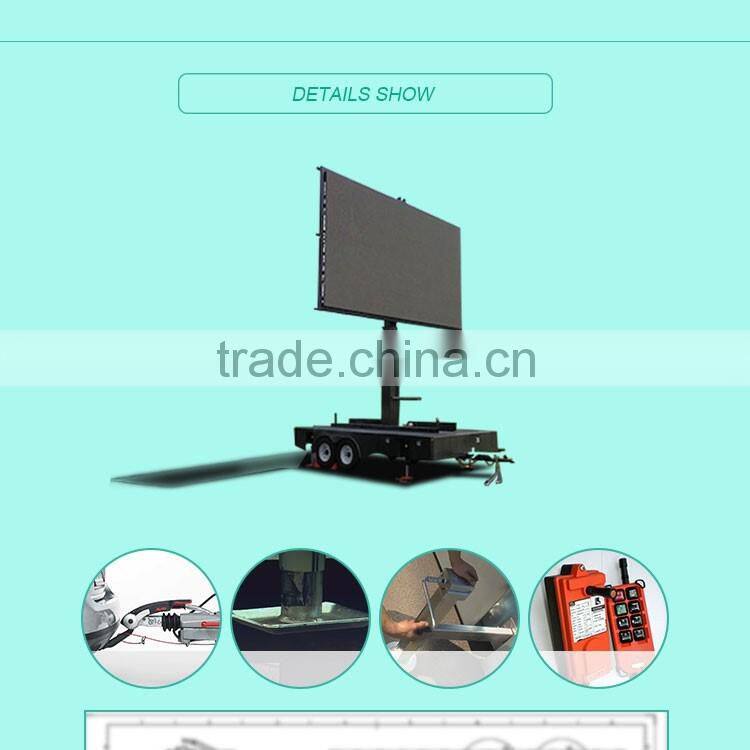

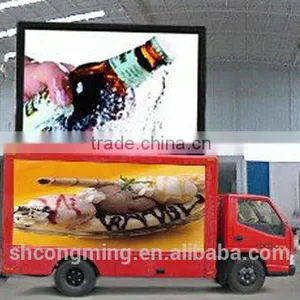

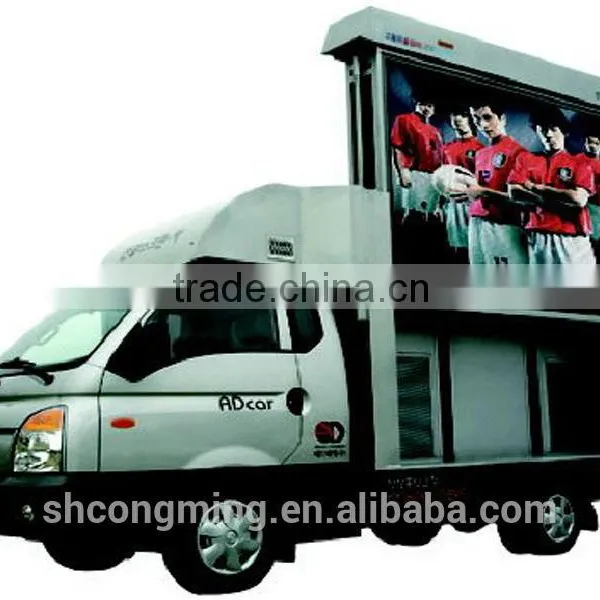

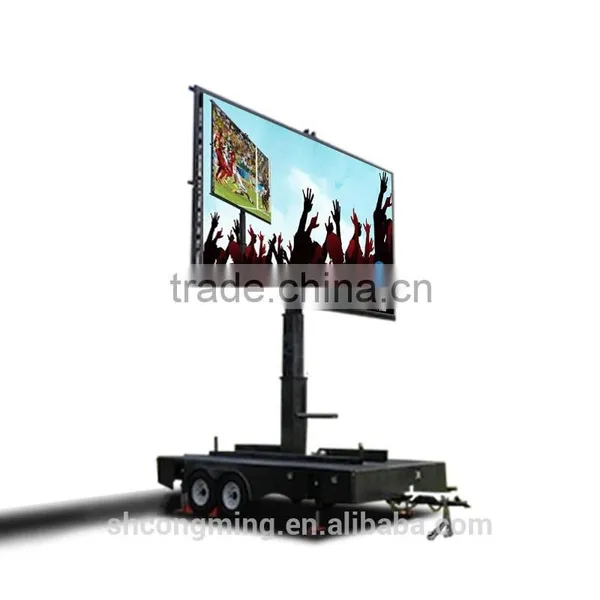

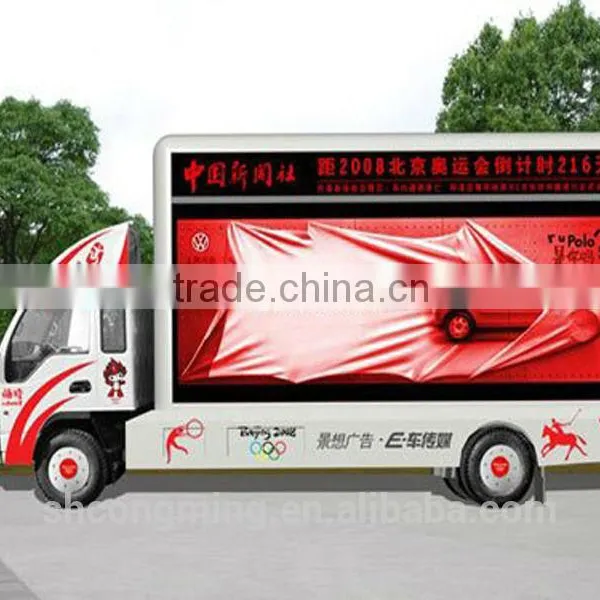

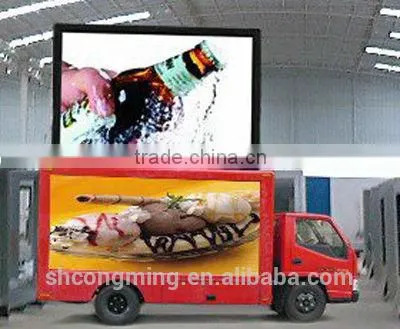

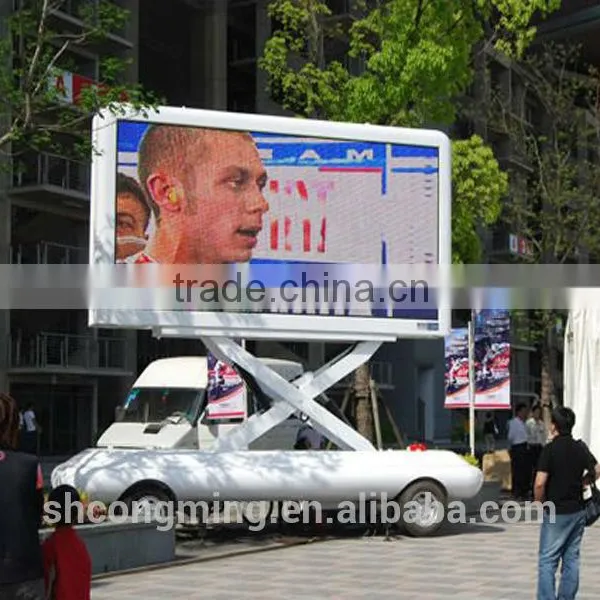

3. Pictures of truck mobile advertising led displays:
Outdoor fullcolor led display trucks can be living broadcast platform for the concerts, large parties, singing, the larger events hall. Also outdoor fullcolor led display trucks can be used as outdoor advertising network platform to public video ads. And it is so great convenience for the parade campaign.Overall dimension 6400x1800x3800,Weight: 5000kg.

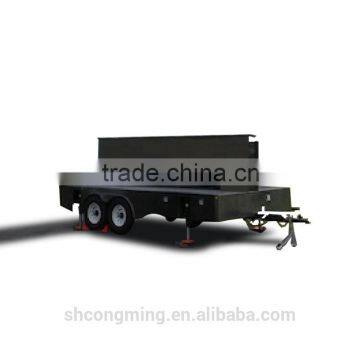

Trailer Chassis | |||||||||
Dimensions |
7000mm×2100mm×2500mm (Final product size prevail) |
The total mass |
4750KG |
||||||
Column hydraulic lifting platform and support system | |||||||||
Hydraulic lifting platform |
Lifting mode:Column, Slewing platform sizes:∅850mm; Rotation angle:≤360°, stroke:1.8m-2.5m, Carrying 5T |
||||||||
Support stabilization system |
Hydraulic screw drive leg support, stroke 300mm, single carrier 5T, |
||||||||
LED screen | |||||||||
Screen size |
2880mm x 5184mm=14.93m2 |
Module size |
192mm(W) ×192mm(H) |
||||||
Light emitting die |
R,G,B:Taiwan Epistar |
Pixel pitch |
6 mm |
||||||
brightness |
≥7000cd/ m² |
Maximum power consumption |
850W/m² |
||||||
Average power consumption |
350W/m² |
waterproof level |
IP 65 |
||||||
Sending card |
Nova MSD300 |
Receiving Card |
Nova MRV300 |
||||||
Generators For Japan KUBOTA | |||||||||
Standby Output |
22(17.6)KVA(kW) |
Voltage - Three Phase |
220/380 |
||||||
Dimensions |
L*W*H 1300*611*922 |
weight |
380kg |
||||||
Multimedia control system | |||||||||
Industrial Computer |
Processor: Dual-core CPU, graphics card: 1G, hard disk: 500G, optical drives: DVD, Memory: 2G |
||||||||
monitor |
15-inch LCD monitor KVM |
PA |
Unilateral power output:200W |
||||||
Speakers |
Maximum power consumption:200W |
Screen Control System |
NOVASTAR |
||||||

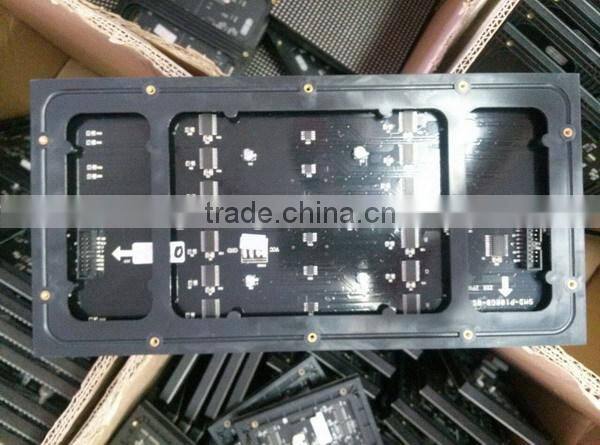

4. Moudle of mobile led display:
5. Composition of mobile led display:

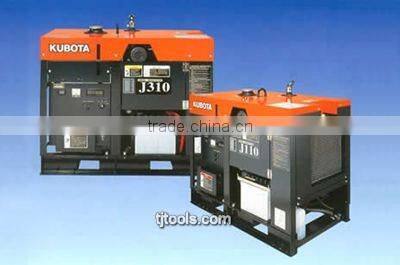

6. generator of mobile led display:
7. mobile led display packaging:
8.Factory:
9.Certificate:
10.Warranty:
1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
11.Delivery Time:
1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
