Good quality p10 outdoor led large screen display
- 800 Cubic Centimeter / Cubic Centimeters per Month
- shanghai or any port
- T/T L/C D/P D/A Credit Card
- 60W UL CE LED Canopy Lamp with aluminum frame Ex-factory price from Shenzhen
- 80W Energy-Saving Gas Station LED Canopy Lamp hot sale from Shenzhen
- 60W UL CE Energy Saving LED Canopy Lamp with 3 years warranty from Shenzhen
- 2014 new design, led flood light, led Gas Station Lamp, LED canopy light 100w
- Led flood light, led Gas Station Lamp, LED canopy light 100w
- 120W High power cree led canopy lamp Wholesale from Shenzhen for gas staton
Product Details
Place of Origin: | Shanghai, China | Brand Name: | Harse | Model Number: | HX-OS |
Usage: | Outdoor | Tube Chip Color: | Other, Single color | Display Function: | Graphics |
Pixels: | 16mm | Screen Dimension: | Custom made |
Product Description
Good quality p10 outdoor led large screen display
1.Function introduction of Good quality p10 outdoor led large screen display:
1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.
2.Advantages of Good quality p10 outdoor led large screen display:
1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!
3.Technical specification:
Pixel Pitch | 16mm |
Pixel composing | 1R/1G/1B/1W |
Density | 3,906dots/m2 |
module resolution | 16 dots* 8 dots |
Module size | 256mm * 128mm |
Standard cabinet size | 768*384mm or design |
Weight per sqm | 35 Kg/sqm |
Whiteness brightness | 3000 cd/sqm |
Led package | DIP |
Wave Angle (H) | 110degree(H)/30degree(V) |
Best view distance | >=8m |
Working voltage | AC 220v/380v+/-10%50-60Hz |
Power consumption/ m2 | 500W/sqm |
Short circuit protection | Yes |
Refresh | 400 Hz |
Changing frame frequency | 60 Hz |
Driving method | Constant driving ,1/4scan |
Working Environment | Outdoor |
Working temperature | -40-60centigrade |
Working Humidity | 10-95% |
Out of control | 1/10,000 ( scattered) |
lifetime | 100,000 hours |

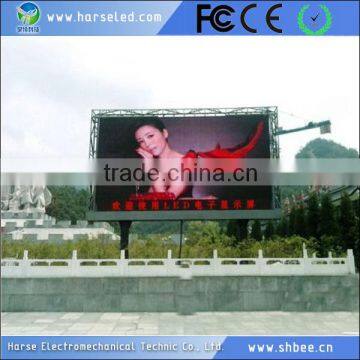

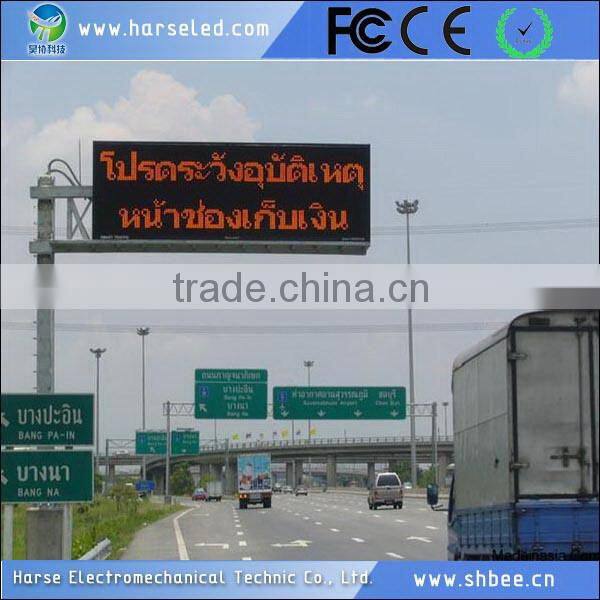

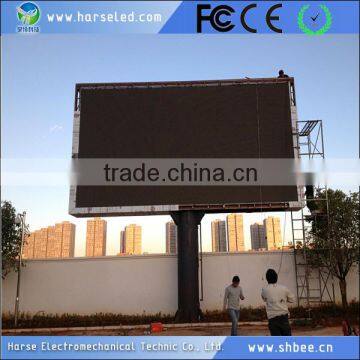

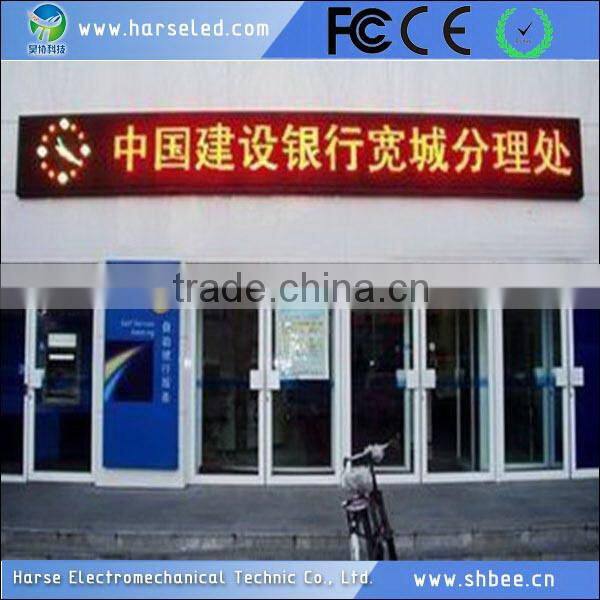

4. Pictures of Good quality p10 outdoor led large screen display:

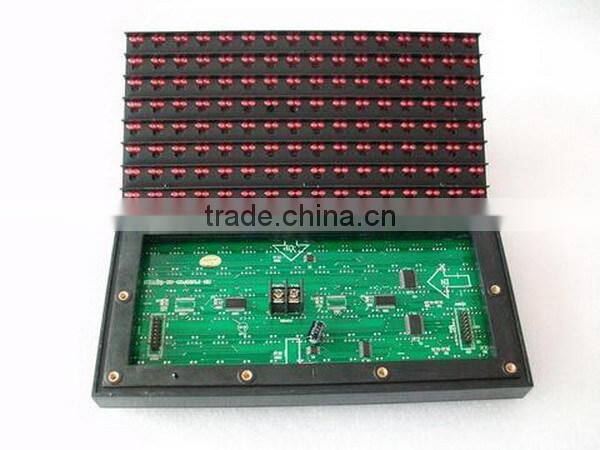

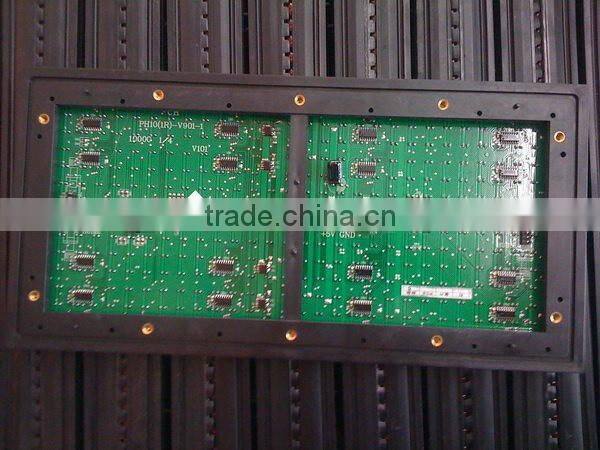

5. Moudle of Good quality p10 outdoor led large screen display:
6. Composition of Good quality p10 outdoor led large screen display:

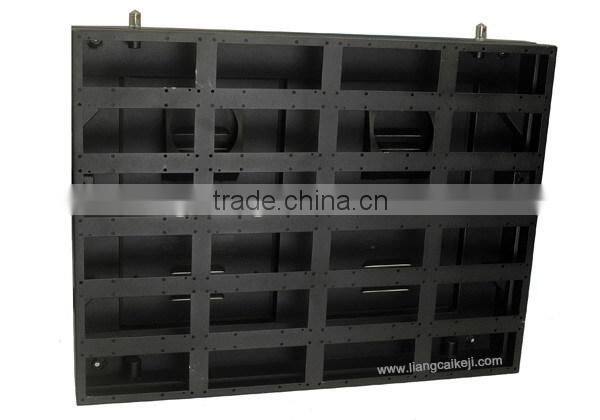

7. Cabinet of Good quality p10 outdoor led large screen display
8. Good quality p10 outdoor led large screen display packaging:
9.Warranty:
1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
10.Delivery Time:
1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
11.Certificate:
12.Transport
