Super Quality Custom-made Soft Led Panel Screen Outdoor

Name: Super Quality Custom-made Soft Led Panel Screen Outdoor
Brand: Harse
SKU: 121895907
Availability: InStock

Super Quality Custom-made Soft Led Panel Screen Outdoor thumbnail-1

Super Quality Custom-made Soft Led Panel Screen Outdoor photo-1

US$ 750 - 2,000 MOQ: 1 Cubic Centimeter

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Harse

Model Number:

HX-OS

Contact Supplier Request Quote Chat Now

Shanghai Harse Electromechanical Technic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Harse

Model Number HX-OS

Usage Outdoor

Tube Chip Color Other, Single color

Display Function Graphics

Pixels 16mm

Screen Dimension Custom made

Super quality custom-made soft led panel screen outdoor

Product Description

1.Function introduction of soft led panel screen outdoor:

1) High intensity and can be adjusted, so can meet the request of the customers according the application environment.
2) Best equality, commendably solve the problem of the mosaic, have the excellent consistency of light
3) To pictures and character, have clear, exquisite and real display effect
4) Big viewing angle to 110 degree at horizontal line, 60 degree at vertical line, you can see at every angle at this range, no picture change, no color excursion
5) Can repair each led lamps, so the cost of maintain is lower, and easy to repair.

2.Advantages of soft led panel screen outdoor:

1) Price Advantage: we have the best competitive price at the market, also have the same even better quality.
2) Performance Advantage: Best Equality, high consistency, Big viewing angle, can repair each led lamps
3) Quality advantage: From material to finished product, from design to produce, we control all steps, that's the guarantee of the quality and reliability.
4) Service advantage: Better service at same situation, better cooperation at same service!

3.Technical specification:

Pixel Pitch	16mm
Pixel composing	1R/1G/1B/1W
Density	3,906dots/m2
module resolution	16 dots* 8 dots
Module size	256mm * 128mm
Standard cabinet size	768*384mm or design
Weight per sqm	35 Kg/sqm
Whiteness brightness	3000 cd/sqm
Led package	DIP
Wave Angle (H)	110degree(H)/30degree(V)
Best view distance	>=8m
Working voltage	AC 220v/380v+/-10%50-60Hz
Power consumption/ m2	500W/sqm
Short circuit protection	Yes
Refresh	400 Hz
Changing frame frequency	60 Hz
Driving method	Constant driving ,1/4scan
Working Environment	Outdoor
Working temperature	-40-60centigrade
Working Humidity	10-95%
Out of control	1/10,000 ( scattered)
lifetime	100,000 hours

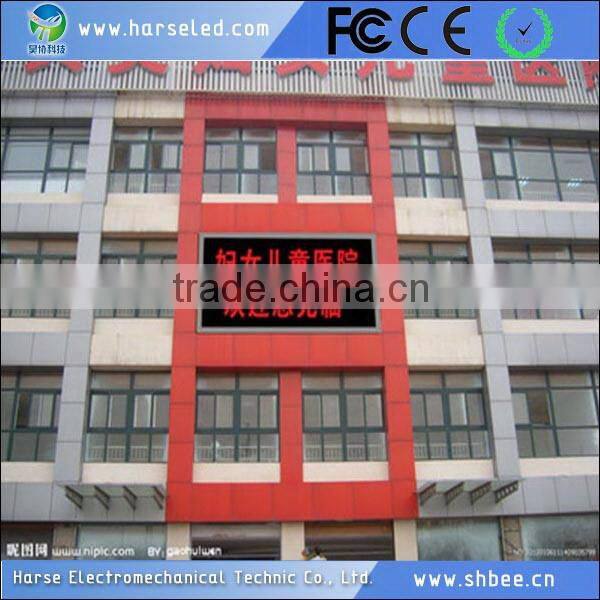

4. Pictures of soft led panel screen outdoor:

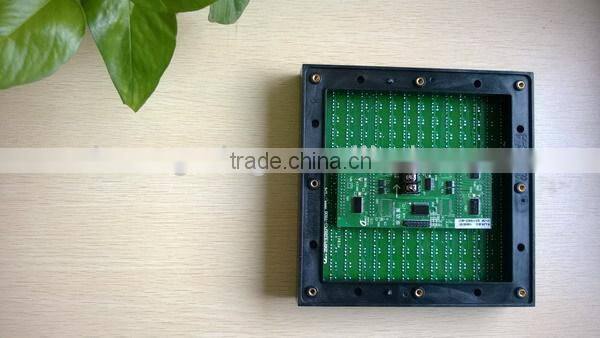

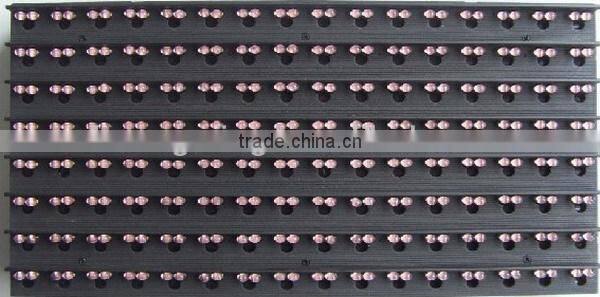

5. Moudle of soft led panel screen outdoor:

6. Composition of soft led panel screen outdoor:

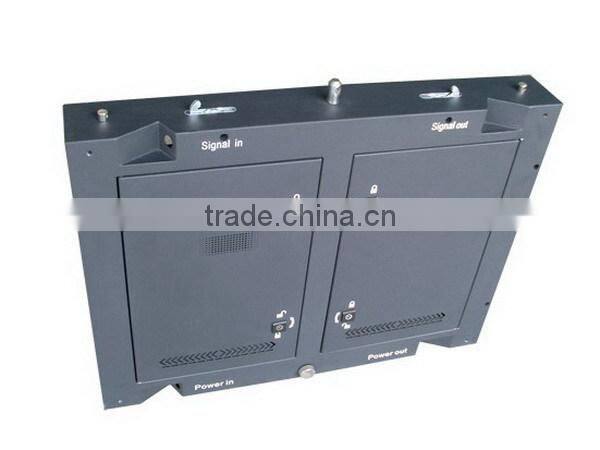

7. Cabinet of soft led panel screen outdoor:

Packaging & Shipping

8. soft led panel screen outdoor packaging:

Our Services

9.Warranty:

1.We guarantee all our display, modules, spare parts (Silan Chip) for TWO years.

2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.

3.After warranty , we also can offer you the parts for replacement at our bottom price.

4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.

5.We also could solve problems for you until it recovers well by remote control!

10.Delivery Time:

1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.

2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
