Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Plastic Machine (variable Pump, Curved,red, Blue)

Plastic Machine (variable Pump, Curved,red, Blue)

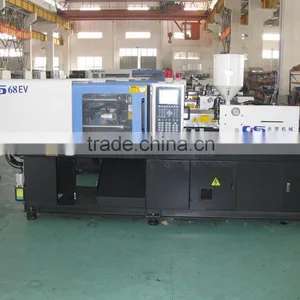

Plastic Machine (variable Pump, Curved,red, Blue) thumbnail-1
Plastic Machine (variable Pump, Curved,red, Blue) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Style:
Horizontal
Brand Name:
GS
Contact Supplier Request Quote Chat Now
Shanghai GS Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Style Horizontal
Brand Name GS
Model Number GS68EV
Place of Origin Shanghai, China
Plastic Type Thermoplastic
Injection Weight 100.3 g
Injection Rate 85.9 g/s
Clamping Force 680 kN

Specifications

Plastic Machine
variable pump, all computer control system

Plastic Machine





GS68EV

A

B

C


INJECTION UNIT

Screw Diameter

mm

26

30

34

Screw L/D Ratio

L/D

24.2

21

19.5

Shot size(Theoretical)

cm3

66

    88

113

PS) Injection Weight

g

60

80

     103

PS Injection Rate

g/s

60

80

103

PS Plasticizing capacity

g/s

6.3

8.4

10.3

Injection Pressure

Mpa

236

177

138

Screw Speed

Rpm

0-260


CLAMPING UNIT

Clamp Tonnage

KN

600

Toggle stroke

mm

270

Space Between Tie Bars

mm

3310*310

Max.Mold Height

mm

330

Min.Mold height

mm

120

Ejector stroke

mm

70

Ejector tonnage

KN

22

Ejector Number

piece

1


OTHERS

Max.Pump Pressure

Mpa

16

pump motor power

KW

                                 7.5

Heater Power

KW

65.1

Machine Dimension(L*W*H)

m

3.77*1.11*1.76

Machine Weight

t

2.5

PS Hopper Capacity

Kg

25

Oil Tank Capacity

L

180

Features:
1) All computer control system
2) Super silence hydraulic circuit
3) High speed and high-pressure injection, ideal for high precision and thin
walled molding products
4) Real-time injection process curve display
5) Enlarged clamping stroke to meet with larger stroke requirements
6) 4-stage of injection speed, 3-stage of holding pressure, 4-stage of
metering phase can be setup according to products' requirements
7) Optimal platen design, with toggle junction casting together with platen
improves rigidity of mechanical system hence improves product dimensions
accuracy
8) Screw and barrel are made of high quality new materials, which extended
their working life
9) All hydraulic components and seals are offered by famous international
manufacturers









Shanghai GS(GuangSu) Machinery Manufacture Co.,Ltd

Add: No.888,Kungang Rd, Songjiang Sci.& Tech. Park, Shanghai,China
Tel: +8621-5785 0702; 5785 0726; 5785 0727
Fax: +8621-5785 0725

P.C 201614
