Help CenterGuangsu Plastic Blowing Machines CM-8Y
Related Products
Specifications
Guangsu Plastic Blowing Machines CM-8Y1. Capacity: 1200-1600pcs/hr (based on 500ml)
2. Max volume of product: 2 liter
Guangsu Plastic Blowing Machines CM-8Y

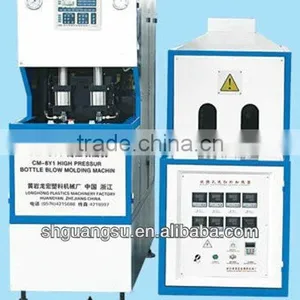

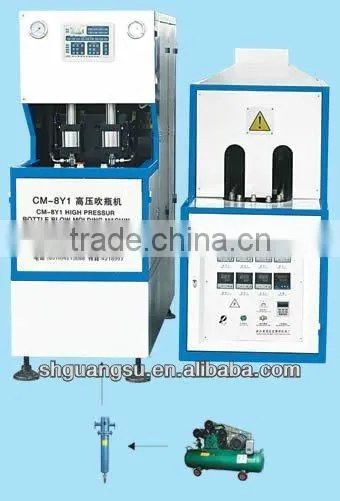

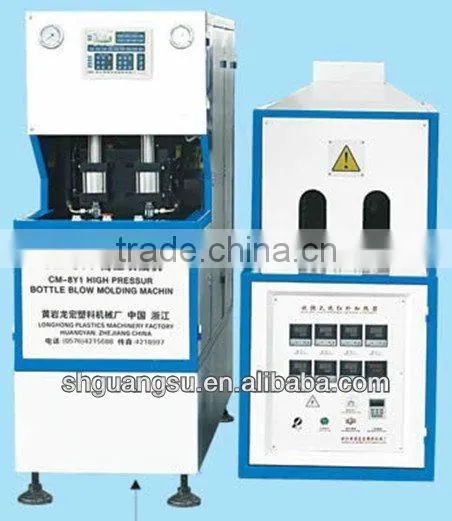

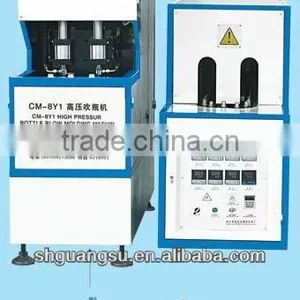

CM-8Y semiautomatic bottle blow molding machine is suitable for producing PET plastic containers and bottles from 10-2000ml. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.
Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.

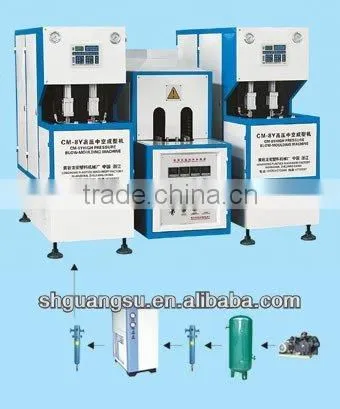

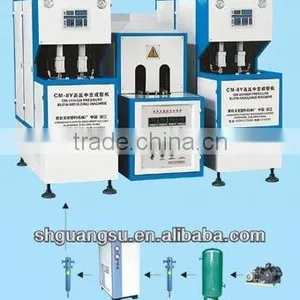

The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.
The machine is small with low investment, easy and safe to operate .
Main parameter: | ||
Model |
CM-8Y |
|
Container |
Product material |
PET |
Volume |
0.1L-2.5L |
|
Theoretical output |
1200-1600PCS/H |
|
Preform length |
15mm-350mm |
|
Preform inner diameter |
φ5mm-38mm |
|
Moulding |
Max.mould plate Dimenstion(L x W) |
350x380mm |
Max.mould thickness |
180mm |
|
Clamping force |
45KN |
|
Mould opening stroke |
16mm |
|
Machine size and weight |
Main machine (L x W x H) |
160x60x161cm |
Main machine weight |
500Kg |
|
Heater (L x W x H) |
187x63x145cm |
|
Heater weight |
250Kg |
|
Power |
17.5kw |
|
MODERN COMPANY

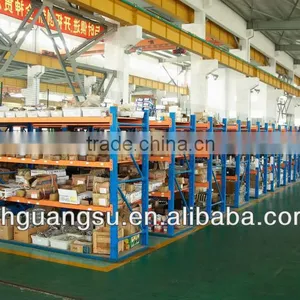

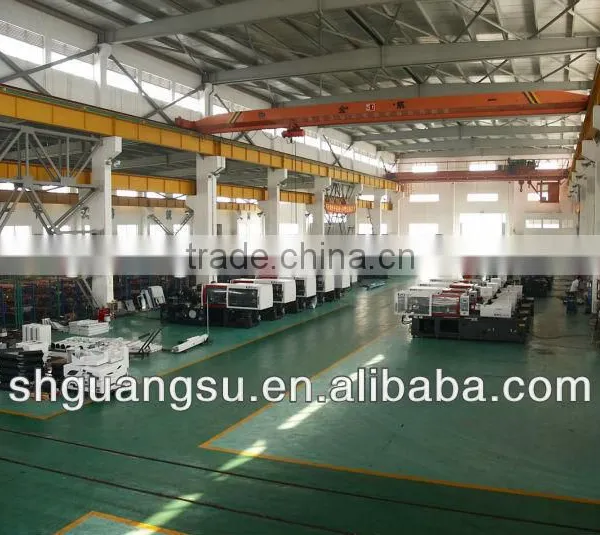

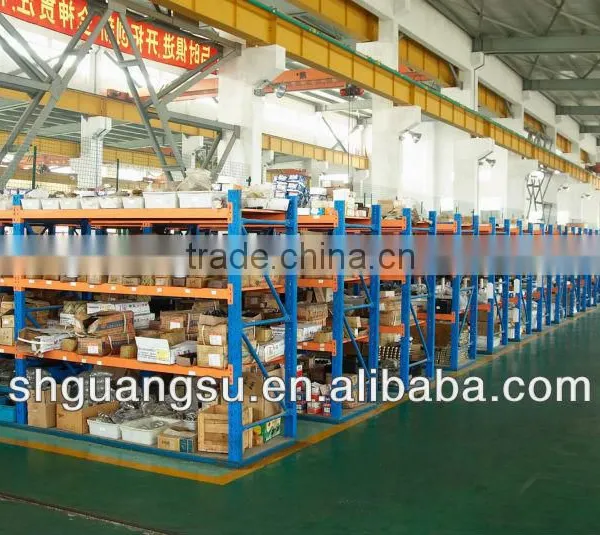

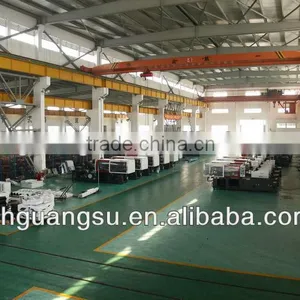

Modernized garden type factory, first-rate hardware equipment,professional science &technology team and perfect management system, ensure the outstanding product performance of "GS".
It is equipped with the modern fashion standard in the aspects of production,design,machining technique,outline design.It lays the greatstress on the development,absorbs and introduces the excellent managing concepts,studies and develops the top grade skill and technology,fosters the professionally qualified personnel.Executing one-stop service and special-people responsible system to the sale,design,installation,troubleshooting and maintenance,we have accumulated abundant practial experien and products adjustment data.
Following the principle of "Technology oriented,Management innovation,Quality first and Customer uppermost",the company is continuing to enhance the development capacity,focusing on the development of a series of products with leading level at home and surpassing the international level,making it the new highlight of economic growth of the company.At the same time,the company has launched a series of new measures in the aspect of management and quality control,and strengthened the cooperation with the domestic and international scientific research institutes and famous enterprise to build the "GS" brand.Under the leadship of the company,all the staffs have decided to carry on the spirit of "Union,Struugle,Practice,Devotion,Innovation and Development" leading the company to a first-class famous enterprise.
Glorious GS,Steer the flourishing future.We welcome all domestic and international customers to visit us and give us intructions.Just as what we did before,we shall continue to try our level best to provide our customers with professional and considerate service to gain the confidence and support from both the old and new customers.
Shanghai GS(GuangSu) Machinery Manufacture Co.,Ltd
AddNo.888,Kungang Rd, Songjiang Sci.& Tech. Park, Shanghai,China
Tel +8621-5785 0702; 5785 0726; 5785 0727
Fax +8621-5785 0725
P.C 201614
