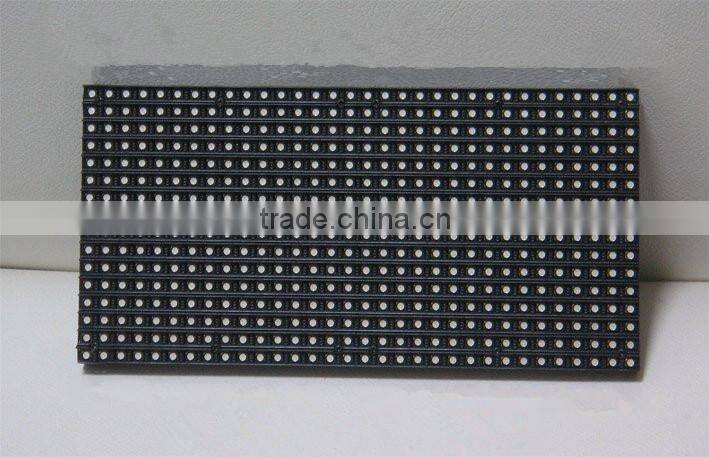

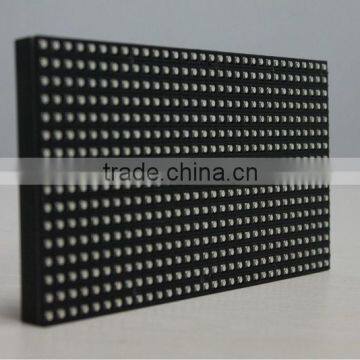

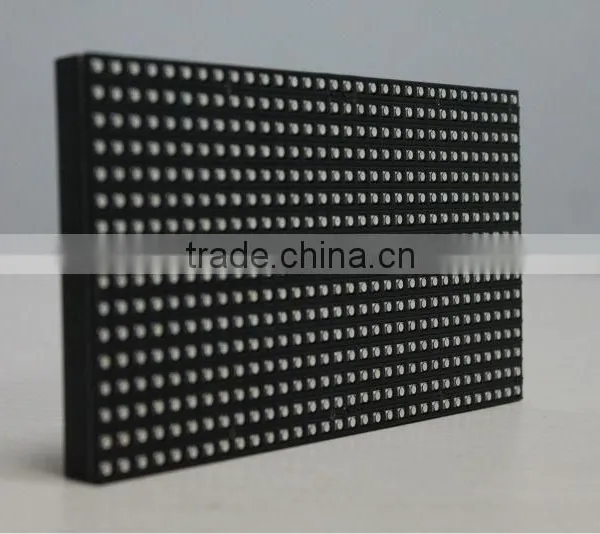

PH6 SMD Indoor LED Modules

Name: PH6 SMD Indoor LED Modules
Brand: Harse
SKU: 121889757
Availability: InStock

US$ 15.5 - 35.5 MOQ: 1 Piece

Key Specifications

Model Number:

HX-IF6M

Chip Material:

AlGaInP

Emitting Color:

Tri-Color(Red-Blue-Green)

Shanghai Harse Electromechanical Technic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Model Number HX-IF6M

Chip Material AlGaInP

Emitting Color Tri-Color(Red-Blue-Green)

Luminous Intensity 6500

Luminous Flux(lm) 1500

Optical Attenuation(%) 5

Power 7W

Power Dissipation 7W

Color Rendering Index(Ra) 1000

Color Temperature 6500

Operating Temperature(℃) -20, 30

Storage Temperature(℃) -30, 40

Place of Origin Shanghai, China

Brand Name Harse

Certification CE

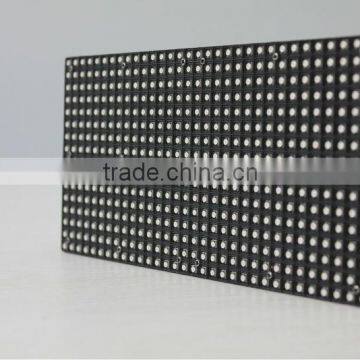

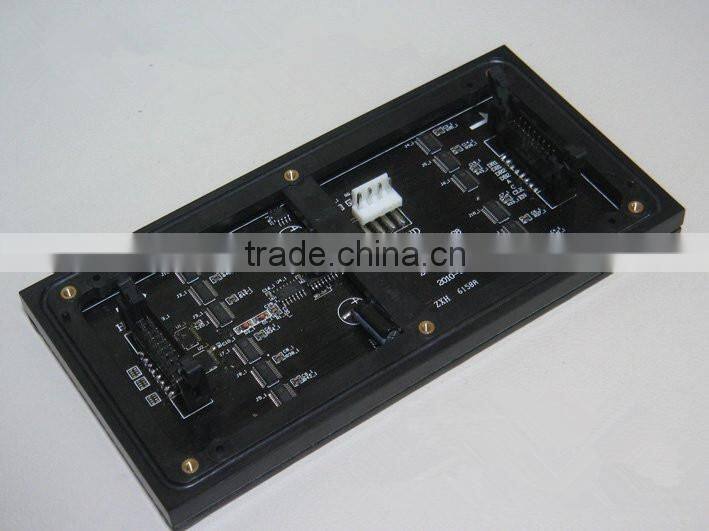

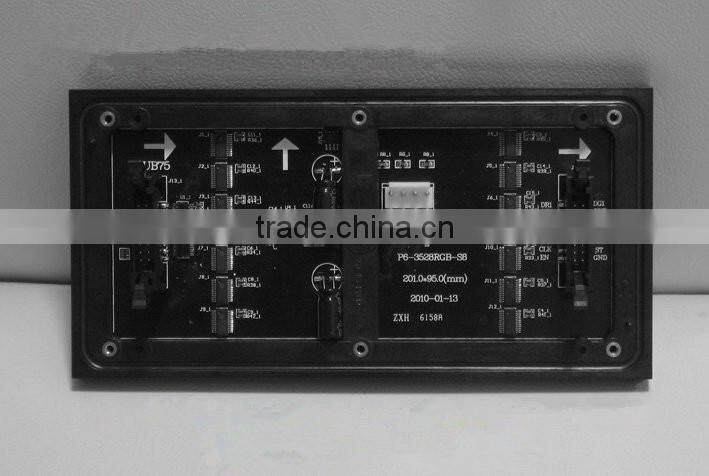

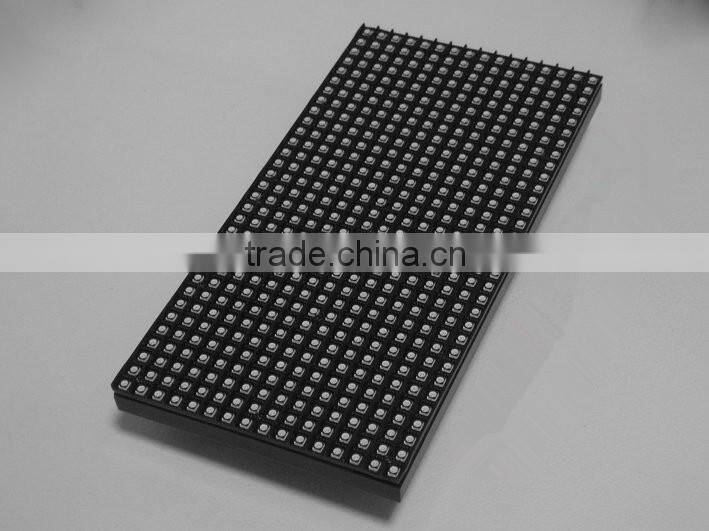

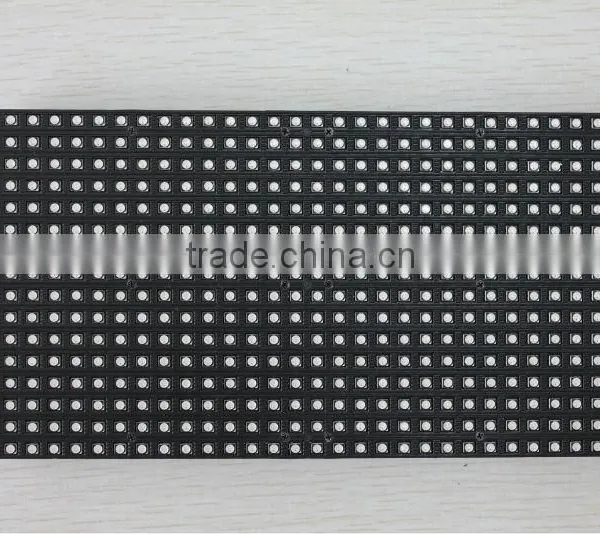

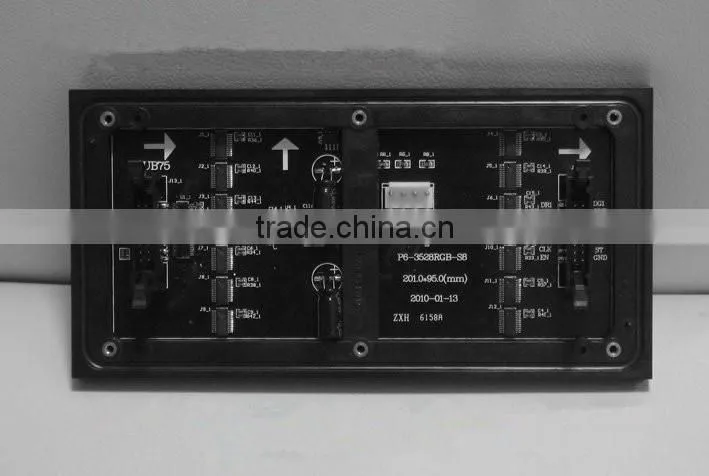

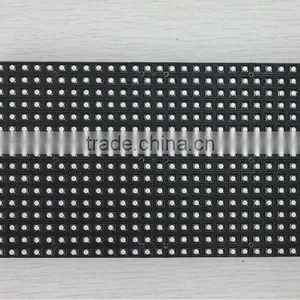

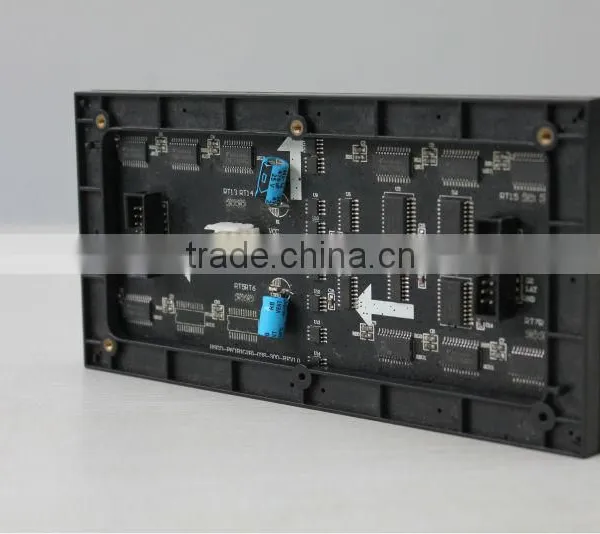

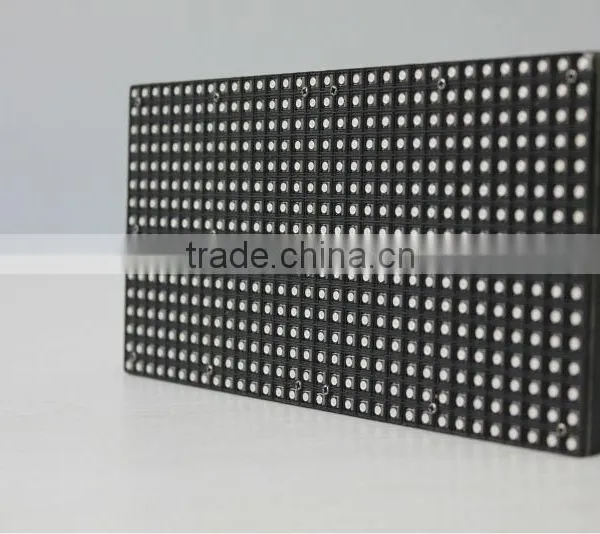

PH6 LED Modules

Product Description

1. Technical Specifictions of PH6 LED Modules

Parameter	Unit	Value
Pixel Pitch	mm	6

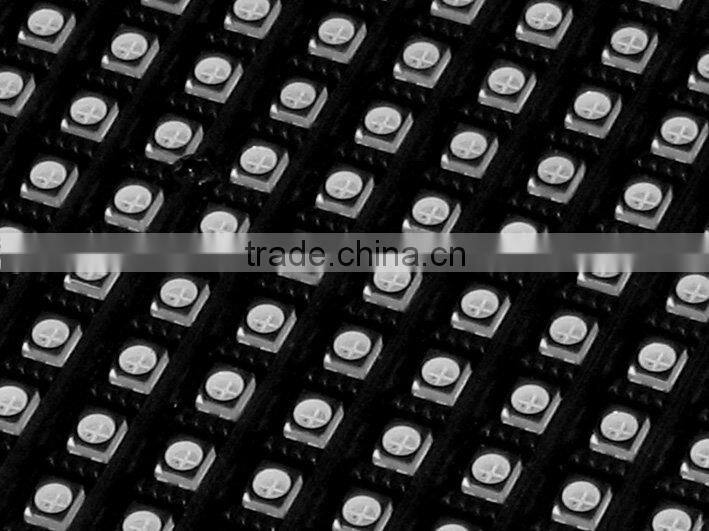

Pixel Configuration		1R1G1B SMD 3IN1

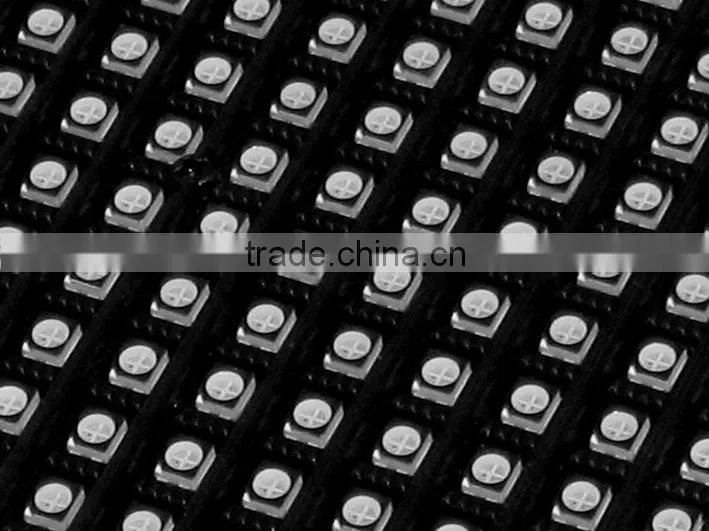

LED Encapsulation		SMT3528
Brightness	nits	1,500
Color temperature	deg. K	6,500
Contrast ratio		1,000:1
Viewing angle - Horizontal (50% brightness)	deg.	120(+60 / -670)
Viewing angle - Vertical (50% brightness)	deg.	900(+45 / -45)
Recommended minimum viewing distance	mm	6
Module size	mm	192*96
Ingress protection	IP	IP43
Pixels per sq. meter		27777
Colors		16.7Million
Red wavelength (dominant)	nm	625-630
Green wavelength (dominant)	nm	520-525
Blue wavelength (dominant)	nm	465-470
Brightness control	Levels	256
System type		LINSN control System
Driving Method		1/8 Scan, Constant Current
Best stadia	M	3-90
Frame rate	Hz/s	≥72
Display refresh rate	Hz/s	≥180
Input power frequency	Hertz	50 to 60
Power Consumption (Max)/(Average)	Watts	1,000/400
Operating temperature range	deg. C	-10 to +50
Life Span	Hours	>100,000
MTBF (Mean Time Before Failure)	Hours	>10,000
Defective Dot Rate		<0.0001
