SMD and DIP Outdoor full color flexible led screen
p10 outdoor led display module Features:
1) Wide viewing angles. Both the horizontal viewing angle and vertical viewing angle can reach 120 degrees
2) Good color and brightness conformity. The LED chip is sorted by 2.5nm, while the chip brightness difference is within 10%.
3) Small gaps between modules and perfect screen flatness. The gaps between modules are smaller than 1 mm and screen flatness is less than 1 mm.
4) Different cabinet styles are available, such as fixed installation style, rental hanging style, ultra-thin style, front-maintained style and front-serviceable style with magnets.
5) We use Meanwell power supply, which is a famous brand from Taiwan. We can also use other power supply brands which customers specify.
6) Different control system to meet clients’ requirements. Synchronous or asynchronous. Different brands, such as LINSN, NOVA, DBSTAR and COLORLIGHT.
7) Long lifetime. The P10 LED display can work for more than eight years in good conditions with little repair.
8) Very competitive price in the market. We have strict purchasing control system and company operation management system.

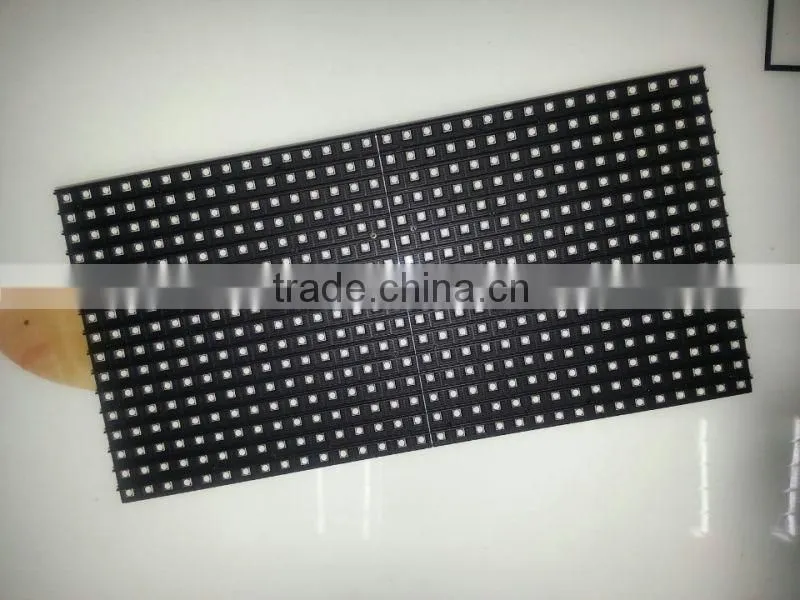

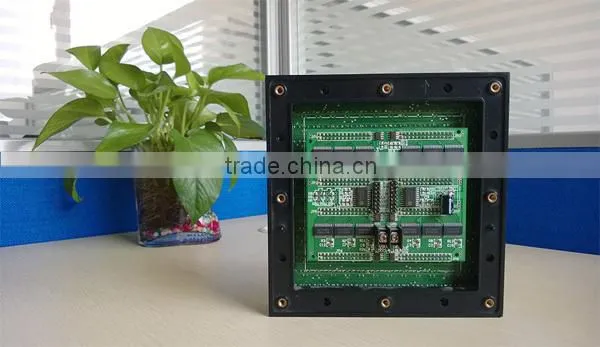

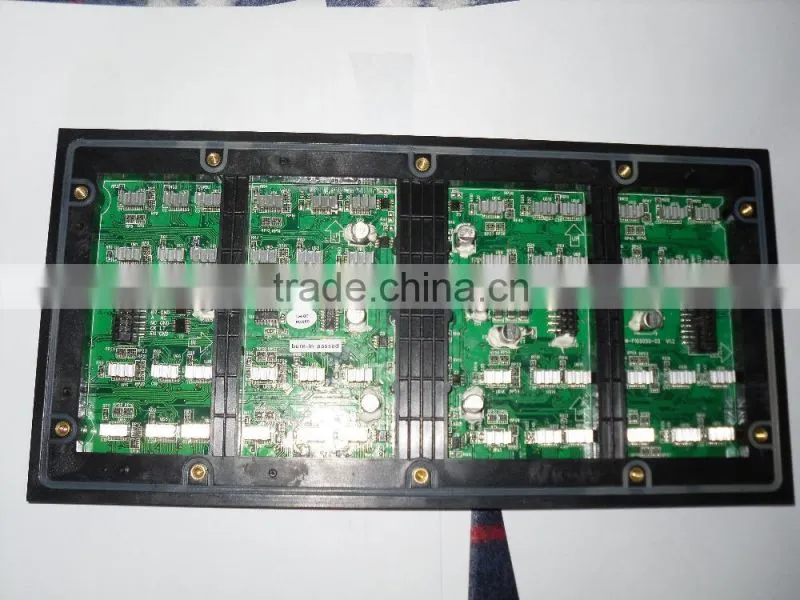

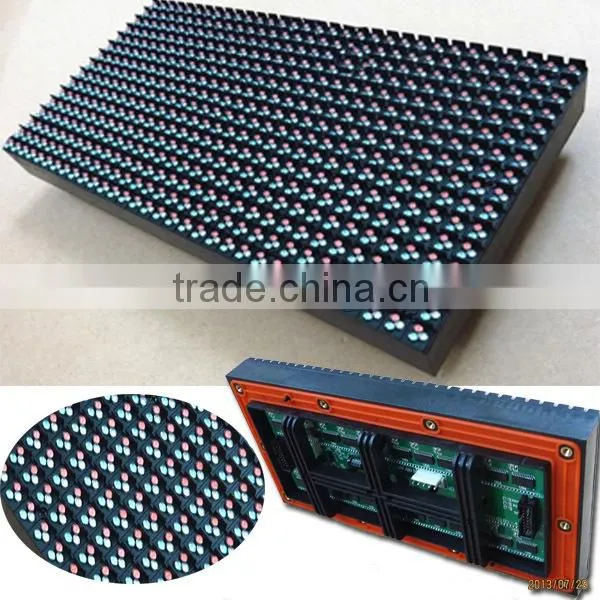

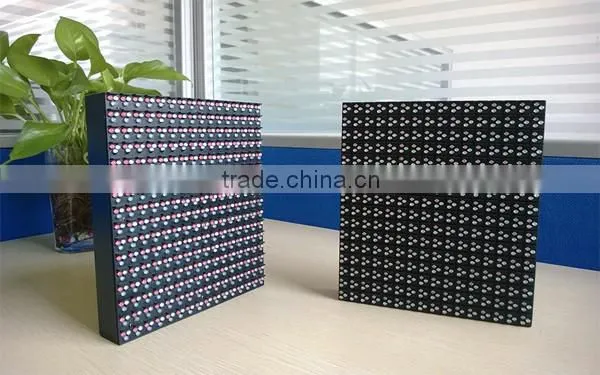

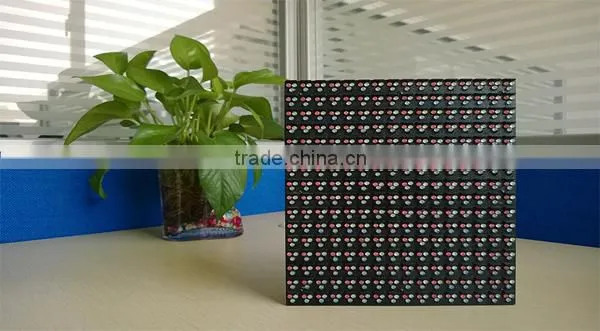

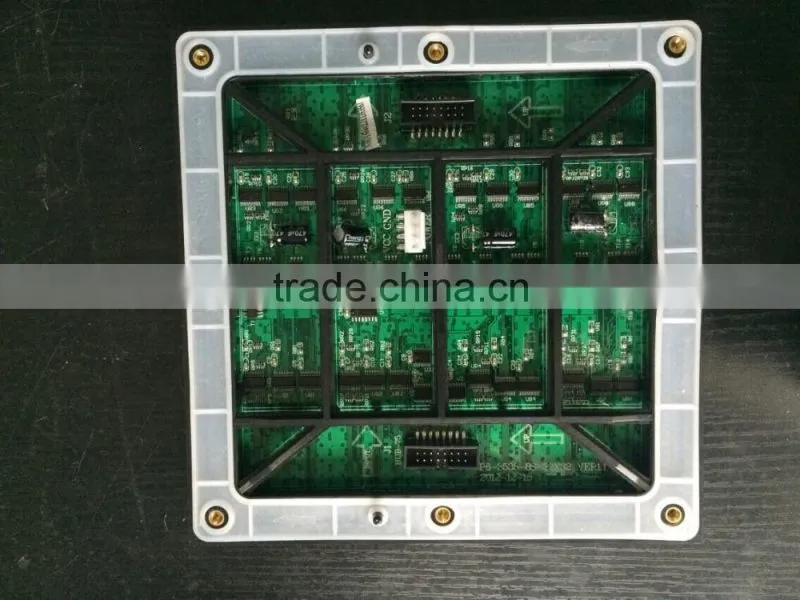

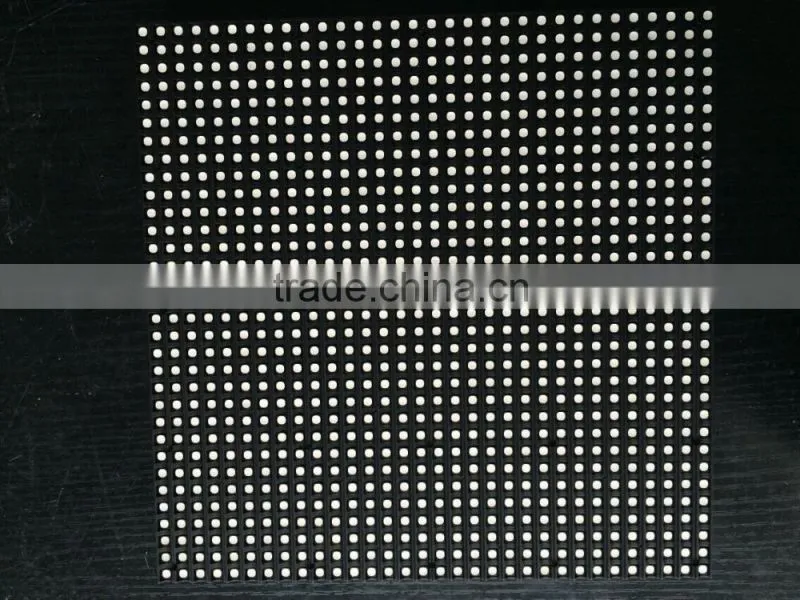

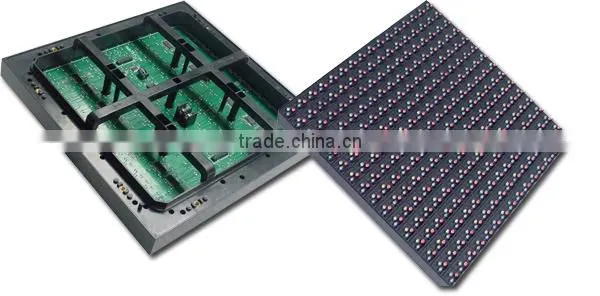

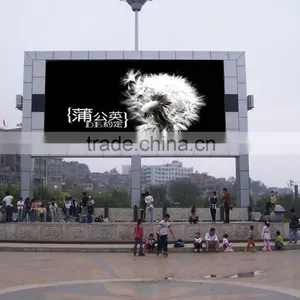

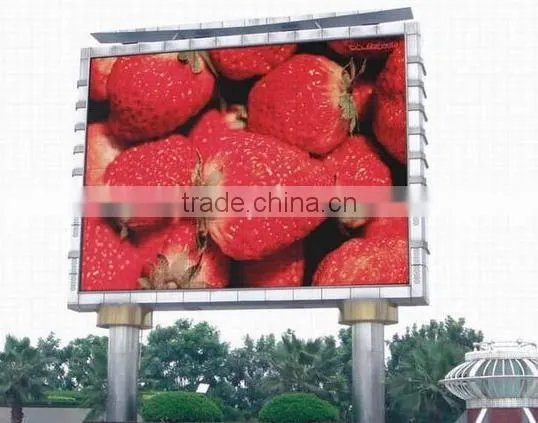

P10 outdoor led display module pictures:
Specification of p10 outdoor led display module:
LED module specification | ||
Module size |
320mm*160mm |
160x160mm |
Pixel pitch |
10mm |
10mm |
Pixels Density |
10,000 dots/m2 |
10,000 dots/m2 |
Pixel configuration |
1R1G1B |
1R1G1B |
Package mode |
SMD3535 |
DIP346 |
Pixel resolution |
32dots(W)*16 dots(H) |
16dots(W)*16 dots(H) |
Max Power |
20W |
18W |
Module thickness |
17.05mm |
18.05MM |
Weight |
0.37kg |
0.35KG |
Drive type |
Constant drive |
Constant drive |
Scan mode |
1/4can |
1/4can |
Port type |
HUB75-A |
HUB75-A |
Brightness of white balance |
6500cd/sqm |
7800cd/sqm |
Other outdoor led display module
p6 outdoor led module
P8 outdoor led module
p16 outdoor led module

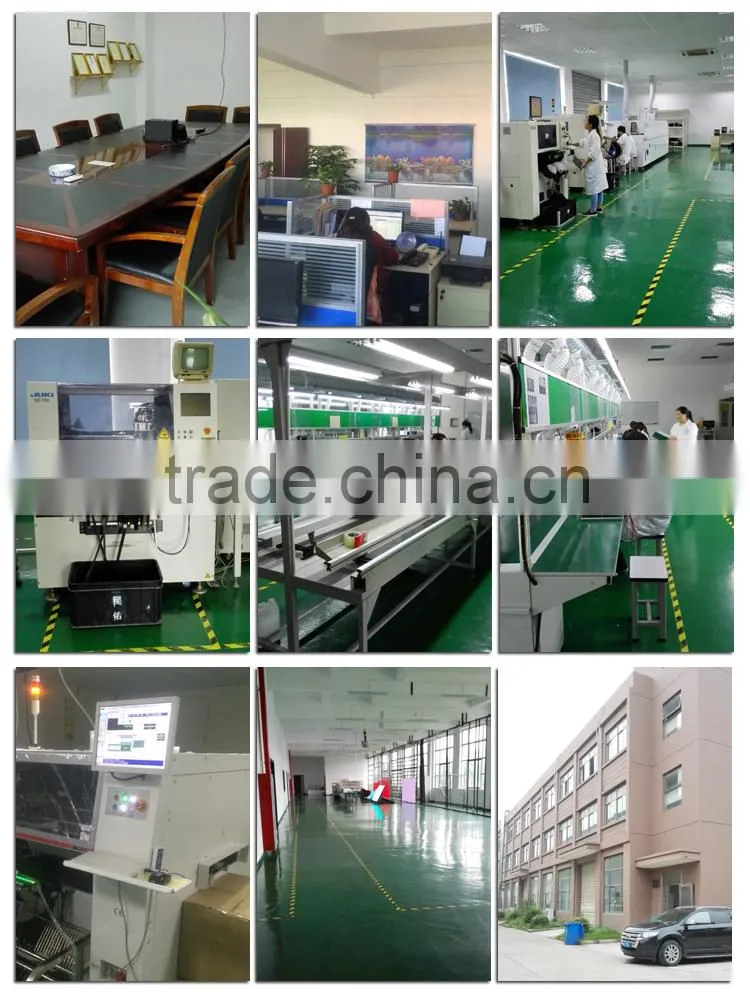

Production line:
Certification:
Package and transport:
Warranty:
1.We guarantee all our display, modules, spare parts (Silan Chip) for three years.
2.We provide technology training for free, which contains the operation and maintenance training of the LED screens in the factory.
3.After warranty , we also can offer you the parts for replacement at our bottom price.
4.After sales, if you have any problem about our product, you can inform us by Email, we will reply you at once when we get it and offer you a good solution to solve the problem.
5.We also could solve problems for you until it recovers well by remote control!
Delivery Time:
1.Delivery time: Accomplish manufacturing within 2~3 weeks after receiving the deposit.
2.Before delivery, we will test the display, and keep it light up for 72 hours, and check all the parts of the display to confirm it is Ok for delivery.
Installation:
1.We can assist the training and technical support for the customer in the factory, if the customer requires so.
2.We could send our engineer to guide the installation for you. But the relevant cost should be paid by your esteemed company.
3.Our technicians will offer CAD Drawing to show how to install the LED Display rightly and fast, of course, if you need.
