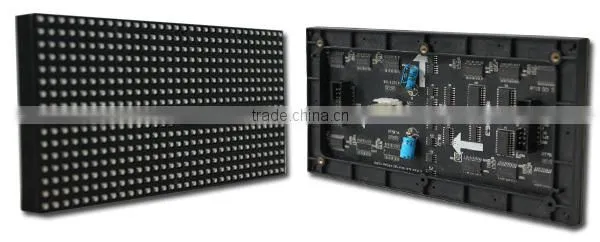

Full Color Indoor Outdoor LED Screen Module
Indoor led screen module:
1. Indoor led screen module adopt SMD 3 in 1 technology application, so that the horizontal and vertical viewing angle LED display up to 140 degrees. Within this range, no change in any of the image angle variation and color.
2. Vivid color performance. Achieve a high degree of consensus full-screen color and brightness
3. Information from a camera, video, DVD, LD, VCD, TV, etc.
4. A variety of file formats, such as MOV, MPG, DAT, AVI, VOB, etc.
5. Can be automatically adjusted or manually adjust the brightness, contrast, saturation
6. Synchronize display with your computer
parameters:
Module |
P2.5 |
P3 |
P4 |
P5 |
P6 |
P7.62 |
P8 |
P10 |
Pixel pitch |
2.5mm |
3mm |
4mm |
5mm |
6mm |
7.62mm |
8mm |
10mm |
Pixel configuration |
1R1G1B |
|||||||
Encapsulation |
SMD |
|||||||
Module size(mm) |
160*80 |
192*96 |
256*128 |
160*160 |
192*192 |
244*122 |
256*128 |
320*160 |
Module resolution (dots) |
64*32 |
64*32 |
64*32 |
32*32 |
32*32 |
32*16 |
32*16 |
32*16 |
Density(dots/sqm) |
160,000 |
111,111 |
62,500 |
40,000 |
27,777 |
17,222 |
15,625 |
10,000 |
Drive mode (scan) |
1/16 |
1/16 |
1/16 |
1/16 |
1/8 |
1/8 |
1/8 |
1/4 |
Brightness (cd /sqm) |
≥800 |
≥1500 |
≥1400 |
≥1500 |
≥1800 |
≥1500 |
≥1500 |
≥1800 |
Module picture:

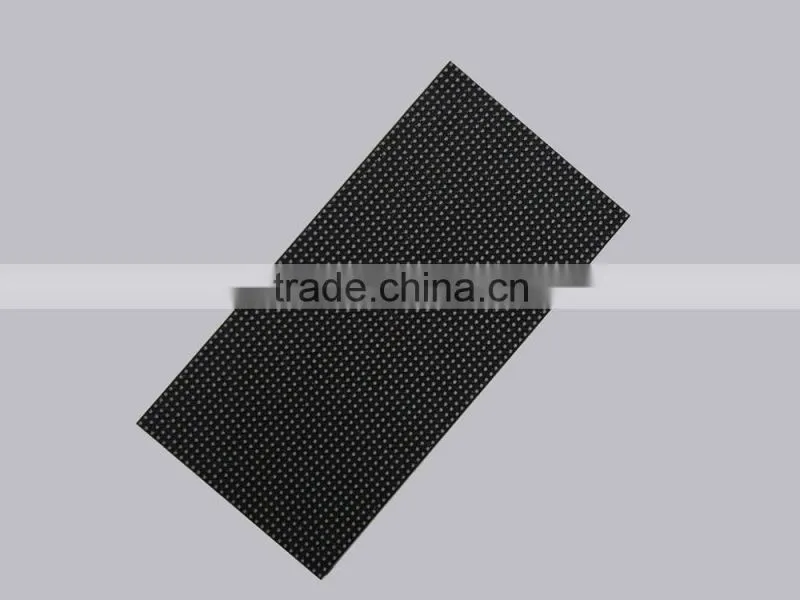

P2.5 LED screen module:

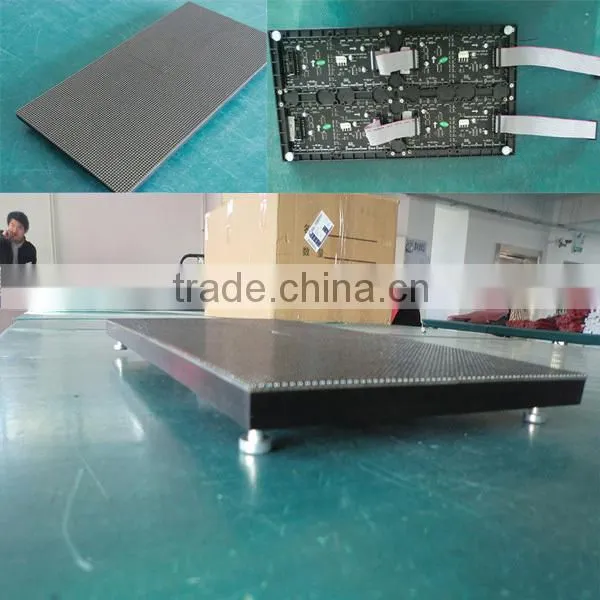

p3 LED Screen Module:

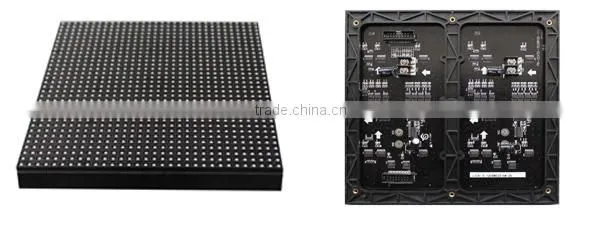

p4 LED Screen Module:

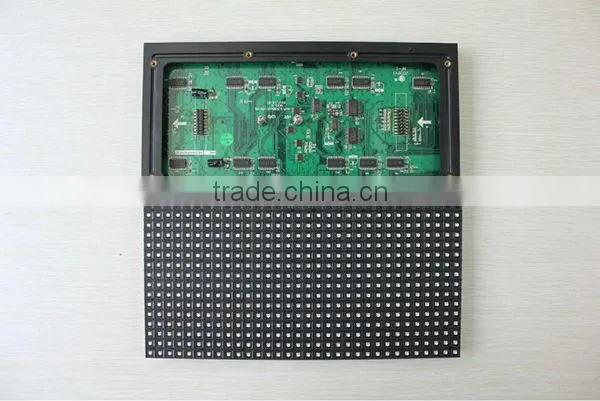

p5 LED Screen Module:

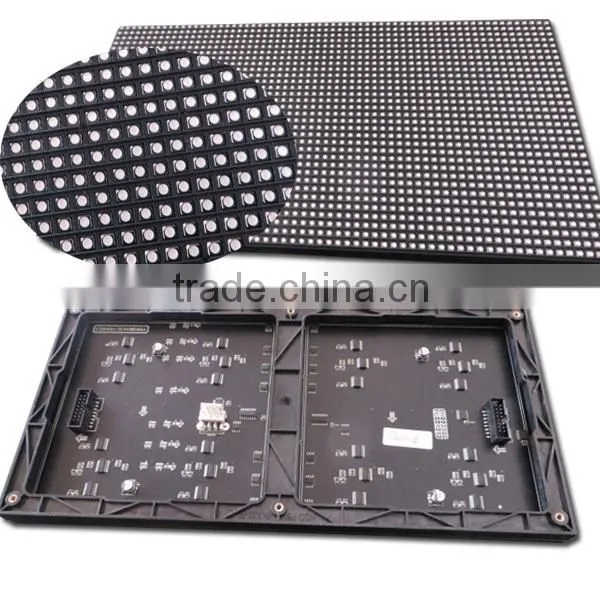

p6 LED Screen Module:

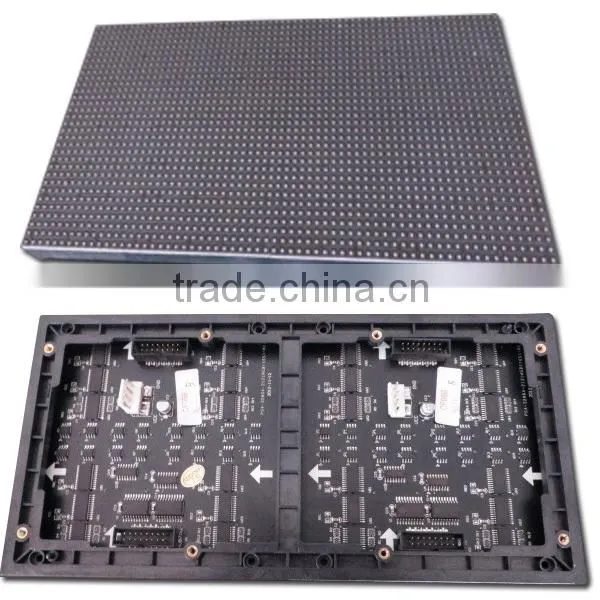

p7.62 LED Screen Module:

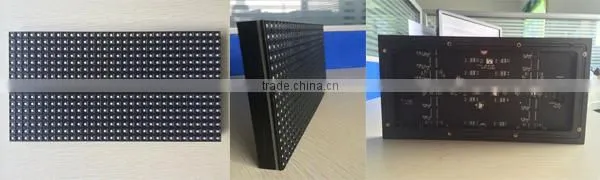

p8 LED Screen Module:
Outdoor led screen module:
parameters:
module |
P6 |
P8 |
P8.2 |
P10 |
P16 |
P20 |
Pixel pitch |
6mm |
8mm |
8.2mm |
10mm |
16mm |
20mm |
Pixel configuration |
1R1G1B |
|||||
Module size(mm) |
192*96 |
256*128 |
262.4*131.2 |
160*160 |
256*256 |
320*160 |
Encapsulation |
SMD |
SMD or DIP |
DIP |
SMD or DIP |
DIP |
DIP |
Module resolution (dots) |
32*16 |
32*16 |
32*16 |
16*16 |
16*16 |
16*8 |
Density(dots/sqm) |
27,777 |
15,628 |
14,872 |
10,000 |
3,906 |
2,500 |
Drive mode (scan) |
1/4 |
Static |
||||
Brightness (cd /sqm) |
≥6500 |
|||||
p6 LED Screen Module:
p8 LED Screen Module:
p10 LED Screen Module:
P16 LED Screen Module:
