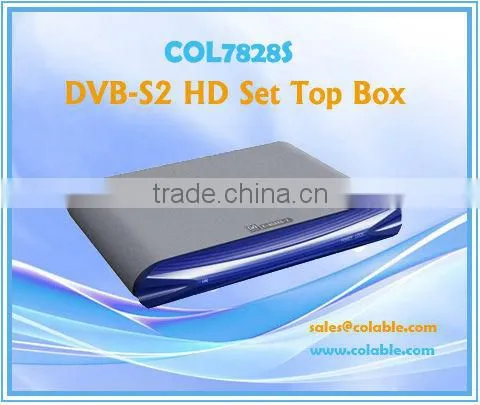

COL7828S Digital TV Set-top Box/DVB-S2 HD Set Top Box

Name: COL7828S Digital TV Set-top Box/DVB-S2 HD Set Top Box
Brand: COLABLE
SKU: 121888023
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

COLABLE

Model Number:

COL7828S

Colable Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chengdu

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name COLABLE

Model Number COL7828S

Specifications

Support HDTV / SDTV MPEG-2/MPEG-4/H.264 decoding
Support DVB-S/S2 digital TV signal modulated in QPSK/8PSK

Outline

ü Fully compliant with the DVB-S2 digital TV reception standards

ü Support HDTV / SDTV MPEG-2/MPEG-4/H.264 decoding

ü Support 480i / 576i/720P/1080i

ü Convenient auto search function

ü Intelligent graphical user interface design

ü Capacity for storing up to 2000 transponders and 4000 channels

ü Support DVB-S/S2 digital TV signal modulated in QPSK/8PSK

ü Input frequency range 950MHz-2150MHz

ü Support DiSEqc1.0/DiSEqc1.2

ü Reception for SCPC/MCPC. C/Ku-Band reception

ü Fast channel selection

ü Favourite Channel Edit, parental lock

ü Variable aspect ratio (4:3, 16:9) 4:3 Pan & Scan or Letter Box modes

ü Support USB 2.0 and OTA software upgrade

ü Support USB 2.0 PVR. MP3, JPG photo playback

Specifications

Chipset and Memory	Main Chipset: CSM1201 220MHz
	Flash: 8M
	DDR Memory: DDR2-2Gbit/667Mbps
Power	Input power: AC100~240V 50/60Hz
	Maximum Power consumption: 25W
	Standby power: ≤1W
Interface	RF signal input: x1
	RF signal loop out: x1
	Video output: RCA x1
	Video output: SCART x1
	HDMI port: x1
	YPbPr port: x1
	Audio output: Stereo RCA x1
	Digital Audio output: COAXIAL/SPDIF x1
	USB2.0 port(for External USB PVR function): x1
Tuner	Receiving Frequency: 950~2150MHz
	Input signal level: -25dBm~-65dBm(75ohm)
	LNB Control: DiSEqC1.0/DiSEqC1.2/22KHz
	LNB Power: 13V/18V(Max 350mA)
	RF Loop out function
Demodulation	Demodulation: QPSK (SCPC/MCPC)/8PSK
Demodulation	Symbol rate: 1.5~45MSPS
Video Decoding	Compliant with: MPEG2 HL/ML, H.264 L4.1
	Aspect ratio: 4:3; 16:9
	Video format: PAL / NTSC / SECAM
	Resolution: 480i / 576i/720P/1080i
Audio Decoding	Compliant with: MPEG-1/2/3, AC-3, HE AAC
	Sampling frequency: 32/44.1/48KHZ
	Frequency Response: 20HZ~20KHZ
	Output Level: Adjustable (600 unbalanced)
