Specifications
ASI to IP Gigabits gatewayASI to IP one-way conversion
simultaneously transmit 12 TS into 12 IP stream
12 asi gateway

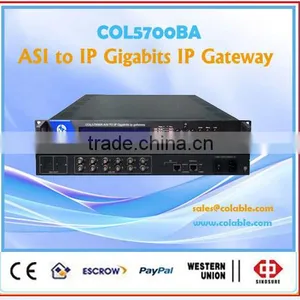

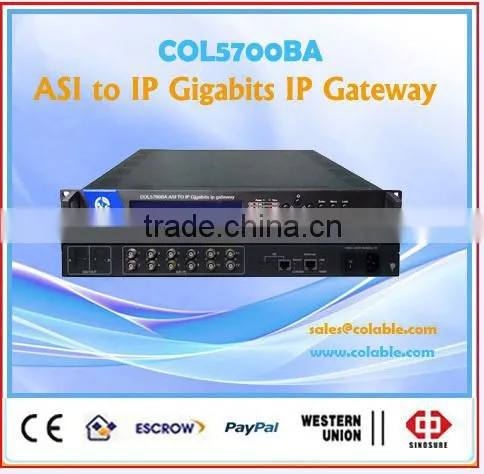

ASI to IP Gigabits gateway
Outline
COL5700BA ASI to IP Gigabits gateway is a head-end interface device which is used for DVB and Ethernet, the program transmitting part can be used as IP stream transmitter, which can transmit the MPEG-2 TS stream in to IP stream, also, it can simultaneously transmit the 12 TS stream into 12 IP stream, and the streams can transmitted through the same gigabits internet interface.
Features
Supports ASI to IP one-way conversion
Supports one GE serial port, and inputs 1Gps data
Supports UDP, unicast and multicast mode
Supports maximum 12 channel ASI to IP conversion channels, and the maximum bit-rate in each channel is 108Mbps, the maximum total bit-rate is 800Mbps
Keyboard and NMS operation
Specifications
Interface | Input | 12 channels ASI input interfaces |
Output | One GE output ports,RJ45 interface | |
Transfer protocol | Input | DVB-ASI |
Output | TS over UDP,unicast and multicast | |
Bit-rate | Max of each channel is 108Mbps Max total bit-rate is 800Mbps | |
General | Dimension (WxLxH) | 482mm×410mm×44mm |
Weight | 4kg | |
Temperature | 0~45°C(working ),-20~80°C(storage) | |
Power supply | 100~240VAC,50/60Hz | |
Power consumption | 20W | |
