1 The main parameter
Model Item |
MG-12WL |
||
Nominal cooling capacity |
50HZ |
kcal/h |
16426 |
60HZ |
19694 |
||
50HZ |
KW |
19.1 |
|
60HZ |
22.9 |
||
Input power |
KW |
10.1 |
|
Power supply |
3PH 380V 50HZ (200V/220V/415V 50HZ/60HZ) |
||
Refrigerant |
Type |
R22 (R404A /R507) |
|
Control mode |
Hermetic Scroll/Pistion |
||
Compressor |
Type |
Piston |
|
Power |
KW |
9 |
|
Condenser |
Type |
Shell and Tube |
|
Cooling water flow |
m3 /h |
4.27 |
|
|
5.12 |
||
Inlet and outlet of pipe diameter |
inch |
1-1/2" |
|
Evaporator |
Type |
Shell and Tube /Stainless Steel Plate |
|
Chilled fluid flow |
M3 /h |
3.28 |
|
3.94 | |||
Inlet and outlet of pipe diameter |
inch |
1-1/2" |
|
Pump |
Power |
KW |
1.1 |
Lift |
m |
20 |
|
Safty Security |
Compressor Superheating protection,High and Low Pressure Protection Switch, Overload Switch,Antifreezing Switch,Delay Protection,Overtemperature Protection |
||
Dimension |
Long |
mm |
1170 |
Width |
mm |
710 |
|
High |
mm |
1200 |
|
Weight |
Kg |
500 |
|

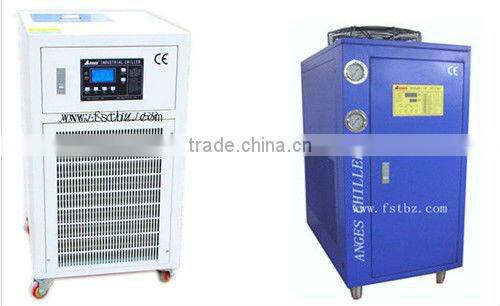

Industrial chiller:
imported new compresors engine ,original schneider electronic parts,stainless stel thick waer-tank-type,installed security protection inside ,low noise ,low electricity comsumption, and long service,apply to welding machine.
2 Sample show-case
chemical/paint drum/barrels/cans, oil barrels/cans, grease oil cans, food cans, adhesive cans, garbage basket, gasoline cans, spray cans,coffee, tea, biscuit can etc.
3 Customers visit
We have customers all over the world
Our machines are exported all over the world, the main market is in Asia, South and North
America, and Africa.

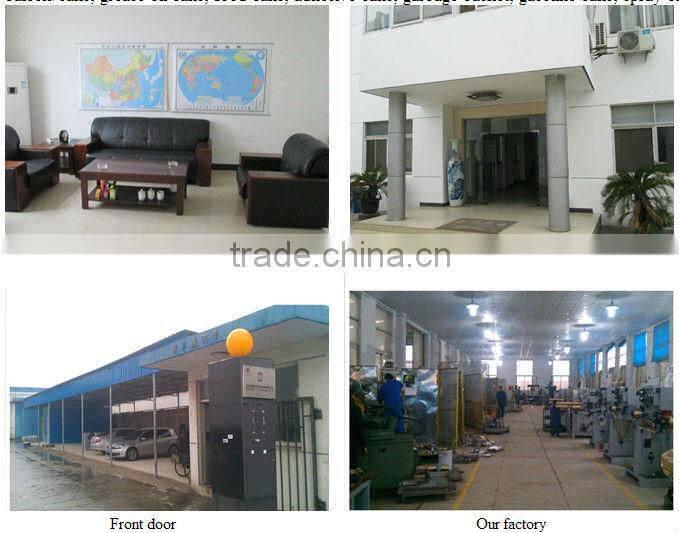

4 About our company
Suzhou First Packing Machinery Co,.Ltd
Suzhou First Packing Machinery Co.Ltd was founded in 1997. we specialize in various of tin cans making machines/production line, such as round/square can semi-automatic production line; Conical closed/open barrel can production line, we also provide various two-piece and three-piece can production line.
Our Advantage:
After service:after machine arrived,our company will send engineers to install and debug.one
year warranty for free.
Electrical component:adopt world famous brand:MITSUBISH.OMRON,SCHNEIDER,
LG and SEMIKRON.ensure quality
Package:plywood
